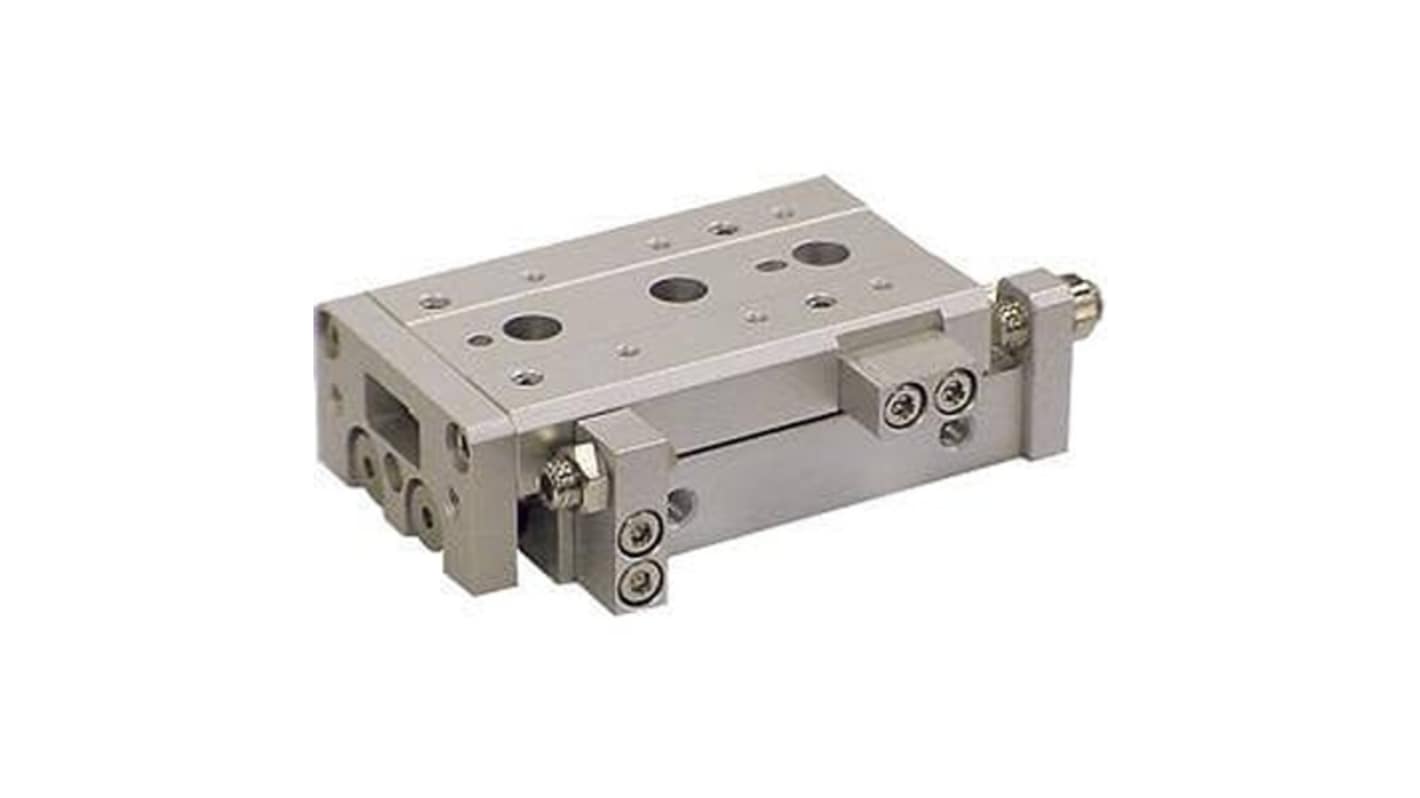

SMC Pneumatic Guided Cylinder - MXS16L-20 16 mm Bore, MXS Series, 20 mm Double Acting Acting
- RS Stock No.:
- 369-200
- Mfr. Part No.:
- MXS16L-20
- Brand:
- SMC
Subtotal (1 unit)*
£332.15
(exc. VAT)
£398.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £332.15 |
*price indicative
- RS Stock No.:
- 369-200
- Mfr. Part No.:
- MXS16L-20
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | MXS | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Body Material | Aluminium Alloy | |
| Cushioning Type | Rubber Bumper | |
| Minimum Operating Temperature | -10°C | |
| Rod Type | Dual Piston Rod | |
| Maximum Piston Speed | 500mm/s | |
| Guide Type | Linear | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Weight | 0.57kg | |
| Width | 36.5mm | |
| Length | 87mm | |
| Stroke Length | 20mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series MXS | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.7 Mpa | ||
Body Material Aluminium Alloy | ||
Cushioning Type Rubber Bumper | ||
Minimum Operating Temperature -10°C | ||
Rod Type Dual Piston Rod | ||
Maximum Piston Speed 500mm/s | ||
Guide Type Linear | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Weight 0.57kg | ||
Width 36.5mm | ||
Length 87mm | ||
Stroke Length 20mm | ||
- COO (Country of Origin):
- JP
The SMC Guided Cylinder designed for precision motion control, featuring an integrated slide table and symmetric construction for balanced operation. Its compact and durable design makes it suitable for industrial applications requiring accuracy in confined spaces.
Cross roller bearings ensuring precise and rigid motion
Dual rod mechanism delivering consistent functionality
Robust construction built to endure demanding industrial conditions
