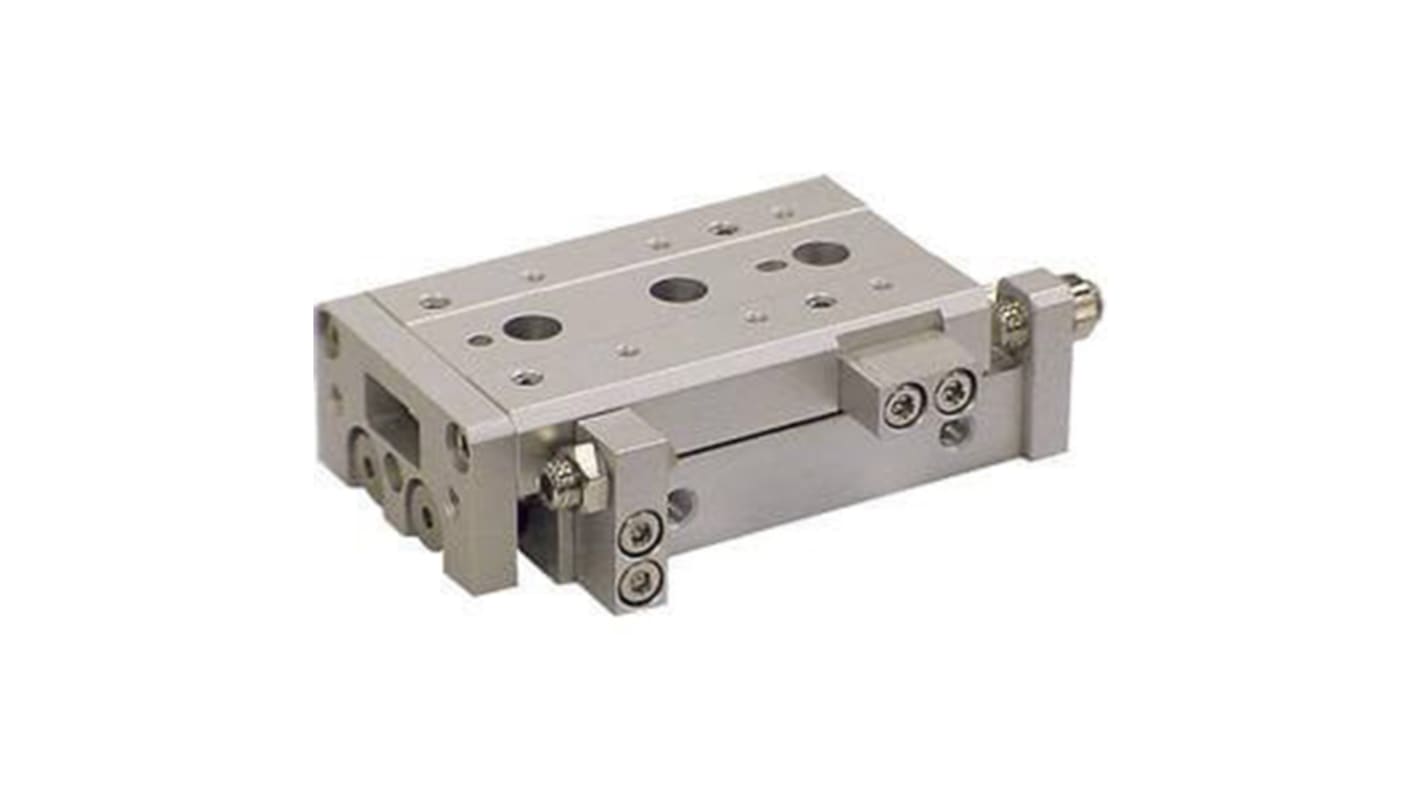

SMC Pneumatic Guided Cylinder - 16 mm Bore, MXS Series, 50 mm Double Acting Acting
- RS Stock No.:
- 237-3613
- Mfr. Part No.:
- MXS16L-50
- Brand:
- SMC
Subtotal (1 unit)*
£457.67
(exc. VAT)
£549.20
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £457.67 |
*price indicative
- RS Stock No.:
- 237-3613
- Mfr. Part No.:
- MXS16L-50
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | MXS | |
| Action Type | Double Acting | |
| Mount Type | Through Hole | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Cushioning Type | Rubber | |
| Body Material | Aluminium Alloy | |
| Piston Rod Thread Size | M5 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Piston Speed | 500mm/s | |
| Guide Type | Slide Bearing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Weight | 760g | |
| Stroke Length | 50mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series MXS | ||
Action Type Double Acting | ||
Mount Type Through Hole | ||
Maximum Operating Pressure 0.7 Mpa | ||
Cushioning Type Rubber | ||
Body Material Aluminium Alloy | ||
Piston Rod Thread Size M5 | ||
Minimum Operating Temperature -10°C | ||
Maximum Piston Speed 500mm/s | ||
Guide Type Slide Bearing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Weight 760g | ||
Stroke Length 50mm | ||
- COO (Country of Origin):
- JP
The SMC MXS series air slide table has dual piston rod which ensures twice the thrust of the cylinder. It has bore size of 12 mm. It has is suited for precision assembly application. The body is made from hard anodised aluminium alloy.
Axial mounting is possible
Flush mountable auto switches
Mounting is possible in 3 direction
Improved work piece mounting repeatability
