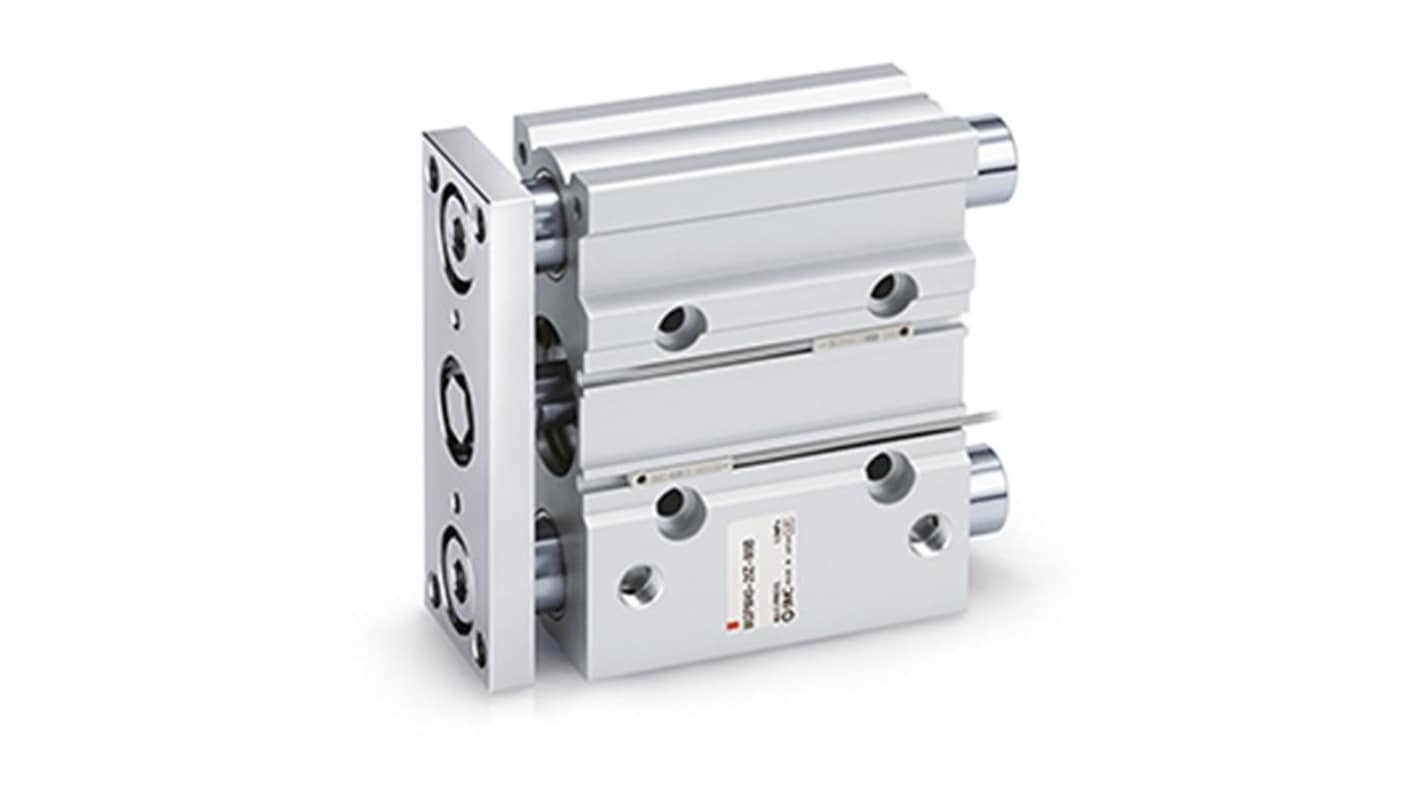

SMC Pneumatic Guided Cylinder - MGPM63TF-100Z 63 mm Bore, MGP Series, 100 mm Double Acting Acting
- RS Stock No.:
- 368-604
- Mfr. Part No.:
- MGPM63TF-100Z
- Brand:
- SMC
Subtotal (1 unit)*
£392.41
(exc. VAT)
£470.89
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £392.41 |
*price indicative
- RS Stock No.:
- 368-604
- Mfr. Part No.:
- MGPM63TF-100Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 63mm | |
| Series | MGP | |
| Action Type | Double Acting | |
| Mount Type | Top Mount, Side, Bottom | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Aluminium Alloy | |
| Cushioning Type | Rubber Cushioning at Both Ends | |
| Piston Rod Thread Standard | G | |
| Guide Type | Slide Bearing | |
| Rod Type | Single | |
| Minimum Operating Temperature | -10°C | |
| Maximum Piston Speed | 500mm/s | |
| Maximum Operating Temperature | 60°C | |
| Weight | 5.67kg | |
| Standards/Approvals | RoHS | |
| Stroke Length | 100mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 63mm | ||
Series MGP | ||
Action Type Double Acting | ||
Mount Type Top Mount, Side, Bottom | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Aluminium Alloy | ||
Cushioning Type Rubber Cushioning at Both Ends | ||
Piston Rod Thread Standard G | ||
Guide Type Slide Bearing | ||
Rod Type Single | ||
Minimum Operating Temperature -10°C | ||
Maximum Piston Speed 500mm/s | ||
Maximum Operating Temperature 60°C | ||
Weight 5.67kg | ||
Standards/Approvals RoHS | ||
Stroke Length 100mm | ||
SMC MGP Series Compact Guide Cylinder, 63mm Bore size, 100mm Stroke Length - MGPM63TF-100Z
This Compact guide cylinder provides guided linear motion for automation and mechanical systems where controlled, constrained reciprocation is required. Designed for double-acting operation, it integrates slide-bearing guidance and is suited to installations needing side, TOP or bottom mounting. Its construction from an aluminium alloy offers a balance of structural strength and reduced mass for dynamic applications.
Features and Benefits:
• 1MPa rated maximum operating pressure enabling robust actuation
• 500mm/s maximum piston speed supporting high-speed cycles
• Rubber bumpers at each end for reduced impact and quieter stops
• Slide bearing guide for precise lateral restraint and stability
• Single rod with G-threaded piston rod for straightforward attachment
• RoHS-compliant materials meeting environmental substance limits
• 500mm/s maximum piston speed supporting high-speed cycles
• Rubber bumpers at each end for reduced impact and quieter stops
• Slide bearing guide for precise lateral restraint and stability
• Single rod with G-threaded piston rod for straightforward attachment
• RoHS-compliant materials meeting environmental substance limits
Applications
• Suitable for pick-and-place modules in automation lines
• Ideal for tool positioning in assembly fixtures
• Used for slide guidance in inspection equipment
• Can be used for end-of-line product transfer systems
• Used with servo-driven feed units requiring guided strokes
• Ideal for tool positioning in assembly fixtures
• Used for slide guidance in inspection equipment
• Can be used for end-of-line product transfer systems
• Used with servo-driven feed units requiring guided strokes
What temperature range can it operate within safely?
It functions between -10°C and 60°C, allowing use across standard shop-floor climates and mild temperature-controlled enclosures.
How long is the available travel for linear movement?
The actuator provides a 100mm stroke length for each actuation cycle.
What mounting orientations are possible for installation?
It can be mounted from the top, side or bottom to suit different machine layouts and space constraints.
What is the unit mass for handling and support calculations?
The device has a mass of 5.67 kg for use when designing supports or robotic end-of-arm tooling.
