SMC Pneumatic Guided Cylinder - 63 mm Bore, MGP Series, 125 mm Double Acting Acting

View all Pneumatic Guided Cylinders

Subtotal (1 unit)*

£487.39

(exc. VAT)

£584.87

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£487.39

*price indicative

RS Stock No.:
237-3548
Mfr. Part No.:
MGPM63TF-125Z
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Product Type

Pneumatic Guided Cylinder

Bore Size

63mm

Series

MGP

Action Type

Double Acting

Maximum Operating Pressure

1 Mpa

Cushioning Type

Rubber Bumper

Body Material

Aluminium Alloy

Rod Type

Single

Guide Type

Slide Bearing

Piston Rod Thread Standard

G

Maximum Piston Speed

500mm/s

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Weight

6.69kg

Standards/Approvals

No

Stroke Length

125mm

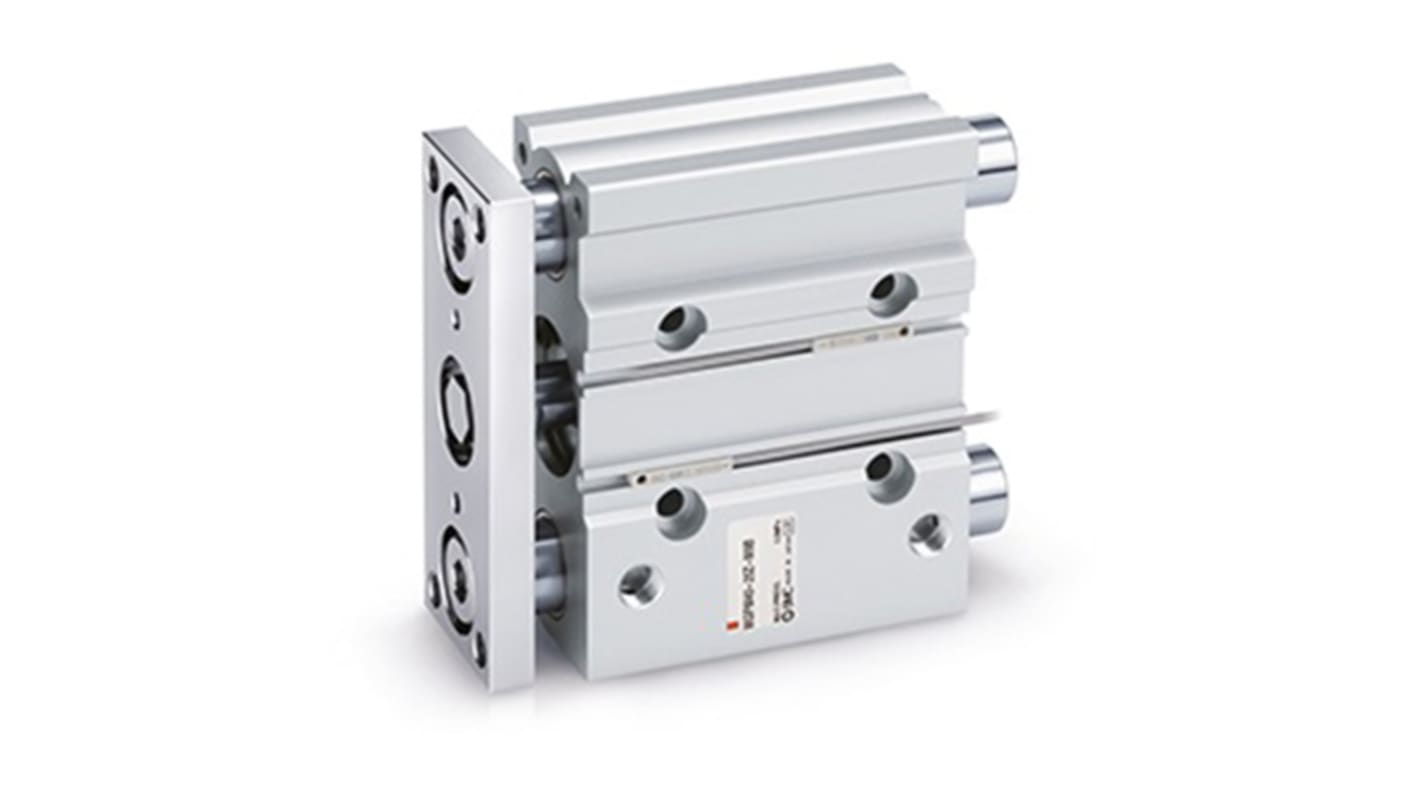

SMC MGP Series Compact Guide Cylinder, 63mm Bore size, 125mm Stroke Length - MGPM63TF-125Z


This Compact guide cylinder is a guided pneumatic actuator designed for linear motion control in industrial automation. It provides guided reciprocating movement with a single rod and is built for environments where controlled, guided strokes are required at moderate operating pressures and temperatures.

Features and Benefits:


• Aluminium alloy body reduces assembly load and mass
• Slide bearing guide delivers stable lateral load support
• Double-acting operation enables bidirectional force control
• Rubber bumpers on both ends lessen impact and noise
• Maximum operating pressure 1 MPa allows consistent force output
• Maximum piston speed 500 mm/s supports high-speed cycles

Applications


• Suitable for pick-and-place machines requiring guided travel
• Ideal for linear positioning in electronics assembly fixtures
• Used with conveyors for side-thrust stabilisation
• Can be used for component transfer in mechanical assembly lines
• Suitable for end-of-arm tooling where guided motion is needed

What temperature range will it operate within reliably?


It functions across an ambient range from -10°C to 60°C, accommodating typical factory conditions.

How long is the travel available for installation planning?


The unit provides a 125mm stroke for integration into short to medium travel applications.

What mounting and rod Interface should I expect?


The piston rod uses a G-thread standard for attachments and accepts common rod-end fittings.

How heavy is the actuator for machine balance calculations?


The cylinder has a mass of 6.69 kg to factor into dynamic and static load assessments.
