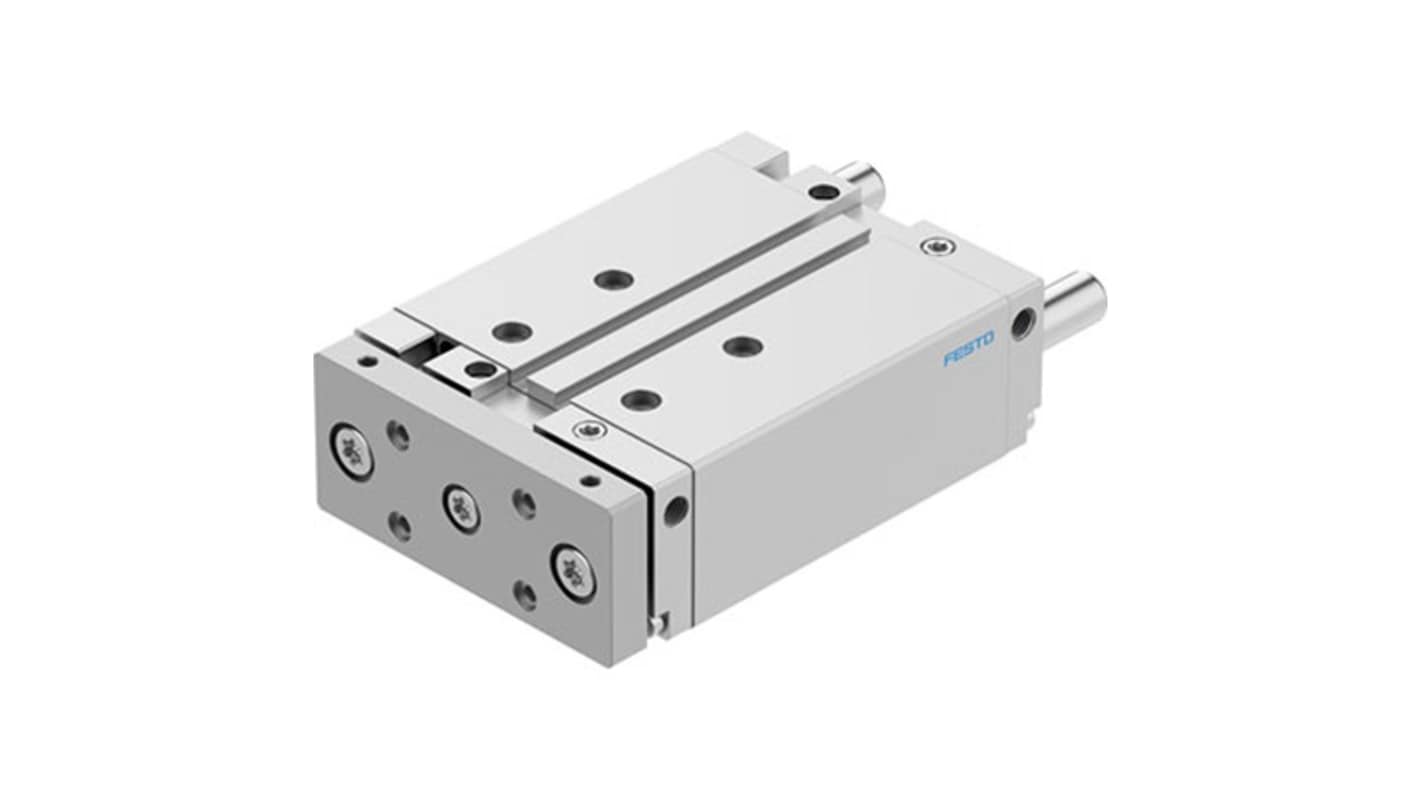

Festo Pneumatic Guided Cylinder - DFM-40-80-B-PPV-A-GF 40 mm Bore, DFM Series, 80 mm Double Acting Acting
- RS Stock No.:
- 344-428
- Mfr. Part No.:
- DFM-40-80-B-PPV-A-GF
- Brand:
- Festo
Subtotal (1 unit)*
£553.17
(exc. VAT)
£663.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £553.17 |
*price indicative
- RS Stock No.:
- 344-428
- Mfr. Part No.:
- DFM-40-80-B-PPV-A-GF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 40mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Guide Type | Plain Bearing | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Standard | BSPP | |
| Piston Rod Thread Size | 1/8 in G | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Stroke Length | 80mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 40mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Guide Type Plain Bearing | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Standard BSPP | ||
Piston Rod Thread Size 1/8 in G | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Stroke Length 80mm | ||
- COO (Country of Origin):
- DE
The Festo guided drive combines precision engineering with robust functionality, making it an exceptional choice for demanding applications. Designed for versatility, it features a plain-bearing guide that ensures smooth operation under various conditions. With its double-acting mode, this cylinder guarantees efficient performance while utilizing compressed air in line with ISO standards. The integrated pneumatic cushioning, adjustable at both ends, adds an extra layer of reliability, protecting both the cylinder and the system from potential damage during operation. Suitable for a wide temperature range and equipped to handle moderate corrosion stress, this product is ideal for environments where both durability and precision are essential.
Ideal for a wide range of ambient temperatures enhancing operational flexibility
Double-acting operation promotes efficiency in cyclical movements
Adjustable pneumatic cushioning reduces wear and tear for prolonged life
Plain-bearing guide ensures reliable and smooth linear motion
Constructed from RoHS-compliant materials for eco-friendly operations
High-alloy stainless steel piston rod for superior resistance to wear
