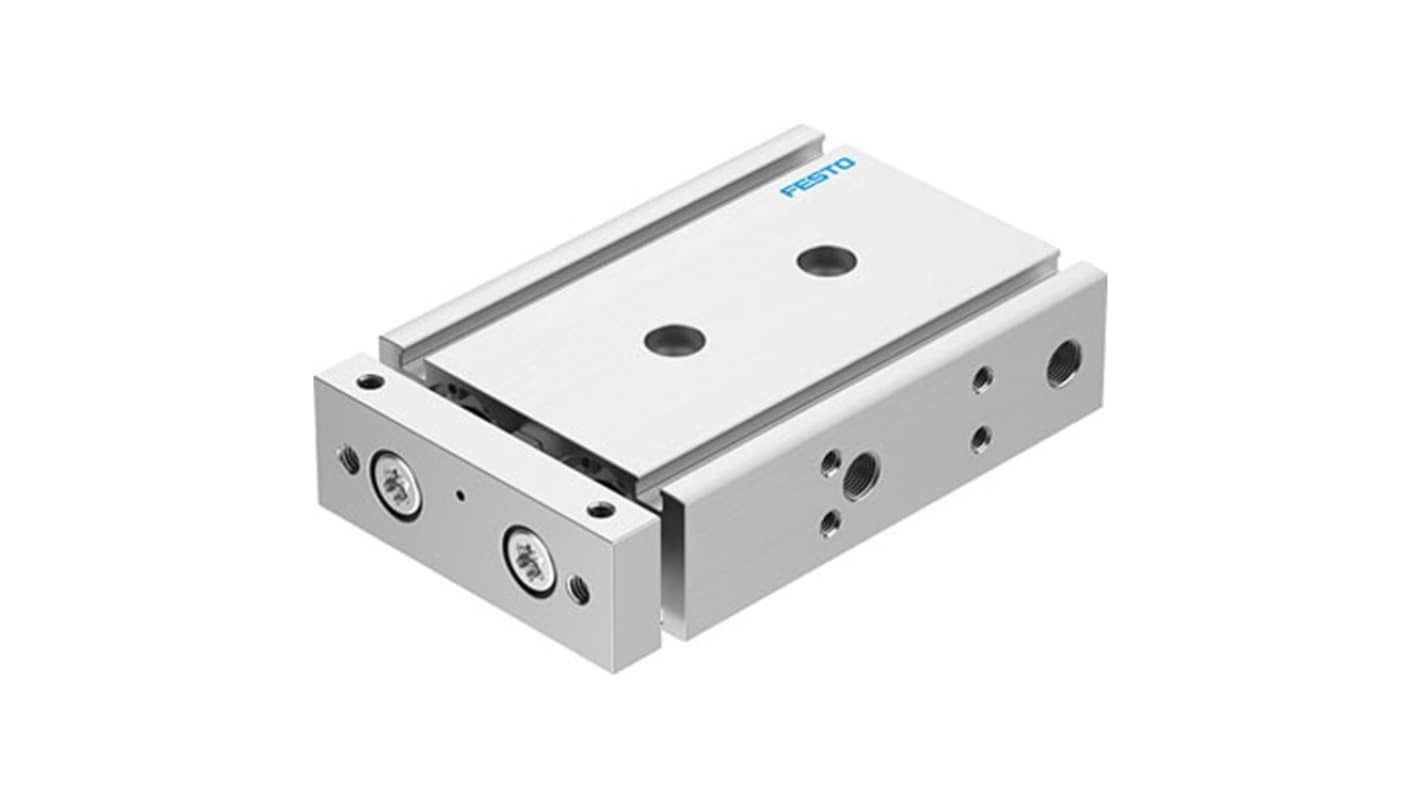

Festo Pneumatic Guided Cylinder - 8100640 25mm Bore, DGTZ Series, 40 mm Double Acting Acting
- RS Stock No.:
- 343-857
- Mfr. Part No.:
- DGTZ-GF-25-40-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£311.51
(exc. VAT)
£373.81
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £311.51 |
*price indicative
- RS Stock No.:
- 343-857
- Mfr. Part No.:
- DGTZ-GF-25-40-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Diameter | 25mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Guide Type | Plain Bearing | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 78mm | |
| Weight | 775g | |
| Height | 28mm | |
| Standards/Approvals | Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364 zone III | |
| Length | 88mm | |
| Stroke Length | 40mm | |
| Model Number | 8100640 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Diameter 25mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Cushioning Type Elastic | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Guide Type Plain Bearing | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Width 78mm | ||
Weight 775g | ||
Height 28mm | ||
Standards/Approvals Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364 zone III | ||
Length 88mm | ||
Stroke Length 40mm | ||
Model Number 8100640 | ||
- COO (Country of Origin):
- CN
The Festo Twin-cylinder actuator is engineered for precision and reliability in automated systems. The seamless operation of this double-acting unit ensures optimal performance in a variety of environments, making it ideal for applications that require both efficiency and versatility. Its robust construction with corrosion-resistant materials guarantees durability, while the adjustable cushioning allows for smooth and controlled movements. This actuator is perfect for integrating into systems where space is at a premium, yet strength is a necessity, ensuring that every task is executed effortlessly.
Double acting operation for enhanced performance in diverse tasks
Adjustable end position cushioning optimises system efficiency and component longevity
Plain bearing guide for consistent and reliable movement
Corrosion resistant materials ensure prolonged service life in challenging conditions
Compact design suitable for confined installation spaces
