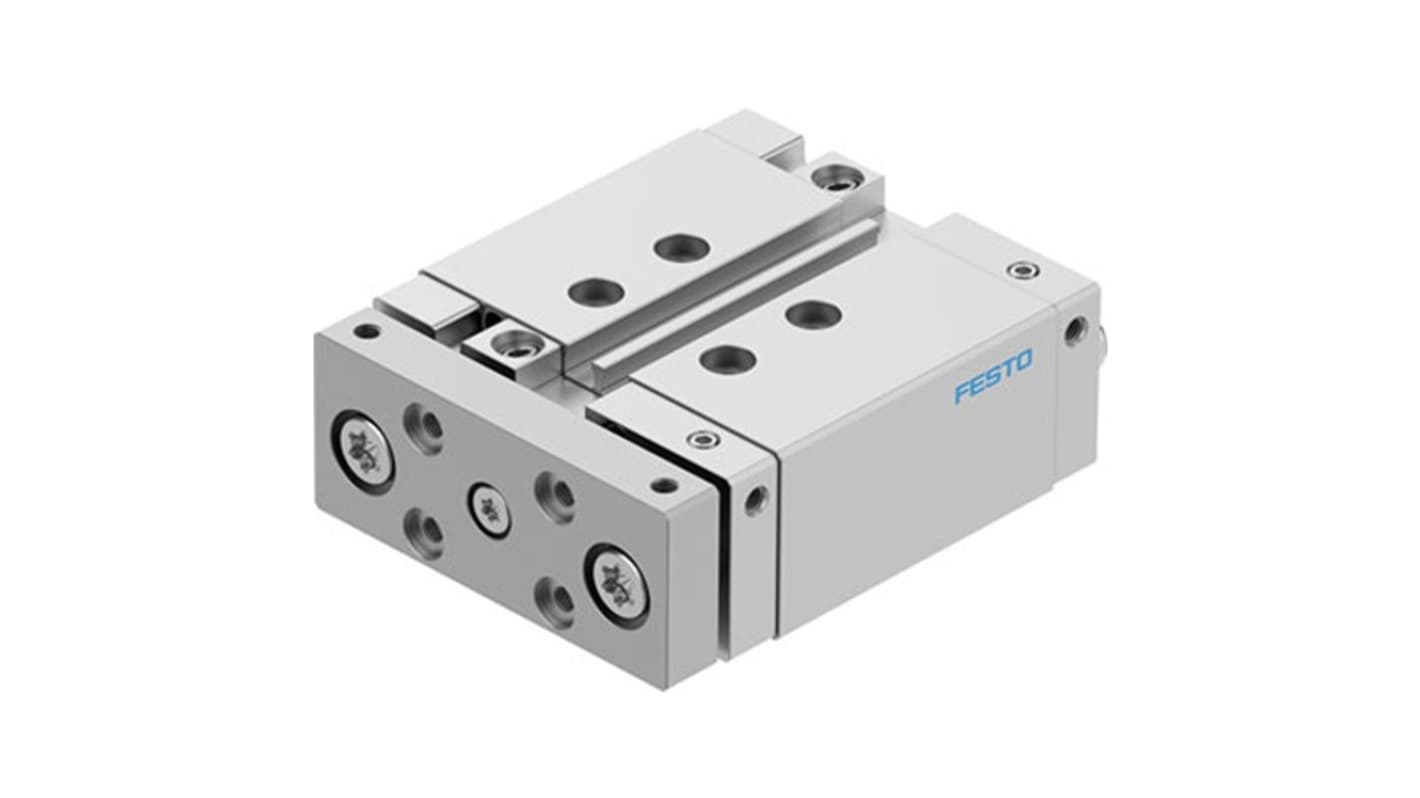

Festo Pneumatic Guided Cylinder - DFM-20-25-B-PPV-A-GF 20 mm Bore, DFM Series, 25 mm Double Acting Acting
- RS Stock No.:
- 343-583
- Mfr. Part No.:
- DFM-20-25-B-PPV-A-GF
- Brand:
- Festo
Subtotal (1 unit)*
£344.05
(exc. VAT)
£412.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £344.05 |
*price indicative
- RS Stock No.:
- 343-583
- Mfr. Part No.:
- DFM-20-25-B-PPV-A-GF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 20mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Wrought Aluminium Alloy | |
| Minimum Operating Temperature | -20°C | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Size | M5 | |
| Piston Rod Thread Standard | Metric | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Stroke Length | 25mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 20mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Wrought Aluminium Alloy | ||
Minimum Operating Temperature -20°C | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Size M5 | ||
Piston Rod Thread Standard Metric | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Stroke Length 25mm | ||
- COO (Country of Origin):
- DE
The Festo Guided drive is designed for precision and reliability in pneumatic applications. With a robust design that features both pneumatic cushioning and adjustable mounting positions, this drive excels in environments that demand versatility and durability. Its plain-bearing guide enhances movement accuracy, while the ability to operate under varying pressures ensures optimal performance. Built with high-quality materials, including aluminium alloys and stainless steel, this drive is well-suited for a range of operational conditions. Compliant with industry standards, it assures users of dependable functionality, making it an excellent choice for automation and manufacturing processes.
Double-acting operation ensures consistent performance
Adjustable pneumatic cushioning enhances operational safety
Proximity switch position detection streamlines automation
Corrosion resistance class 2 provides durability in demanding environments
Cleanroom classification supports applications requiring stringent hygiene standards
Lubricated operation capability extends service life and reliability
