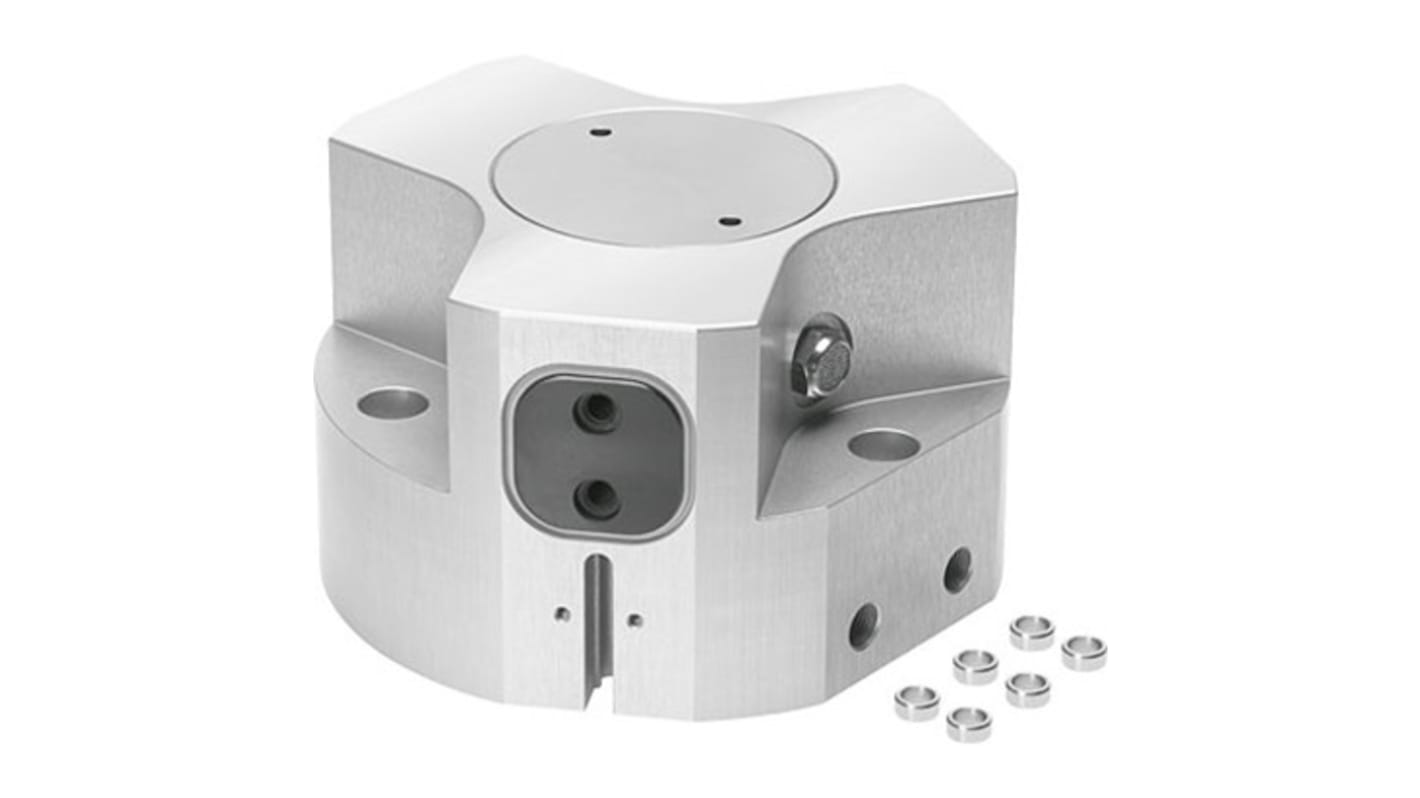

Festo 3 Finger Double Acting Action Pneumatic Gripper, HGDD-80-A, Parallel Gripping Type
- RS Stock No.:
- 281-1377
- Mfr. Part No.:
- HGDD-80-A
- Brand:
- Festo
Subtotal (1 unit)*
£1,585.16
(exc. VAT)
£1,902.19
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,585.16 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 281-1377
- Mfr. Part No.:
- HGDD-80-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 3 | |
| Gripping Type | Parallel | |
| Stroke Length | 12mm | |
| Action Type | Double Acting | |
| Series | HGDD | |
| Maximum Operating Pressure | 8 bar | |
| Weight | 4788g | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Better World Product | Yes | |
| Better World Claim | Repairable by the End User | |
| Maximum Operating Frequency | 4Hz | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 3 | ||
Gripping Type Parallel | ||
Stroke Length 12mm | ||
Action Type Double Acting | ||
Series HGDD | ||
Maximum Operating Pressure 8 bar | ||
Weight 4788g | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Better World Product Yes | ||
Better World Claim Repairable by the End User | ||
Maximum Operating Frequency 4Hz | ||
The Festo Three-point gripper is fully sealed grippers for harsh environments and offers precise gripping with centric movements despite high torque loads. It has single-acting variant or with gripping force backup, normally open (NO) or normally closed (
Double acting operation
Position detection via proximity switch
Exterior and interior gripping possible
