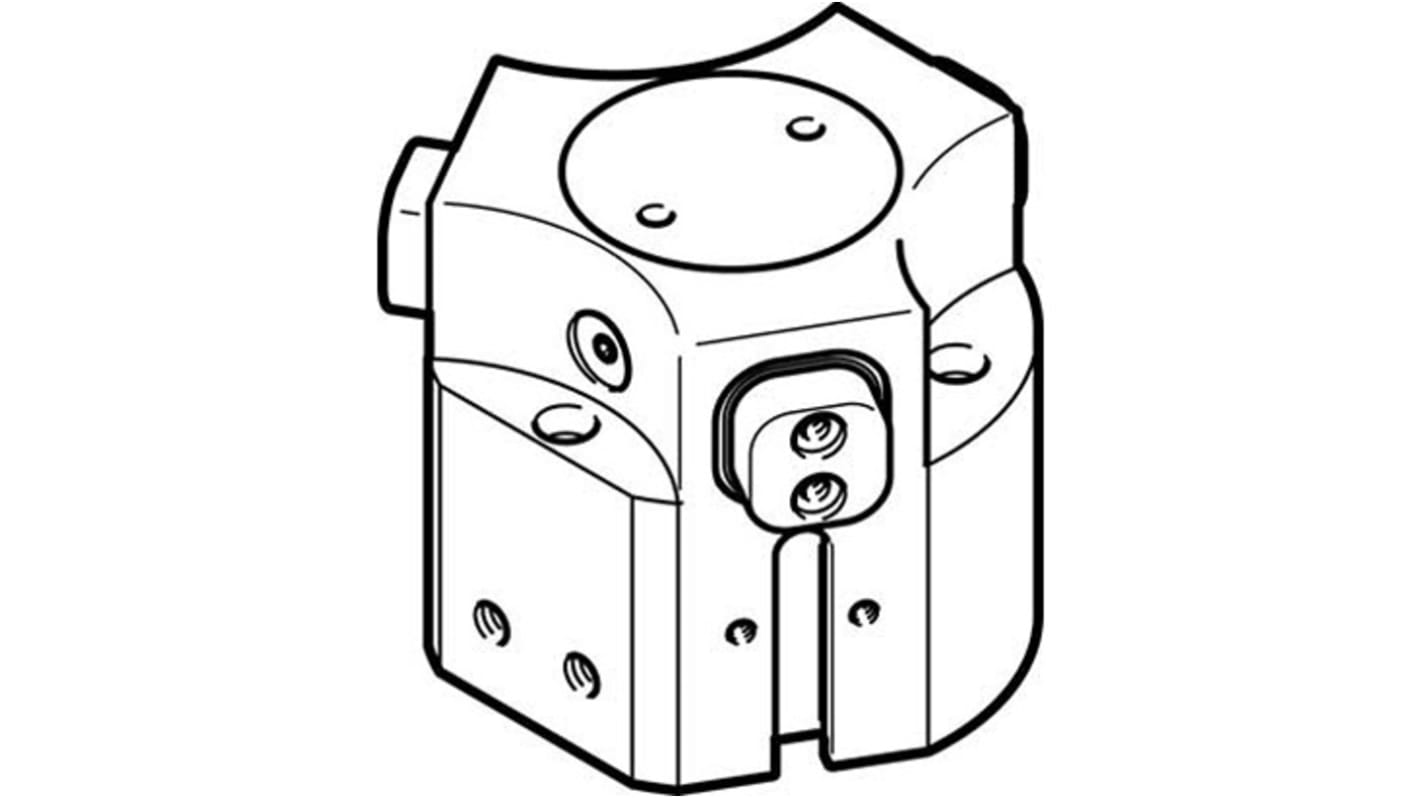

Festo 3 Finger Double Acting Action Pneumatic Gripper, HGDD-40-A-G1, Parallel Gripping Type
- RS Stock No.:
- 281-1369
- Mfr. Part No.:
- HGDD-40-A-G1
- Brand:
- Festo
Subtotal (1 unit)*
£1,211.64
(exc. VAT)
£1,453.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,211.64 |
*price indicative
- RS Stock No.:
- 281-1369
- Mfr. Part No.:
- HGDD-40-A-G1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 3 | |
| Gripping Type | Parallel | |
| Action Type | Double Acting | |
| Stroke Length | 6mm | |
| Series | HGDD | |
| Maximum Operating Pressure | 8 bar | |
| Weight | 775g | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Maximum Operating Frequency | 4Hz | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 3 | ||
Gripping Type Parallel | ||
Action Type Double Acting | ||
Stroke Length 6mm | ||
Series HGDD | ||
Maximum Operating Pressure 8 bar | ||
Weight 775g | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Maximum Operating Frequency 4Hz | ||
The Festo Three-point gripper is fully sealed grippers for harsh environments and offers precise gripping with centric movements despite high torque loads. It has single-acting variant or with gripping force backup, normally open (NO) or normally closed (
Double acting operation
Position detection via proximity switch
Exterior and interior gripping possible
