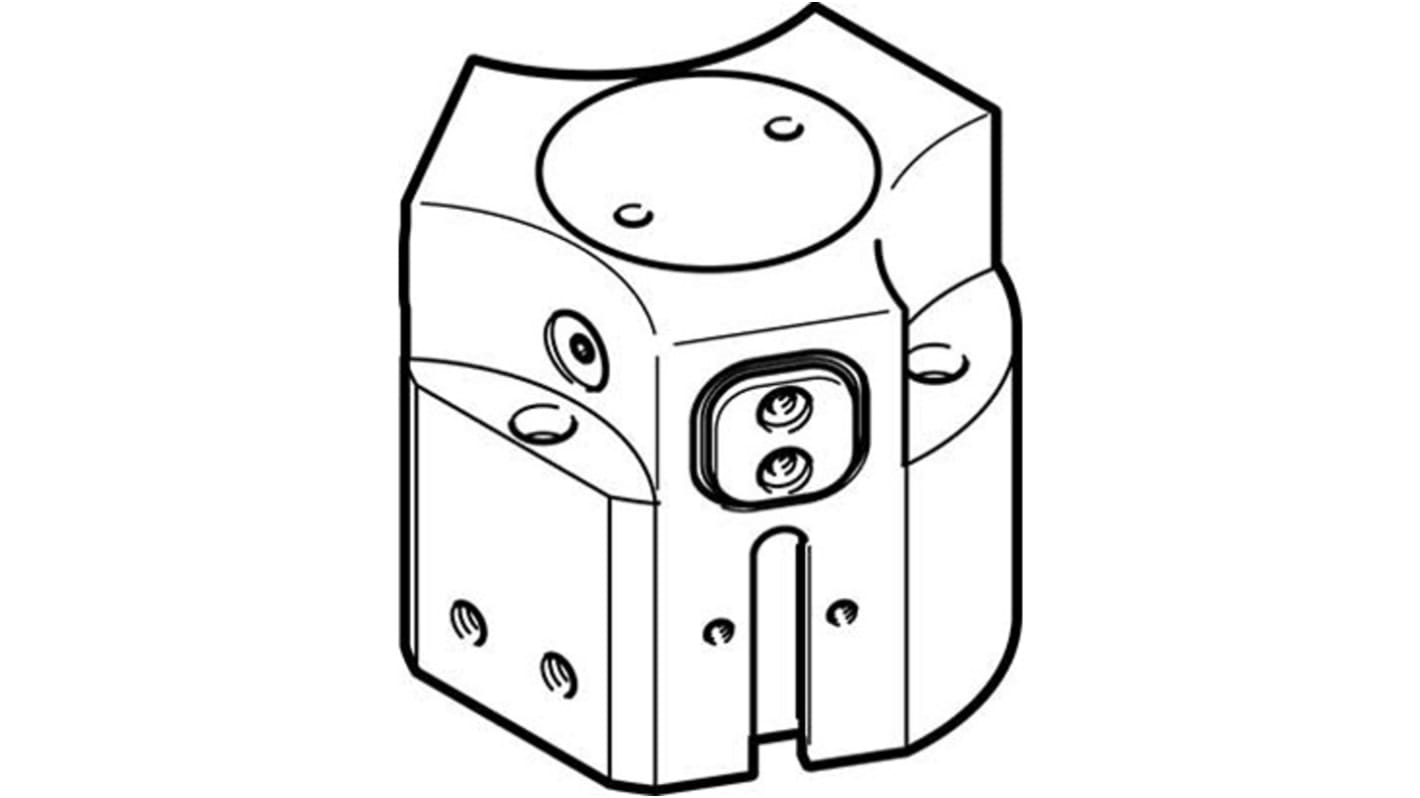

Festo 3 Finger Double Acting Action Pneumatic Gripper, HGDD-35-A-G2, Parallel Gripping Type
- RS Stock No.:
- 281-1367
- Mfr. Part No.:
- HGDD-35-A-G2
- Brand:
- Festo
Subtotal (1 unit)*
£1,102.39
(exc. VAT)
£1,322.87
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,102.39 |
*price indicative
- RS Stock No.:
- 281-1367
- Mfr. Part No.:
- HGDD-35-A-G2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 3 | |
| Gripping Type | Parallel | |
| Stroke Length | 4mm | |
| Action Type | Double Acting | |
| Series | HGDD | |
| Maximum Operating Pressure | 8 bar | |
| Weight | 370g | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Maximum Operating Frequency | 4Hz | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 3 | ||
Gripping Type Parallel | ||
Stroke Length 4mm | ||
Action Type Double Acting | ||
Series HGDD | ||
Maximum Operating Pressure 8 bar | ||
Weight 370g | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Maximum Operating Frequency 4Hz | ||
- COO (Country of Origin):
- DE
The Festo Three point gripper operates in a double acting mode. The gripper employs a wedge shaped drive design for optimal force transmission. The gripper utilizes force pilot operation for precise and controlled motion sequences. The cover cap is made f
RoHS compliant
Moderate corrosion stress
Lubricated operation possible
Compressed air operating medium
