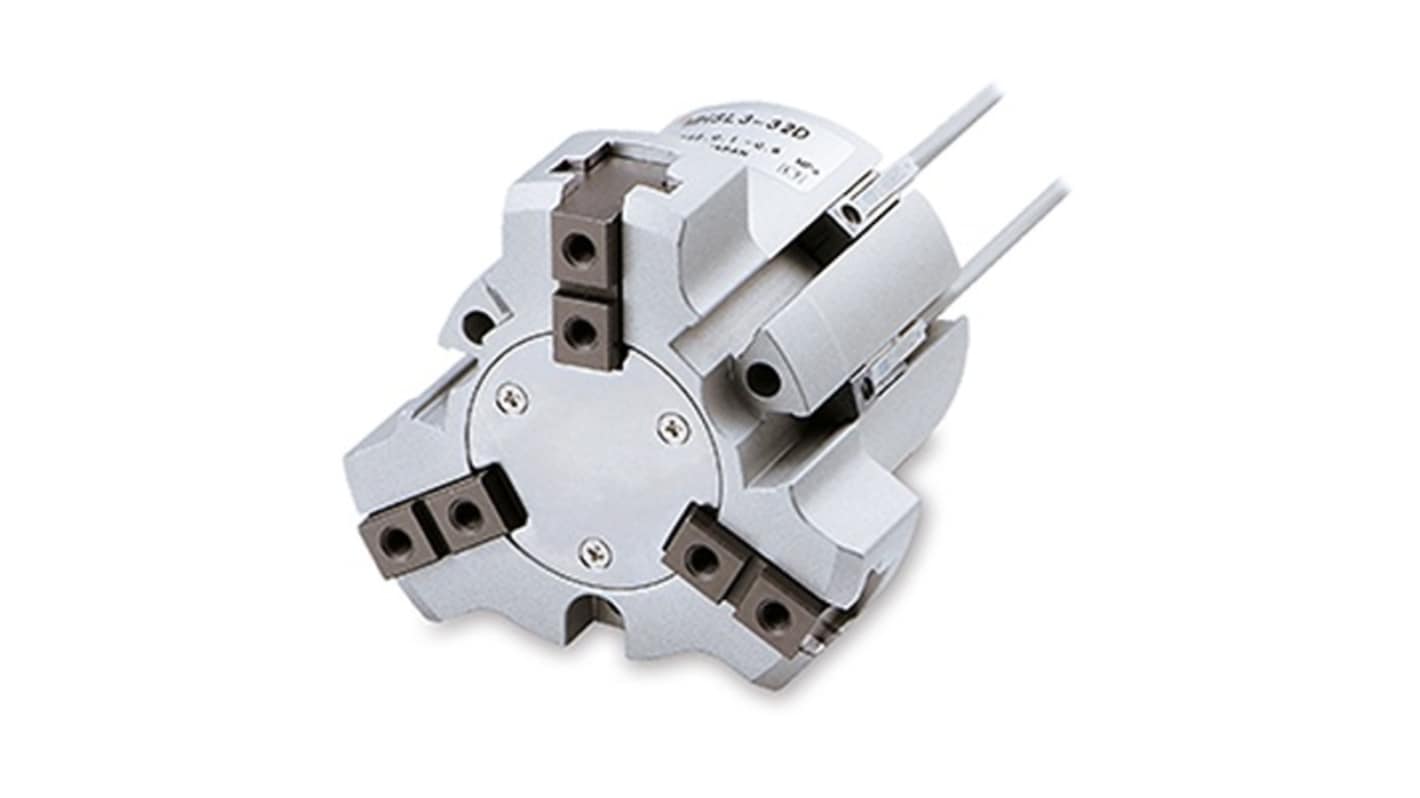

SMC 3 Finger Double Acting Action Pneumatic Gripper, MHSL3-25D, Parallel Gripping Type
- RS Stock No.:
- 456-910
- Mfr. Part No.:
- MHSL3-25D
- Brand:
- SMC
Subtotal (1 unit)*
£463.93
(exc. VAT)
£556.72
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £463.93 |
*price indicative
- RS Stock No.:
- 456-910
- Mfr. Part No.:
- MHSL3-25D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 3 | |
| Bore Size | 25mm | |
| Gripping Type | Parallel | |
| Action Type | Double Acting | |
| Stroke Length | 12mm | |
| Series | MHSL3 | |
| Maximum Operating Pressure | 6 bar | |
| Weight | 180g | |
| Gripping Force - Internal | 47N | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - External | 42N | |
| Maximum Operating Temperature | 60°C | |
| Width | 49mm | |
| Length | 49mm | |
| Standards/Approvals | IEC 60204-1, ISO 4413, ISO 4414, RoHS, ISO 10218-1 | |
| Height | 42mm | |
| Maximum Operating Frequency | 120cpm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 3 | ||
Bore Size 25mm | ||
Gripping Type Parallel | ||
Action Type Double Acting | ||
Stroke Length 12mm | ||
Series MHSL3 | ||
Maximum Operating Pressure 6 bar | ||
Weight 180g | ||
Gripping Force - Internal 47N | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - External 42N | ||
Maximum Operating Temperature 60°C | ||
Width 49mm | ||
Length 49mm | ||
Standards/Approvals IEC 60204-1, ISO 4413, ISO 4414, RoHS, ISO 10218-1 | ||
Height 42mm | ||
Maximum Operating Frequency 120cpm | ||
- COO (Country of Origin):
- JP
The SMC Long Stroke MHSL3 offers high precision with a repeatability of ±0.01 mm, ensuring accurate and reliable performance in various applications. It supports a maximum operating frequency of 120 cycles per minute, making it ideal for high speed and repetitive tasks in pneumatic or automation systems.
Maximum gripping force 1320 N at 0.5 MPa
Double acting
