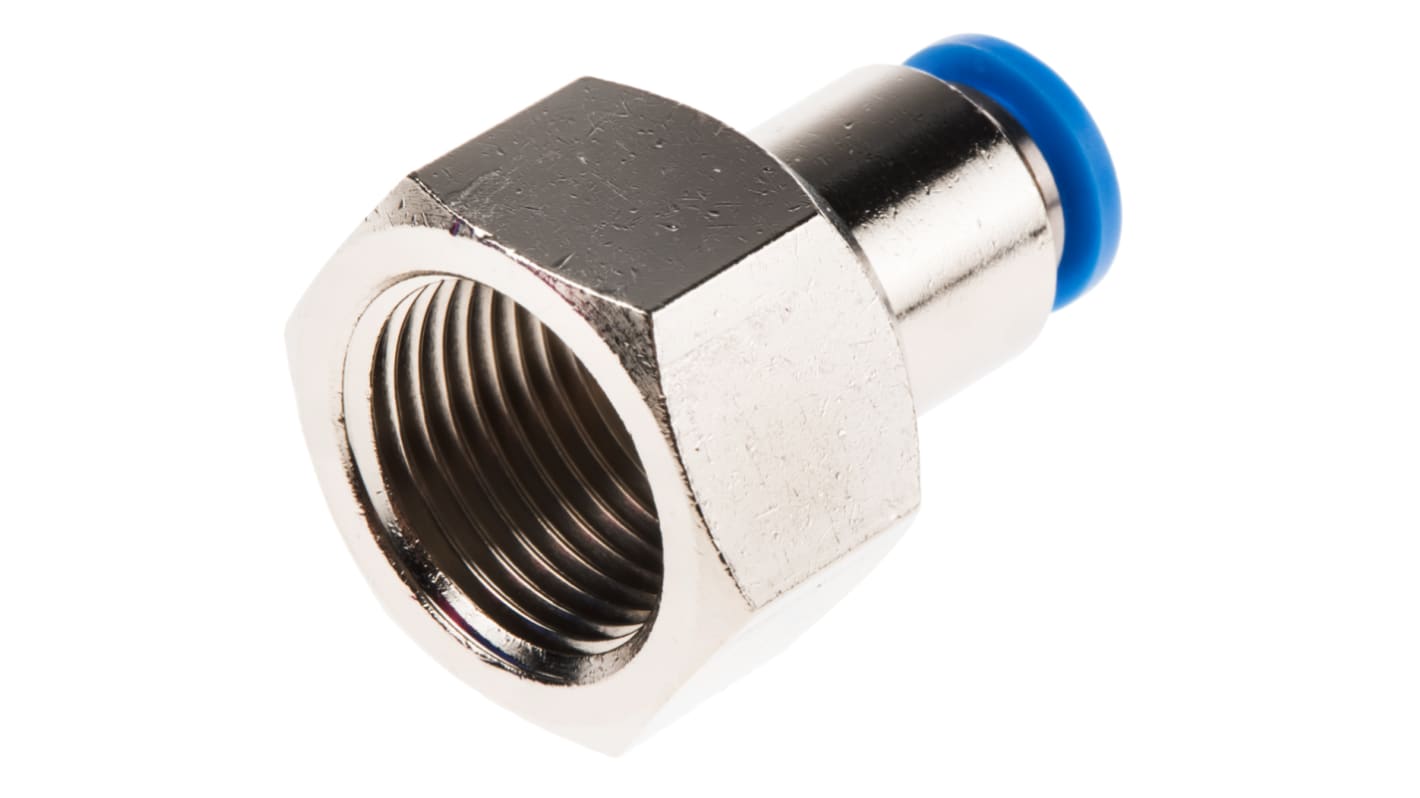

Festo QS Series Straight Threaded Adaptor, G 3/8 Female to Push In 6 mm, Threaded-to-Tube Connection Style, 190652

View all Pneumatic Fittings
Bulk discount available

Subtotal (1 bag of 10 units)*

£55.65

(exc. VAT)

£66.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship
  • Plus 23 unit(s) ready to ship from another location
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4£55.65£5.565
5 - 9£53.42£5.342
10 +£51.20£5.12

*price indicative

RS Stock No.:
121-6166
Mfr. Part No.:
QSF-3/8-6-B
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Connector A

G 3/8 Female

Connector B

Push In 6 mm

Pneumatic Fitting Type

Straight Threaded Adaptor

Connection Style

Threaded-to-Tube

Threaded Connection

G 3/8 Female

Manufacturer Series

QS

Inlet Port

G 3/8 Female

Model Number p

190652

Number of Inlet Ports

1

Outlet Port

Push In 6 mm

Number of Outlet Ports

1

Thread Material

Brass

Maximum Operating Temperature

+80°C

Angle

Straight

Maximum Operating Pressure

14 bar

Finish

Nickel Plated

Food Grade

No

Mounting Type

Inline

Chemical Resistant

No

Body Material

Brass

Minimum Operating Temperature

-10°C

Standards Met

ISO8573-1:2010

COO (Country of Origin):
TW

Festo Straight Threaded-To-Tube Push-In Adaptor, G3/8, 6mm - QSF-3/8-6-B


Make a quick and easy pneumatic connection with this straight adaptor from Festo. Its simple design means you can easily push it into a tube for tool-free and time-saving assembly. The durable fitting is built to withstand the demands of a high-capacity pneumatic system. It features a retaining claw made of steel alloy that's resistant to corrosion and holds tubing firmly without causing any surface damage. This connector is suitable for use in applications with a maximum pressure of up to 14 bar.

• Nitrile-rubber sealing ring creates a tight, leak-free join between the tubing and adaptor
• Safely absorbs pressure surges and vibration for reliability in challenging pneumatic applications
• Nickel-plated brass housing that's resistant to corrosion for increased longevity
• Possible to align after assembly for added convenience

Applications


• Printing industry
• Paper and pulp mills
• Mining and minerals processing

Does this push-in fitting offer a permanent connection with a pipe?


The adaptor makes a secure and leak-free join with a pipe while still being easy to remove. This means you can use it either as a permanent connector or as a temporary fitting in your pneumatic system.
