Festo QS Series Elbow Threaded Adaptor, G 1/8 Female to Push In 6 mm, Threaded-to-Tube Connection Style, 153274

View all Pneumatic Fittings
Bulk discount available

Subtotal (1 bag of 10 units)*

£47.27

(exc. VAT)

£56.72

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4£47.27£4.727
5 - 9£45.39£4.539
10 +£43.48£4.348

*price indicative

Photo of Pneumatic Fittings & Air Hose
Explore our Air hose range
Need compressed air system for your fittings? You’re in the right place. Our wide range of air hoses includes everything you need—all designed for secure, efficient performance. With both fittings and hoses available side by side, it’s easy to find compatible components and build a complete setup that works for your space and application.
Shop Now
RS Stock No.:
121-6124
Mfr. Part No.:
QSLF-1/8-6-B
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Connector A

G 1/8 Female

Connector B

Push In 6 mm

Pneumatic Fitting Type

Elbow Threaded Adaptor

Connection Style

Threaded-to-Tube

Threaded Connection

G 1/8 Female

Manufacturer Series

QS

Inlet Port

G 1/8 Female

Model Number p

153274

Number of Inlet Ports

1

Outlet Port

Push In 6 mm

Number of Outlet Ports

1

Thread Material

Nickel Plated Brass

Swivel Connection

Yes

Maximum Operating Pressure

14 bar

Chemical Resistant

No

Mounting Type

Inline

Maximum Operating Temperature

+80°C

Food Grade

No

Angle

90°

Body Material

PBT

Minimum Operating Temperature

-10°C

Finish

Nickel Plated

Standards Met

ISO8573-1:2010

COO (Country of Origin):
TW

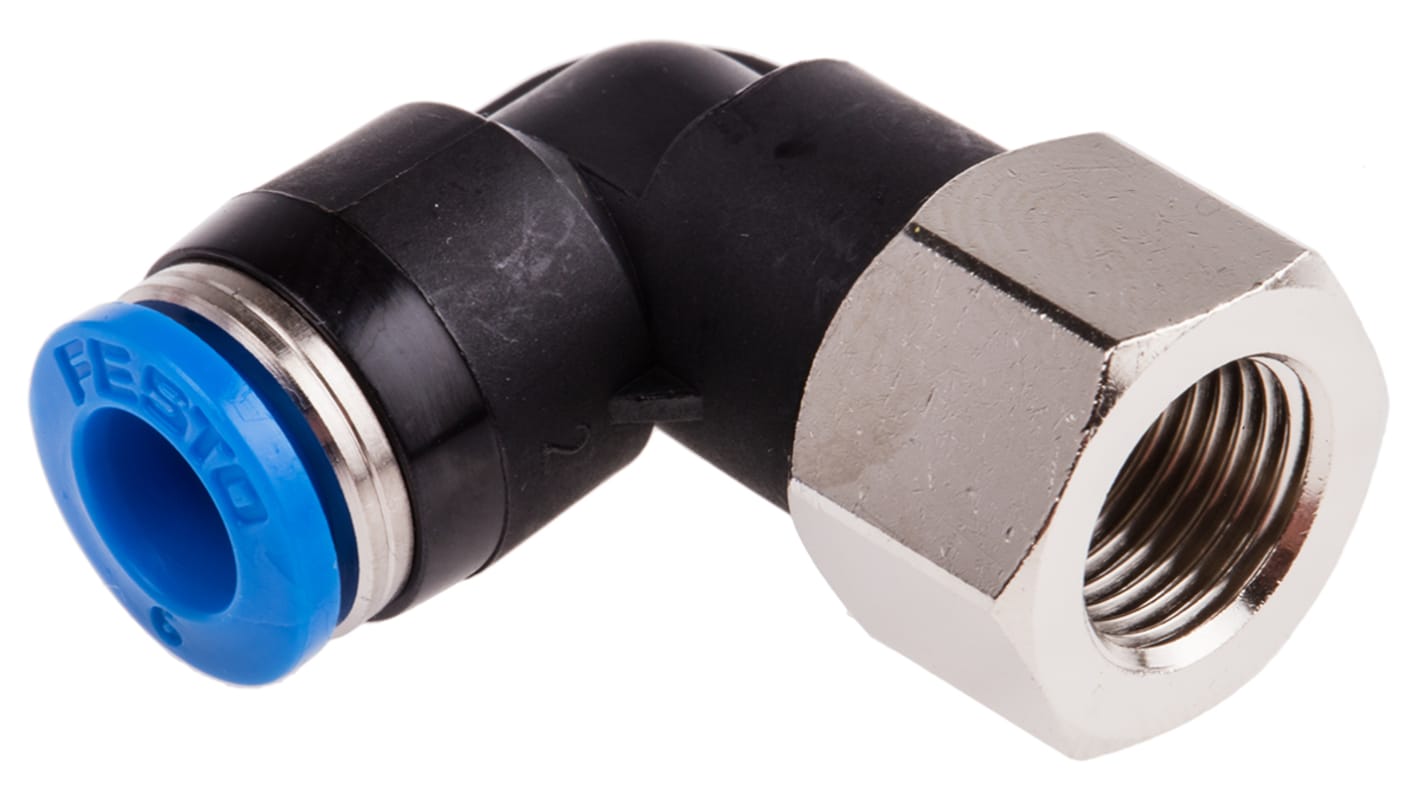

Festo Elbow Threaded Adaptor, G 1/8 Female to Push-In 6mm, 14 Bar - QSLF-1/8-6-B


This elbow adaptor from Festo is used to establish connections and direct compressed air and fluid flow in pneumatic and hydraulic systems. On one end, there's a female threaded adaptor made of high-alloy steel for maximum durability and corrosion resistance. On the other end of the L-shaped unit, you'll find a thermoplastic push-in ring for easy installation and removal. This component is designed for heavy-duty tasks and can operate within a pressure range of 0.95 to 14 bar, making it suitable for a variety of industrial and design applications.

• 15g product weight, so it's easy to handle and won't strain your system
• Wide operating temperature range of -10°C to +80°C for safe use in harsh conditions
• Can be twisted in any direction for maximum flexibility
• Convenient screw-in and push-in installation doesn't need specialised tools

Applications


• Automotive industry
• Robotics and factory automation
• Compressors

What does this adaptor attach to?


The female tube, which is easily detachable, attaches to hoses. The threaded part is screwed onto pipes and is ideal for making a permanent connection.
