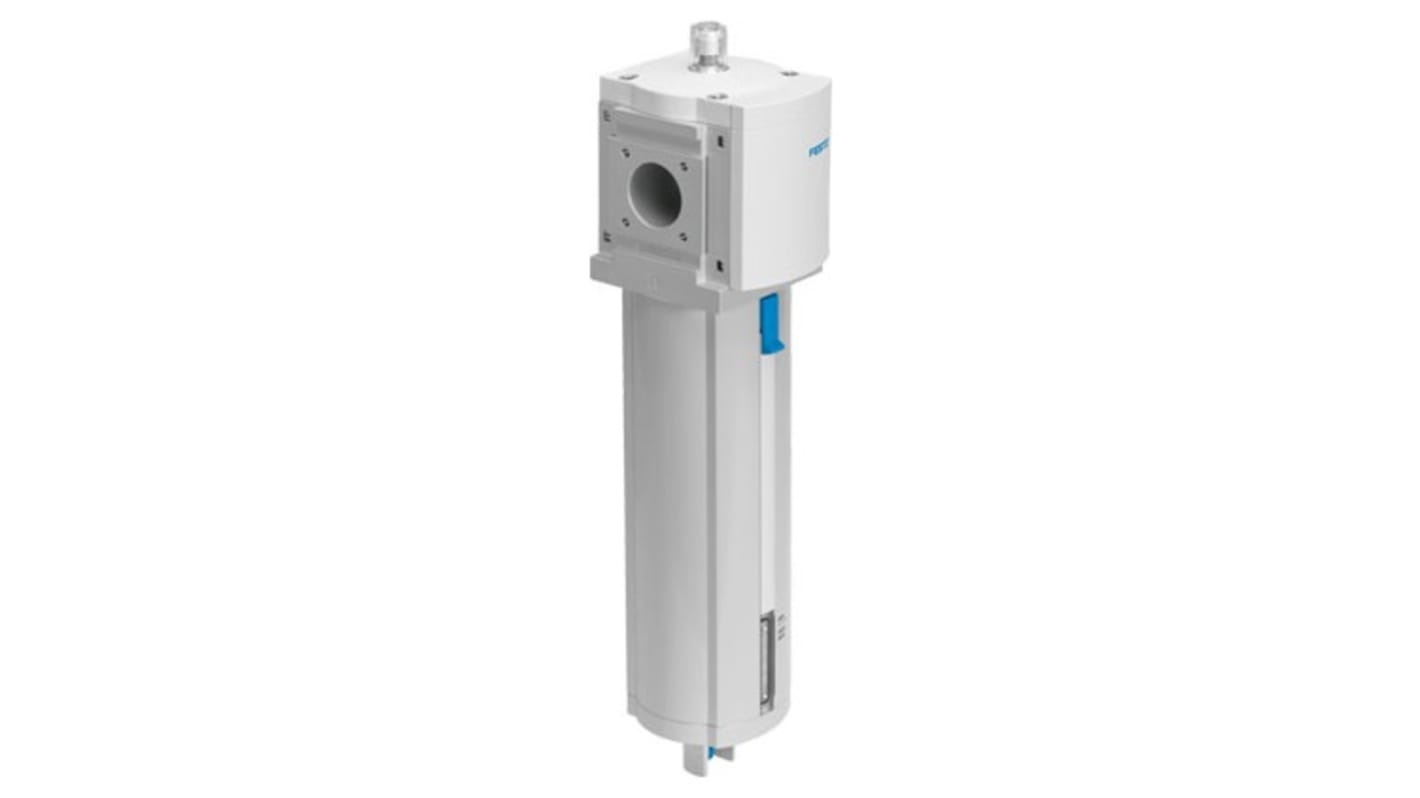

Festo MS series 1 μm 20 bar Pneumatic Filter 10000L/min max with Manual drain
- RS Stock No.:
- 288-2786
- Mfr. Part No.:
- MS9-LFM-G-BUM-HF-DA
- Brand:
- Festo
Subtotal (1 unit)*
£454.54
(exc. VAT)
£545.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £454.54 |
*price indicative
- RS Stock No.:
- 288-2786
- Mfr. Part No.:
- MS9-LFM-G-BUM-HF-DA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 1μm | |
| Product Type | Pneumatic Filter | |
| Drain Type | Manual | |
| Series | MS | |
| Maximum Flow Rate | 10000L/min | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Operating Pressure | 20 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Standards/Approvals | RoHS | |
| Bowl Material | Wrought Aluminium Alloy | |
| Filter Type | Fibre | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 1μm | ||
Product Type Pneumatic Filter | ||
Drain Type Manual | ||
Series MS | ||
Maximum Flow Rate 10000L/min | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Operating Pressure 20 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Standards/Approvals RoHS | ||
Bowl Material Wrought Aluminium Alloy | ||
Filter Type Fibre | ||
Festo MS Pneumatic Filter, 1μm Filtration Size, 10000L/min Maximum Flow Rate - MS9-LFM-G-BUM-HF-DA, Numeric Part Number:564044
This pneumatic filter provides particulate removal and Basic moisture separation for compressed Air systems in industrial environments. Designed for inline use, it conditions Air to protect downstream automation, electrical and mechanical equipment while operating across a wide temperature range.
Features and Benefits:
• 1μm Fibre element protects sensitive components from fine particles
• 10000 L/min maximum flow supports high-throughput systems
• 20 bar maximum operating pressure enables robust process integration
• Manual drain allows simple condensate removal without tools
• Wrought aluminium alloy bowl gives corrosion‑resistant housing
• NBR sealing material ensures compatibility with common pneumatic media
• 10000 L/min maximum flow supports high-throughput systems
• 20 bar maximum operating pressure enables robust process integration
• Manual drain allows simple condensate removal without tools
• Wrought aluminium alloy bowl gives corrosion‑resistant housing
• NBR sealing material ensures compatibility with common pneumatic media
Applications
• Suitable for compressed Air feeds to pneumatic actuators and valves
• Ideal for Air preparation in electronics assembly plant lines
• Used with control cabinets to reduce particulate ingress
• Can be used for general workshop Air supply to machinery
• Used for pre‑filtration ahead of lubrication or downstream treatment
• Ideal for Air preparation in electronics assembly plant lines
• Used with control cabinets to reduce particulate ingress
• Can be used for general workshop Air supply to machinery
• Used for pre‑filtration ahead of lubrication or downstream treatment
How does the filter cope with temperature variation on-site?
Its operational range spans -10°C to +60°C, permitting use in unheated workshops and typical factory environments without performance loss.
Is the bowl free from brass components for corrosion‑sensitive installations?
The bowl is a wrought aluminium alloy construction, offering a brass‑free solution suited to applications where copper alloys are undesirable.
What maintenance is required for element replacement?
The Fibre element is serviceable, routine inspection and replacement intervals depend on contamination levels and system duty to retain 1μm particle retention.
How does the drain method affect installation options?
The manual drain requires local access for periodic discharge, making it appropriate where occasional operator interaction is acceptable.
