Festo MS series 1 μm Manifold module 20 bar Pneumatic Filter 7000 L/min max with Manual drain
- RS Stock No.:
- 202-3344
- Mfr. Part No.:
- MS9-LFM-G-BUM
- Brand:
- Festo
Subtotal (1 unit)*
£377.71
(exc. VAT)
£453.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £377.71 |
*price indicative
- RS Stock No.:
- 202-3344
- Mfr. Part No.:
- MS9-LFM-G-BUM
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Filter | |
| Filtration Size | 1μm | |
| Port Size | Manifold module | |
| Drain Type | Manual | |
| Series | MS | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Flow Rate | 7000L/min | |
| Maximum Operating Pressure | 20 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 8573-1:2010 (5:7:3), ISO8573-1:2010 (6:8:4) | |
| Filter Type | Fibre | |
| Bowl Material | Wrought Aluminium Alloy | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Filter | ||
Filtration Size 1μm | ||
Port Size Manifold module | ||
Drain Type Manual | ||
Series MS | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Flow Rate 7000L/min | ||
Maximum Operating Pressure 20 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 8573-1:2010 (5:7:3), ISO8573-1:2010 (6:8:4) | ||
Filter Type Fibre | ||
Bowl Material Wrought Aluminium Alloy | ||

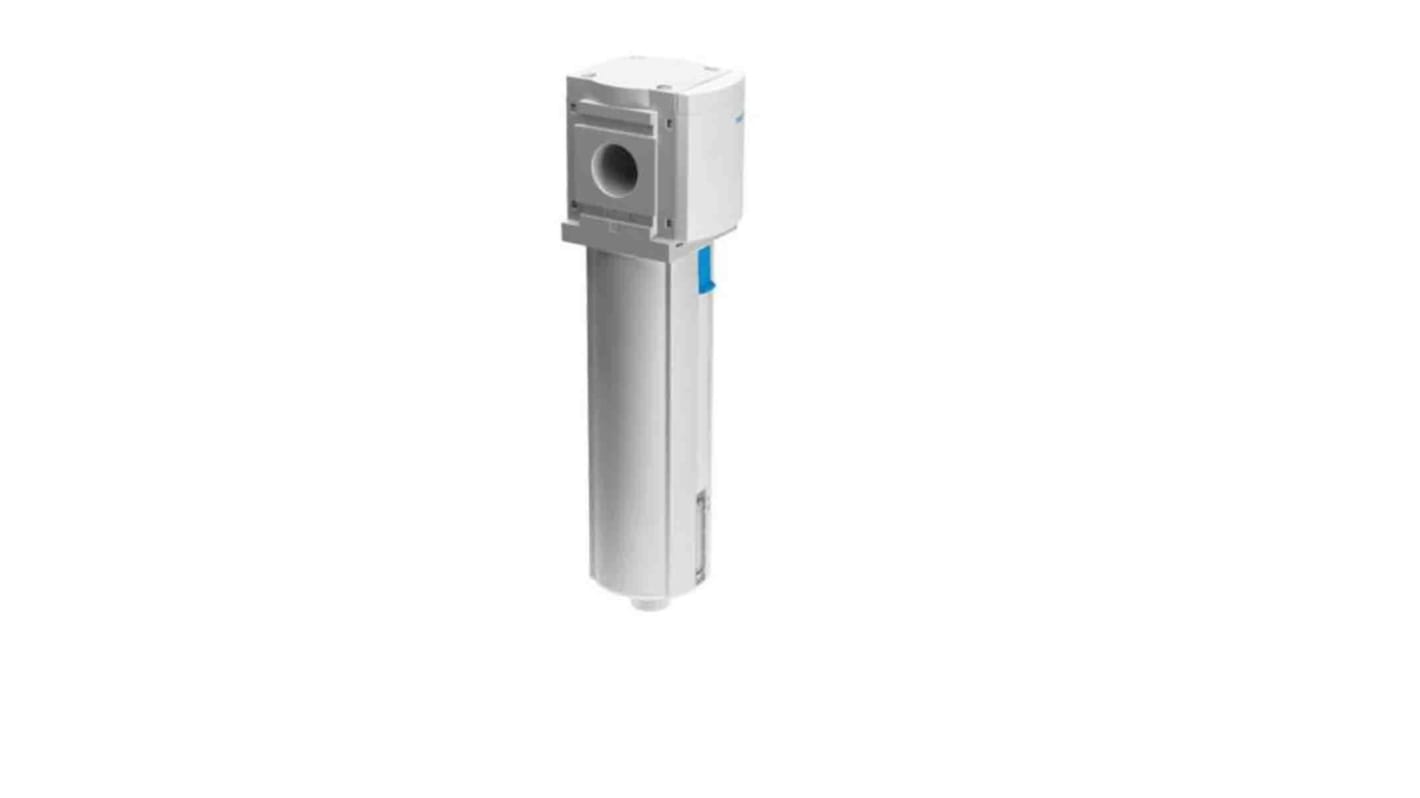

The Festo fine filter MS9-LFM-G-BUM is 1 μm filter with metal bowl guard. It has manual condensate drain and flow direction from left to right.
Series MS
Size 9
Design structure Fibre filter
Grade of filtration 1 μm
Condensate drain manual rotary
