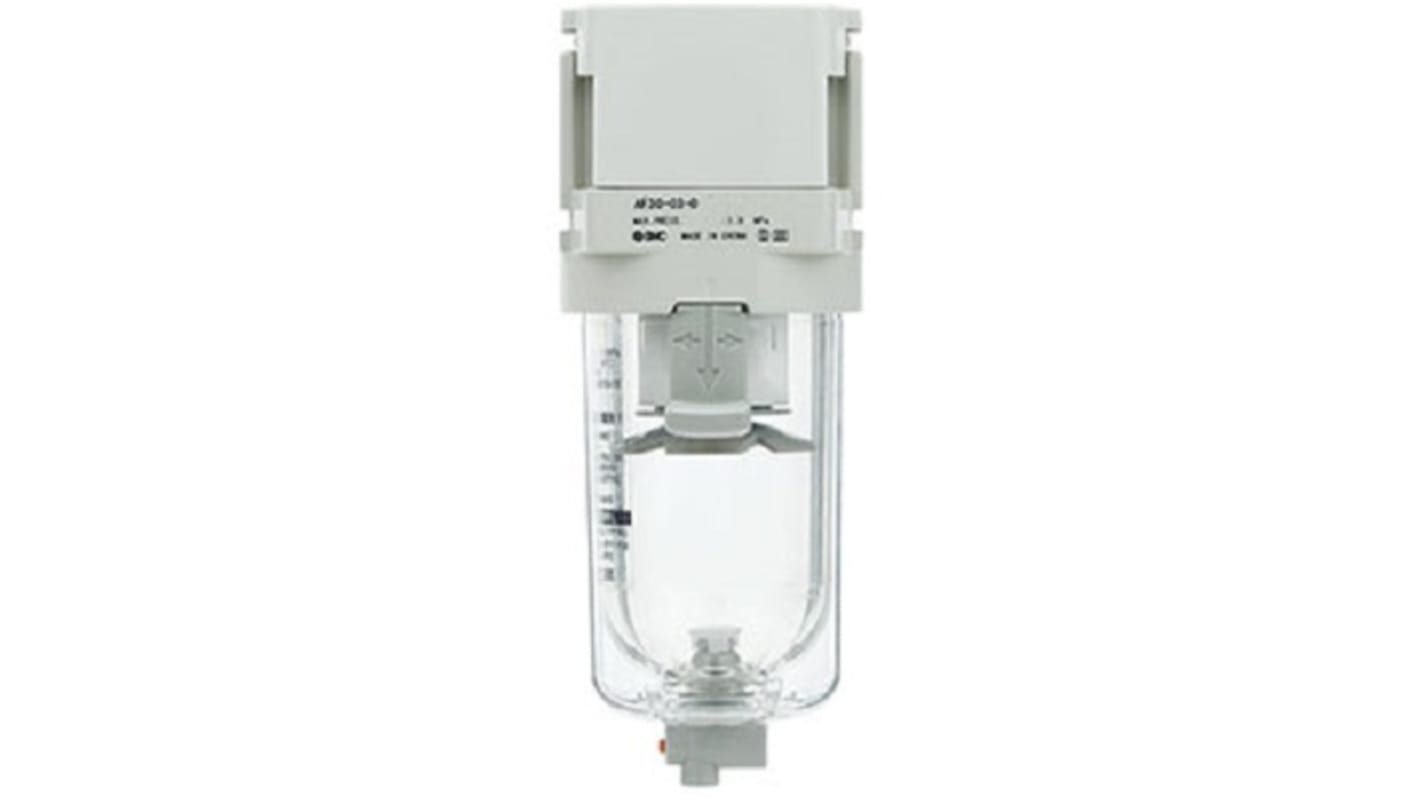

SMC AF20-D series 5μm G 1/4 0.15MPa to 10 bar Filter 6000L/min max with Auto drain
- RS Stock No.:
- 255-2839
- Mfr. Part No.:
- AF20-F02C-D
- Brand:
- SMC
7 In stock - FREE next working day delivery available
Price Each
£36.04
(exc. VAT)
£43.25
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £36.04 |
- RS Stock No.:
- 255-2839
- Mfr. Part No.:
- AF20-F02C-D
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The SMC air filter has a bowl with a two layer construction and the bowl is covered with a transparent bowl guard. This bowl is completely protected from the environment and allows for improved safety. The float type auto drain of the filter is normally closed which means that the drain port is closed when pressure is not applied. The filter has a flow direction from left to right and comes without an indicator.
Better visibility and environmental resistance
Bowl material is of polycarbonate
Drain capacity of 8 cm cube
Weight of filter is 0.09 kg
Easy to handle
Bowl material is of polycarbonate
Drain capacity of 8 cm cube
Weight of filter is 0.09 kg
Easy to handle
Specifications
Attribute | Value |
|---|---|
| Filtration Size | 5µm |
| Port Connection | G 1/4 |
| Drain Type | Auto |
| Manufacturer Series | AF20-D |
| Maximum Flow Rate | 6000L/min |
| Minimum Operating Pressure | 0.15MPa |
| Maximum Operating Pressure | 10 bar |
