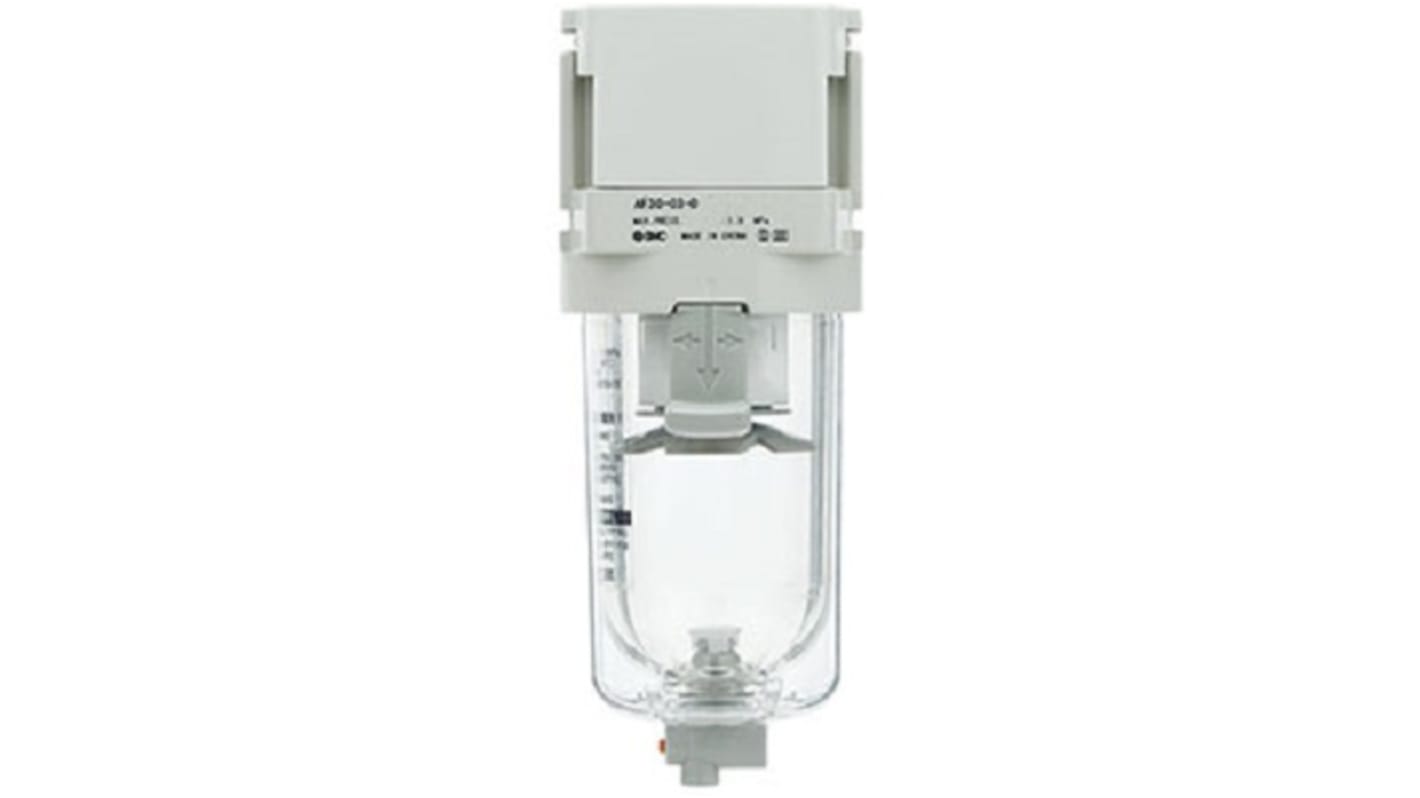

SMC AF20-D series 5 μm G 1/8 10 bar Pneumatic Filter 6000 L/min max with Automatic drain
- RS Stock No.:
- 255-2837
- Mfr. Part No.:
- AF20-F01C-D
- Brand:
- SMC
Subtotal (1 unit)*
£38.93
(exc. VAT)
£46.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 13 unit(s) shipping from 04 May 2026
- Plus 3 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.93 |
*price indicative
- RS Stock No.:
- 255-2837
- Mfr. Part No.:
- AF20-F01C-D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Filter | |
| Filtration Size | 5μm | |
| Port Size | G 1/8 | |
| Drain Type | Automatic | |
| Series | AF20-D | |
| Maximum Flow Rate | 6000L/min | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Filter | ||
Filtration Size 5μm | ||
Port Size G 1/8 | ||
Drain Type Automatic | ||
Series AF20-D | ||
Maximum Flow Rate 6000L/min | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Bowl Material Polycarbonate | ||
The SMC air filter has a bowl with a two layer construction and the bowl is covered with a transparent bowl guard. This bowl is completely protected from the environment and allows for improved safety. The float type auto drain of the filter is normally closed which means that the drain port is closed when pressure is not applied. The filter has a flow direction from left to right and comes without an indicator.
Better visibility and environmental resistance
Bowl material is of polycarbonate
Drain capacity of 8 cm cube
Weight of filter is 0.09 kg
Easy to handle
