SMC AF40-D series 5μm G 1/2 0.1MPa to 10 bar Pneumatic Filter 6000L/min max with Auto drain
- RS Stock No.:
- 255-2844
- Mfr. Part No.:
- AF40-F04D-D
- Brand:
- SMC
Subtotal (1 unit)*
£70.38
(exc. VAT)
£84.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £70.38 |
*price indicative
- RS Stock No.:
- 255-2844
- Mfr. Part No.:
- AF40-F04D-D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Filtration Size | 5µm | |
| Port Connection | G 1/2 | |
| Drain Type | Auto | |
| Manufacturer Series | AF40-D | |
| Maximum Flow Rate | 6000L/min | |
| Minimum Operating Pressure | 0.1MPa | |
| Maximum Operating Pressure | 10 bar | |
Select all | ||
|---|---|---|
Brand SMC | ||
Filtration Size 5µm | ||
Port Connection G 1/2 | ||
Drain Type Auto | ||
Manufacturer Series AF40-D | ||
Maximum Flow Rate 6000L/min | ||
Minimum Operating Pressure 0.1MPa | ||
Maximum Operating Pressure 10 bar | ||

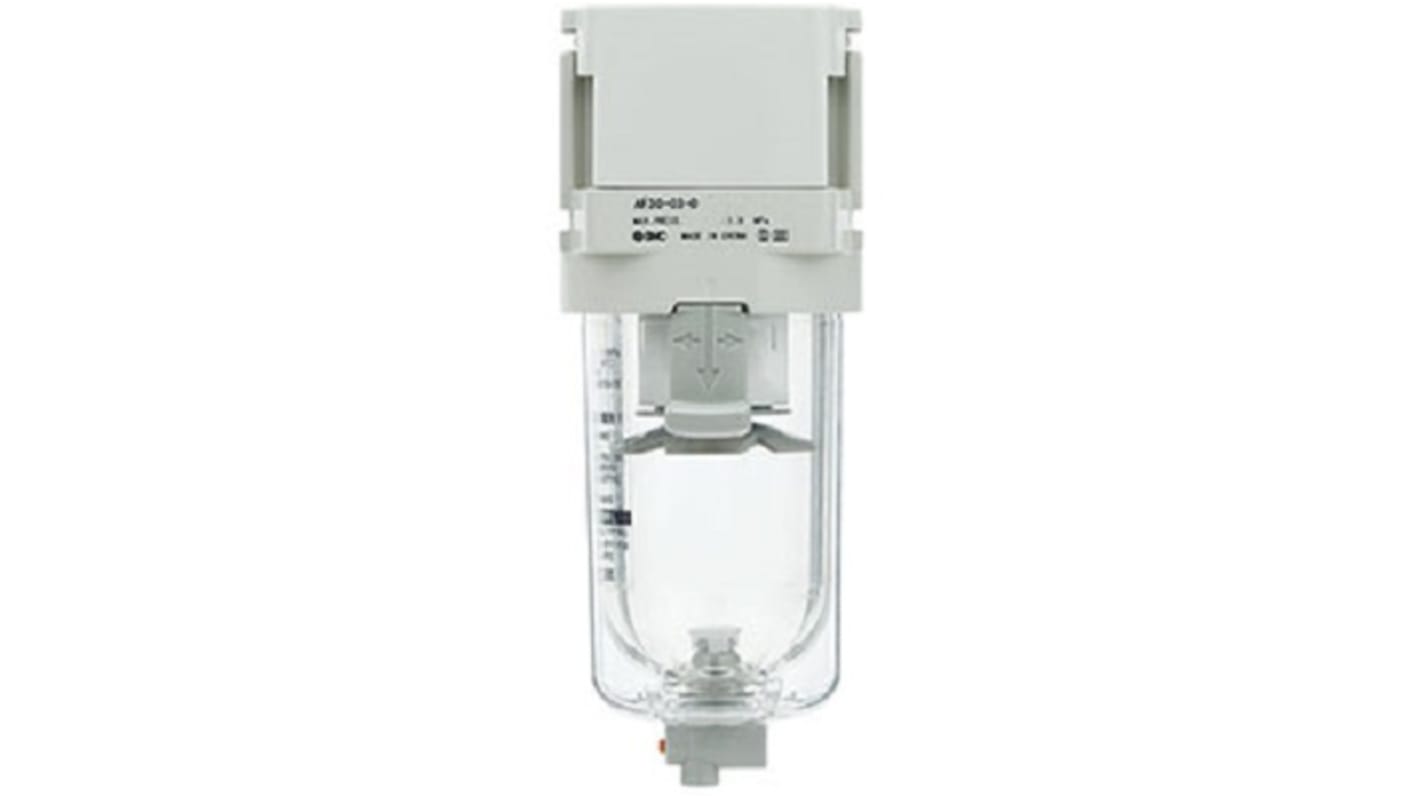

The SMC air filter has a bowl with a two layer construction and the bowl is covered with a transparent bowl guard. This bowl is completely protected from the environment and allows for improved safety. The float type auto drain of the filter is normally open which means that the drain port is open when pressure is not applied. The filter has a flow direction from left to right and comes without an indicator.
Better visibility and environmental resistance
Bowl material is of polycarbonate
Drain capacity of 45 cm cube
Weight of filter is 0.35 kg
Easy to handle
Bowl material is of polycarbonate
Drain capacity of 45 cm cube
Weight of filter is 0.35 kg
Easy to handle
