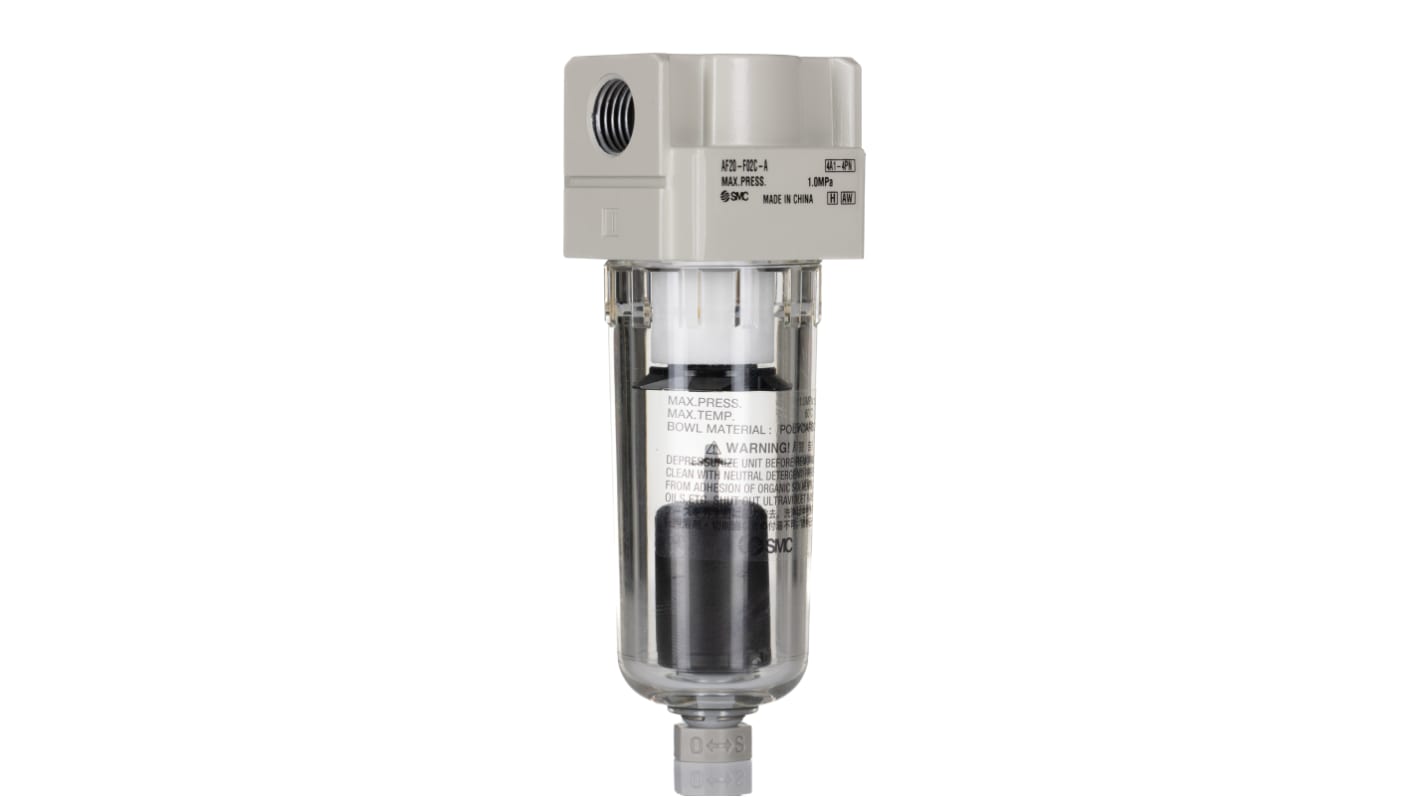

SMC Series AF Pneumatic Filter, 5μm Filtration size, Automatic Drain Type - AF20-F02C-A

This pneumatic filter is designed for effective air filtration in industrial settings. It boasts a filtration size of 5 μm and a maximum flow rate of 500L/min, making it suitable for various applications requiring efficient air purification. The filter features an automatic drain system for added convenience, alongside its robust polycarbonate bowl for visibility of the filter condition.

Features & Benefits

• 5 μm filtration size ensures optimal air quality
• Automatic drain type simplifies maintenance processes
• High flow rate supports efficient pneumatic systems
• Polycarbonate bowl allows easy monitoring of filter levels
• G 1/4 filter connection provides versatility in installation
• Capable of operating within a temperature range of -5 °C to +60 °C

Applications

• Utilised in automated machinery for improved air quality
• Designed for pneumatic systems in manufacturing and processing
• Ideal for environments requiring reliable air filtration solutions
• Employed in electronics and mechanical industries for performance enhancement

What pressure range can this filter operate within?

It operates effectively between a minimum pressure of 0.1 MPa and a maximum pressure of 1.5 MPa, ensuring reliability in various applications.

How does the automatic drain feature benefit maintenance?

The automatic drain function prevents moisture accumulation and reduces manual intervention, allowing for continuous operation without the need for regular checks.

What materials are used in the construction of the filter?

The bowl is constructed from durable polycarbonate, providing both clarity to monitor conditions and resilience against operational stress.

Can this filter be used in varying temperature conditions?

Yes, it is designed to handle temperatures ranging from -5 °C to +60 °C, making it suitable for diverse environments.

Filters, Lubricators and Separators

High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.

Select all	Attribute	Value
	Brand	SMC
	Filtration Size	5µm
	Port Connection	G 1/4
	Drain Type	Automatic
	Manufacturer Series	AF
	Minimum Operating Pressure	0.1MPa
	Maximum Operating Pressure	1 MPa, 1.5 MPa
	Maximum Operating Temperature	+60°C
	Port Connection Thread Standard	G
	Minimum Operating Temperature	-5°C
	Port Connection Thread Size	1/4 in

	Select all
	Brand SMC
	Filtration Size 5µm
	Port Connection G 1/4
	Drain Type Automatic
	Manufacturer Series AF
	Minimum Operating Pressure 0.1MPa
	Maximum Operating Pressure 1 MPa, 1.5 MPa
	Maximum Operating Temperature +60°C
	Port Connection Thread Standard G
	Minimum Operating Temperature -5°C
	Port Connection Thread Size 1/4 in

SMC AF series 5μm G 1/4 0.1MPa to 1 MPa, 1.5 MPa Pneumatic Filter with Automatic drain
