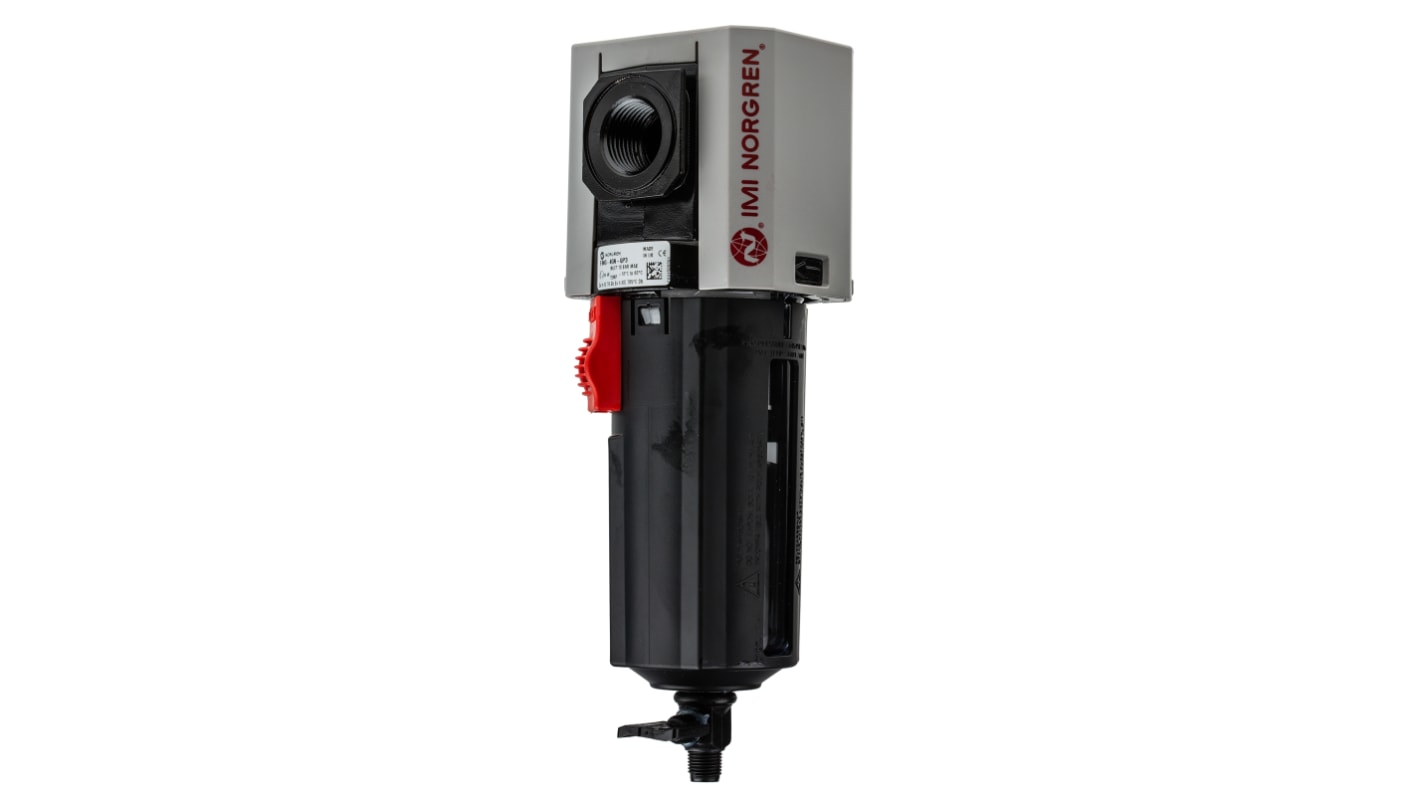

Norgren Excelon Plus series 40 μm 1/2 in G 10 bar Pneumatic Filter 4680 L/min max with Manual drain
- RS Stock No.:
- 182-9623
- Mfr. Part No.:
- F84G-4GN-QP3
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£52.05
(exc. VAT)
£62.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £52.05 |
| 5 - 9 | £50.48 |
| 10 + | £48.92 |
*price indicative
- RS Stock No.:
- 182-9623
- Mfr. Part No.:
- F84G-4GN-QP3
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Filtration Size | 40μm | |
| Product Type | Pneumatic Filter | |
| Port Size | 1/2 in G | |
| Connection Thread Standard | G | |
| Drain Type | Manual | |
| Series | Excelon Plus | |
| Maximum Flow Rate | 4680L/min | |
| Seal Material | Chloroprene | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Height | 70mm | |
| Standards/Approvals | ISO 8573-1, RoHS | |
| Filter Type | General Purpose Filter | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Filtration Size 40μm | ||
Product Type Pneumatic Filter | ||
Port Size 1/2 in G | ||
Connection Thread Standard G | ||
Drain Type Manual | ||
Series Excelon Plus | ||
Maximum Flow Rate 4680L/min | ||
Seal Material Chloroprene | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Overall Height 70mm | ||
Standards/Approvals ISO 8573-1, RoHS | ||
Filter Type General Purpose Filter | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- GB
IMI Norgren High-Flow Pneumatic Filter, 0.3 to 10 Bar, 4680L/min Flow Rate - Excelon Plus Series - F84G-4GN-QP3
Prevent dirt build-up in your pneumatic equipment by removing contaminants with this IMI Norgren pneumatic filter. Its high flow rate of 4680L/min (litres per minute) means it's effective in applications with extremely heavy flow. The filter comes with a polycarbonate bowl that effectively traps contaminants. Its enhanced tensile strength means it's resistant to hard impacts for use in demanding factory settings. Thanks to a wide operating temperature range between -10°C and +60°C, this is a reliable option for use in extreme conditions.
Features & Benefits
• Broad operating pressure range of 0.3 to 10 bar is effective in low-pressure applications
• Filtration size of 40μm (micrometres) makes it reliable against small particles
• Aluminium body is corrosion-resistant for an extended service life
• Double safety lock on bowl prevents tampering
• Sintered polypropylene (PP) filter is thermal resistant to withstand extreme temperatures
Applications
• Food and beverage production
• Chemical plants
• HVAC (heating, ventilation and air-conditioning) systems
How is condensation drained from this pneumatic filter?
This filter uses a manual drain system. It comes with an indicator lens that lets you know when it's full so you can quickly empty it to prevent machine downtime.
