EMERSON – AVENTICS 651 series 25μm G 1/4 0bar to 16 bar Pneumatic Filter with Manual, Semi Automatic drain
- RS Stock No.:
- 136-6289
- Mfr. Part No.:
- G651ABJP2JA000N
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£53.84
(exc. VAT)
£64.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.84 |
*price indicative
- RS Stock No.:
- 136-6289
- Mfr. Part No.:
- G651ABJP2JA000N
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Filtration Size | 25µm | |
| Port Connection | G 1/4 | |
| Drain Type | Manual, Semi Automatic | |
| Manufacturer Series | 651 | |
| Typical Flow Rate | 2360L/min | |
| Minimum Operating Pressure | 0bar | |
| Maximum Operating Pressure | 16 bar | |
| Maximum Operating Temperature | +50°C | |
| Port Connection Thread Standard | G | |
| Minimum Operating Temperature | -20°C | |
| Port Connection Thread Size | 1/4 in | |
| Filter Type | Industiral Filter | |
| Proof Pressure | 10bar | |
| Bowl Material | Polycarbonate | |
Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Filtration Size 25µm | ||
Port Connection G 1/4 | ||
Drain Type Manual, Semi Automatic | ||
Manufacturer Series 651 | ||
Typical Flow Rate 2360L/min | ||
Minimum Operating Pressure 0bar | ||
Maximum Operating Pressure 16 bar | ||
Maximum Operating Temperature +50°C | ||
Port Connection Thread Standard G | ||
Minimum Operating Temperature -20°C | ||
Port Connection Thread Size 1/4 in | ||
Filter Type Industiral Filter | ||
Proof Pressure 10bar | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- PL
651/652 Series Filter

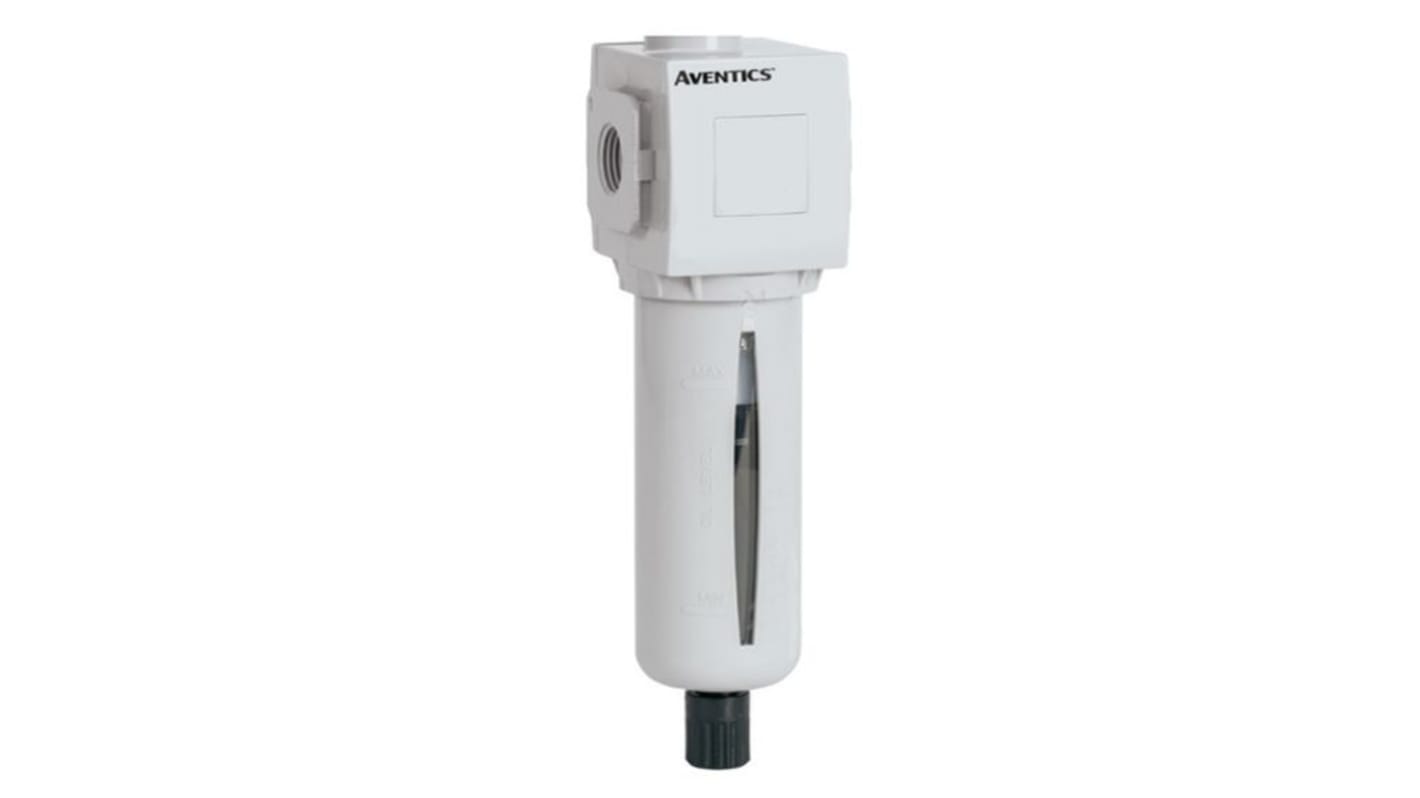

A pneumatic filter fitted with a semi-automatic drain from ASCO’s 651/652 series. The units have a 25 μm, sintered polyethylene element with a centrifugal separator for removal of particulate and water contamination from the air line. They are fitted with a polycarbonate bowl with bowl guard and sight gauge to meet industry requirements. The 651/652 series are a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications.
Features and Benefits
• Large selection of filtering capabilities to remove particulate and water droplets from compressed or inert gas
• Sintered polyethylene elements, with centrifugal separator
• Optional extended temperature range of -40 °C to +80 °C
• Innovative two position plastic drain with manual and semi-automatic functions
• Polycarbonate bowls
• Threaded ports allow for individual or modular mounting
• Air purity class according to ISO 8573-1 2010
