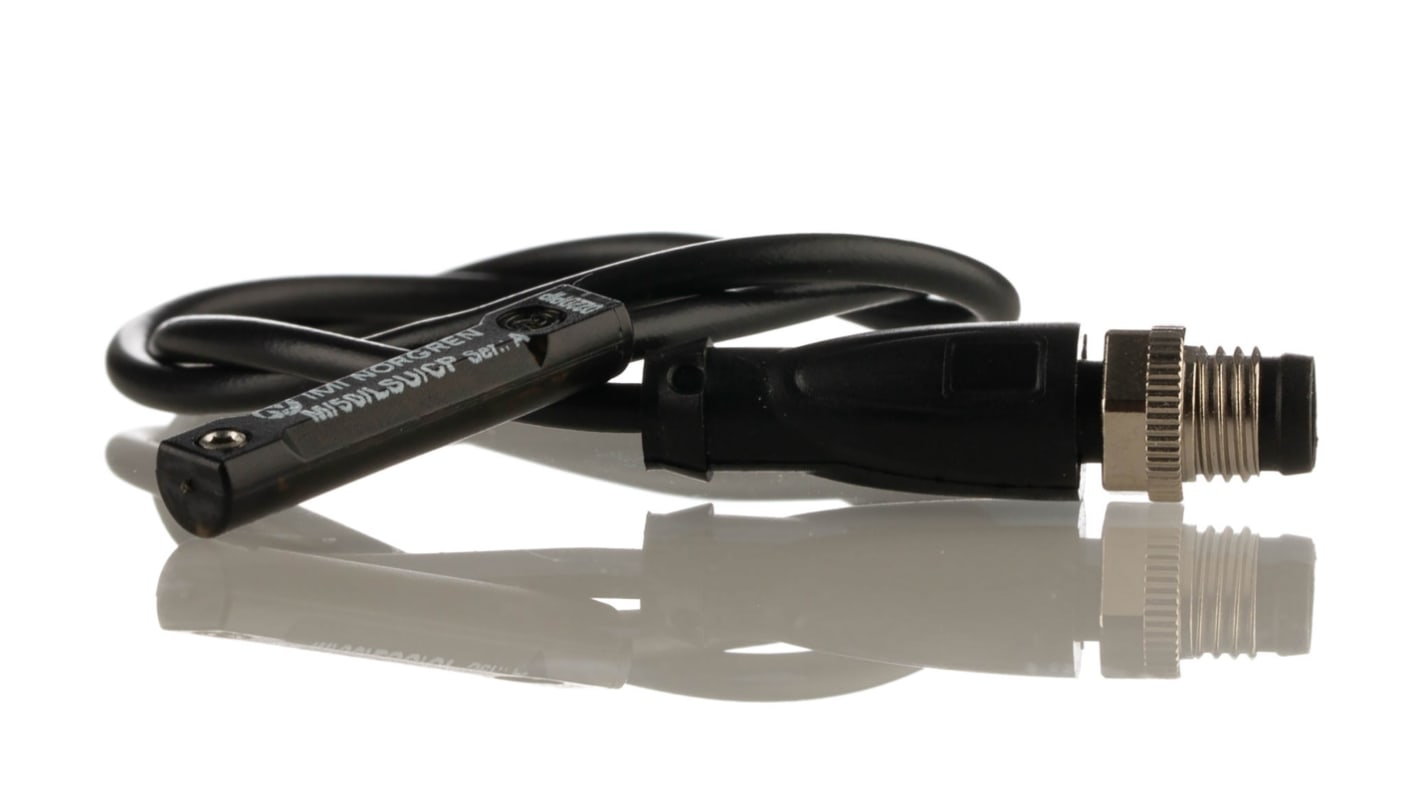

Norgren Plug Connector Reed Pneumatic Cylinder & Actuator Switch M/50/LSU Series, 60V ac/dc LED Indicator
- RS Stock No.:
- 218-0617
- Mfr. Part No.:
- M/50/LSU/CP
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£34.22
(exc. VAT)
£41.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 40 unit(s) shipping from 15 June 2026
- Plus 11 unit(s) shipping from 15 June 2026
- Plus 45 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £34.22 |
| 5 - 9 | £33.54 |
| 10 + | £32.85 |
*price indicative
- RS Stock No.:
- 218-0617
- Mfr. Part No.:
- M/50/LSU/CP
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Series | M/50/LSU | |
| Product Type | Pneumatic Cylinder & Actuator Switch | |
| Sub Type | Reed | |
| Electrical Connection Type | Plug Connector | |
| Voltage | 60V ac/dc | |
| Housing Material | Body: Plastic | |
| For Use With | RA/8000/M, KA/8000/M | |
| LED Indicator | Yes | |
| IP Rating | IP66 | |
| Switching Current | 0.18A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | -20°C | |
| Standards/Approvals | EN 60947-5-2 | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Series M/50/LSU | ||
Product Type Pneumatic Cylinder & Actuator Switch | ||
Sub Type Reed | ||
Electrical Connection Type Plug Connector | ||
Voltage 60V ac/dc | ||
Housing Material Body: Plastic | ||
For Use With RA/8000/M, KA/8000/M | ||
LED Indicator Yes | ||
IP Rating IP66 | ||
Switching Current 0.18A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature -20°C | ||
Standards/Approvals EN 60947-5-2 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL
IMI Norgren Reed Pneumatic Cylinder and Actuator Switch, 10 to 240V AC, 10W - M/50/LSU Series - M/50/LSU/CP
Be sure of efficient industrial operation by installing this IMI Norgren reed switch for cylinders and actuators. The NO (normally open) contacts close when the magnetic pistons move, this lets electricity flow and stops or starts motion to operate your equipment. An IP66 (ingress protection) rating means the unit is completely protected from dust and water jets so you can confidently use it with heavy-duty applications. Thanks to a simple plug-in connector, installation is quick and easy.
Features & Benefits
• Impact resistance prevents damage and saves repair and maintenance leading to unnecessary production downtimes
• Operating temperatures between -25°C and +80°C for use in tough indoor and outdoor conditions
• Plastic housing and cable sheath protects the wires and internal components against corrosives for durability
Applications
• Aeroplane doors and seats
• Dentistry chairs
• Automated conveyor belts
How does a reed switch work?
A reed switch is activated by magnetism. A permanent magnet – such as the magnetised piston rod in a cylinder or current passing through an electromagnetic coil – is the actuation force that either turns the switch on or off.
