Norgren NPN Solid State Pneumatic Cylinder & Actuator Switch, M/50/EAP Series, 30V, with LED indicator
- RS Stock No.:
- 218-0611
- Mfr. Part No.:
- M/50/EAP/CC
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£36.71
(exc. VAT)
£44.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £36.71 |
5 - 9 | £35.96 |
10 + | £35.24 |
*price indicative
- RS Stock No.:
- 218-0611
- Mfr. Part No.:
- M/50/EAP/CC
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | M/50/EAP | |
Type | Solid State | |
Voltage Rating | 30V | |
Operation | NPN | |
Compatible With | KA/8000/M, RA/8000/M | |
LED Indicator | Yes | |
Voltage Drop | 2.5V | |
IP Rating | IP67 | |
Maximum Switched Power | 3W | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series M/50/EAP | ||
Type Solid State | ||
Voltage Rating 30V | ||
Operation NPN | ||
Compatible With KA/8000/M, RA/8000/M | ||
LED Indicator Yes | ||
Voltage Drop 2.5V | ||
IP Rating IP67 | ||
Maximum Switched Power 3W | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

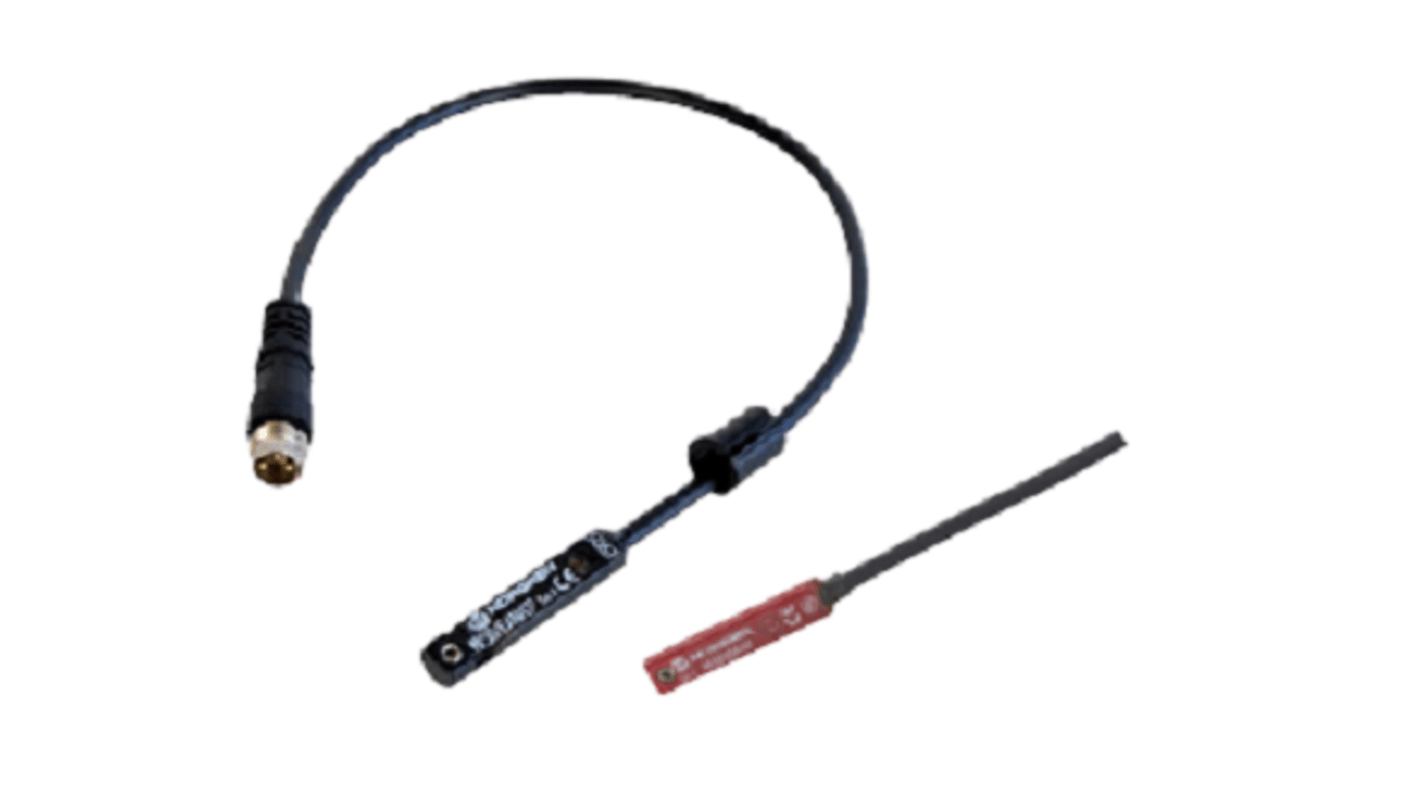

IMI Norgren Pneumatic Cylinder and Actuator Switch, 100mA Maximum Current, 10 to 30V DC Supply Voltage - M/50/EAP Series - M/50/EAP/CC
Get to grips with your compressed air operation using this pneumatic cylinder and actuator switch from IMI Norgren. Its magnetic operation provides fast switching in under 0.5ms, giving you instant control over airflow. The solid-state design means there are no moving parts that could wear out and call for maintenance, freeing you up for other jobs. This device can be flush mounted to a pneumatic cylinder, so your setup stays neat and organised.
Features & Benefits
• LED indicator displays the status of your operations, for monitoring at a glance
• IP67 rating means it's completely dust-tight and withstands temporary immersion in water up to one metre
• Standard M12 plug type for wide compatibility
• PVC cable sheath resists corrosion and industrial contaminants, for a long service life
• IP67 rating means it's completely dust-tight and withstands temporary immersion in water up to one metre
• Standard M12 plug type for wide compatibility
• PVC cable sheath resists corrosion and industrial contaminants, for a long service life
Applications
• Factory automation
• Medical and pharmaceutical industries
• Pneumatic operations
• Medical and pharmaceutical industries
• Pneumatic operations
How much does the switch weigh?
It tips the scales at only 16g, for easy handling and minimal system strain.
Does this device function reliably in hot temperatures?
Yes, you can use it in challenging settings where temperatures reach between -40°C and +80°C.
