Norgren Plug In Flush NPN Solid State Switch Pneumatic Cylinder & Actuator Switch M/50/EAP Series, 30V dc LED Indicator
- RS Stock No.:
- 218-0609
- Mfr. Part No.:
- M/50/EAP/10V
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£44.47
(exc. VAT)
£53.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 18 unit(s) shipping from 10 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £44.47 |
| 5 - 9 | £43.58 |
| 10 + | £42.68 |
*price indicative
- RS Stock No.:
- 218-0609
- Mfr. Part No.:
- M/50/EAP/10V
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Cylinder & Actuator Switch | |
| Series | M/50/EAP | |
| Electrical Connection Type | Plug In | |
| Mount Type | Flush | |
| Operation Type | NPN | |
| Sub Type | Solid State Switch | |
| Voltage | 30V dc | |
| Housing Material | Plastic | |
| For Use With | KA/8000/M, RA/8000/M | |
| LED Indicator | Yes | |
| IP Rating | IP67, IP68 | |
| Switching Current | 100mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Depth | 10mm | |
| Standards/Approvals | cULus, EN 60529, CE | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Cylinder & Actuator Switch | ||
Series M/50/EAP | ||
Electrical Connection Type Plug In | ||
Mount Type Flush | ||
Operation Type NPN | ||
Sub Type Solid State Switch | ||
Voltage 30V dc | ||
Housing Material Plastic | ||
For Use With KA/8000/M, RA/8000/M | ||
LED Indicator Yes | ||
IP Rating IP67, IP68 | ||
Switching Current 100mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Depth 10mm | ||
Standards/Approvals cULus, EN 60529, CE | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

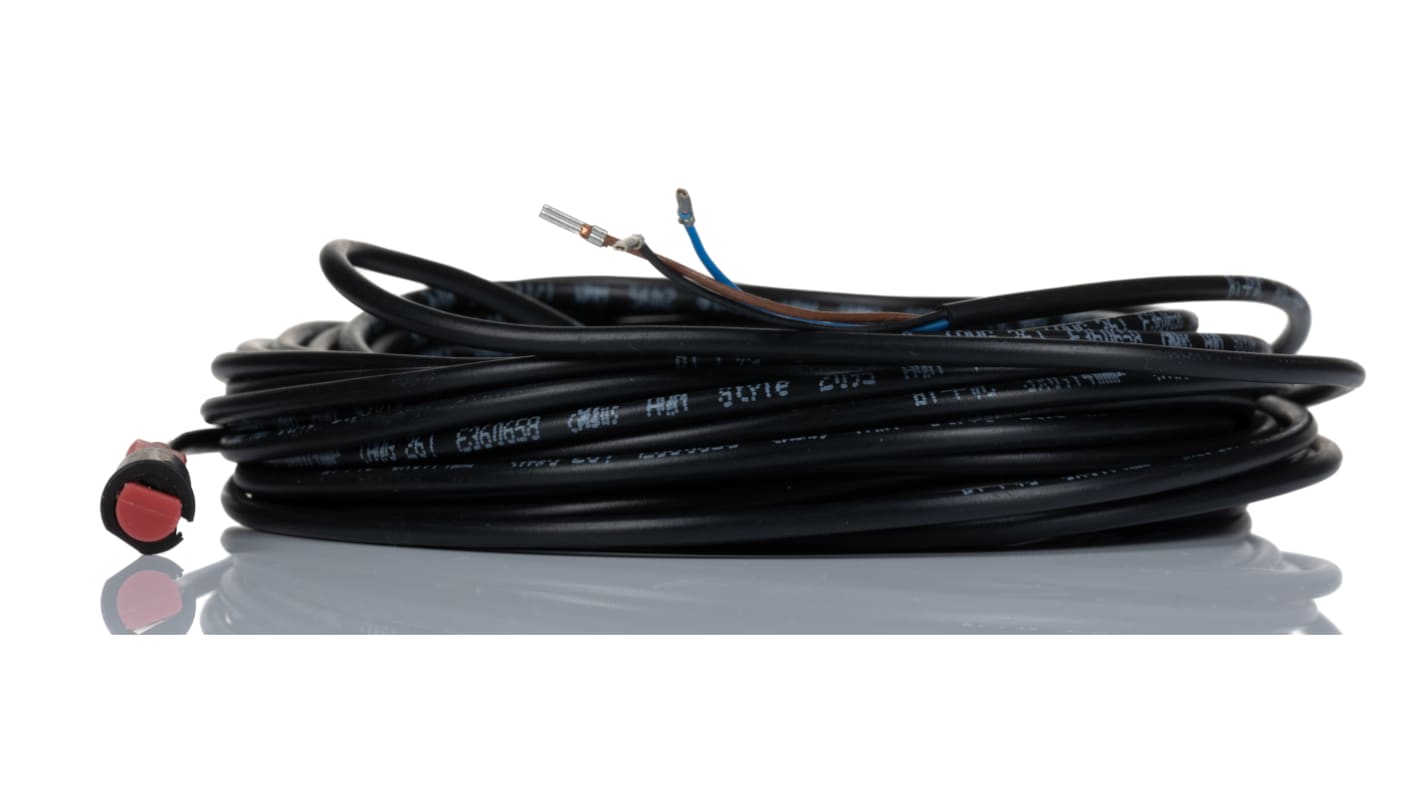

IMI Norgren Pneumatic Cylinder and Actuator Switch, 10m Cable Length, 10 to 30V DC Operating Voltage - M/50/EAP/10V
Fine-tune the control of your automated equipment with this pneumatic cylinder and actuator switch from IMI Norgren. It has a snappy reaction time of less than 0.1ms, so you benefit from lightning-fast responses. The plastic housing is resistant to wear and corrosion, so it can stand up to use in harsh industrial environments. A cable length of 10m means this switch can go the distance when you need to make connections across larger spaces.
Features & Benefits
• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• IP67 rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 seconds
• Yellow LED indicator makes it a cinch to check the switch's status
• Switching voltage of 10 to 30V DC for use in low-power systems
Applications
• Manufacturing equipment
• Construction machinery
• Food production
What cylinders are compatible with this switch?
This nifty accessory is compatible with all cylinders that have a magnetic piston, so it's a versatile piece of kit.
