MPN

SMCVBA Pneumatic Booster Regulator, G 3/8

RS Stock No.:: 268-9737
Mfr. Part No.:: VBA20A-F03GN
Brand:: SMC

SMCVBA Pneumatic Booster Regulator, G 3/8

View this category

Subtotal (1 unit)*

£715.65

(exc. VAT)

£858.78

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£715.65

*price indicative

RS Stock No.:: 268-9737
Mfr. Part No.:: VBA20A-F03GN
Brand:: SMC

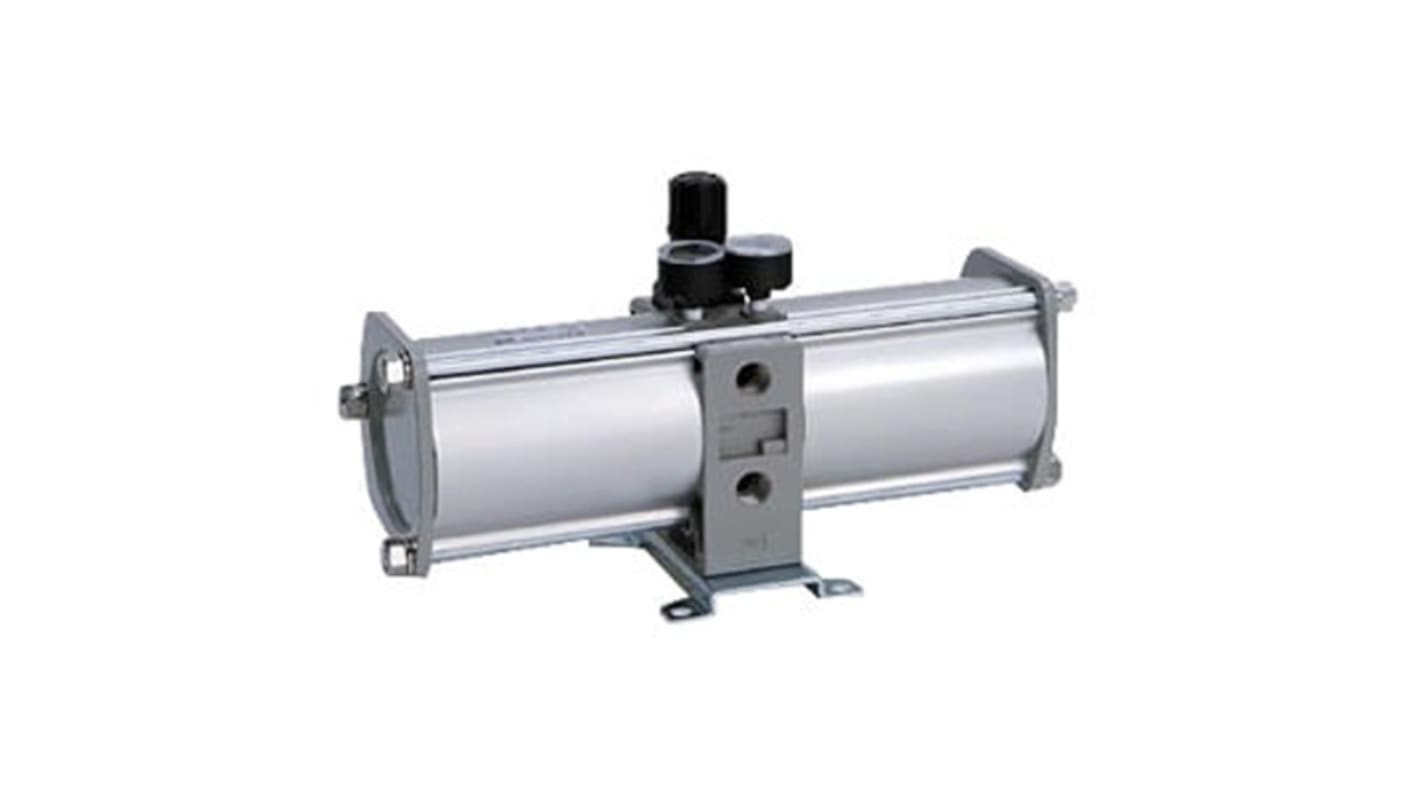

SMC VBA Series Pneumatic Booster Regulator, 20 Bar Maximum Input Pressure, 1:2 Pressure Increase Ratio - VBA20A-F03GN

This pneumatic booster regulator is designed for efficient pressure control in various industrial applications. Capable of handling a maximum input pressure of 20 bar, it features a handle-operated design for optimal user convenience. The unit includes a pressure gauge and operates effectively at temperatures ranging from +2°C to +50°C, making it suitable for a wide range of environments.

Features & Benefits

• Pressure increase ratio of 1:2 allows for enhanced efficiency
• Maximum operating pressure set at 1.0 MPa ensures reliability
• Handle-operated adjustment provides ease of use in adjustments
• Constructed for both high performance and durability
• Built-in pressure gauge for precise monitoring of levels
• Grease-lubricated mechanism promotes minimal maintenance needs

Applications

• Used with compressed air systems for effective regulation
• Ideal for precision pressure control in machinery operations
• Utilised in pneumatic tools to enhance performance
• Suitable for requiring noise reduction and reliability
• Common in assembly lines where pressure consistency is critical

What is the maximum ambient temperature this device can operate in?

It can function effectively in temperatures up to 50°C, ensuring versatility in various environments.

What is the significance of the pressure increase ratio in operations?

The 1:2 pressure increase ratio allows for substantial pressure enhancement, facilitating efficient operation of pneumatic systems.

Does it require any specific lubrication practices?

This device is designed to operate using grease lubrication, reducing the need for complex maintenance arrangements.

How does the inclusion of a pressure gauge improve functionality?

The pressure gauge provides real-time readings, allowing for precise control and adjustments to maintain optimal operating conditions.

What kind of connections does this regulator support?

It supports three pneumatic connections via G 3/8 ports, offering flexibility in different assembly configurations.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Pressure Increase Ratio	1:2
	Maximum Input Pressure	20bar
	Port Connection	G 3/8
	Manufacturer Series	VBA
	Pressure Gauge	Yes
	Weight	3.9kg
	Maximum Operating Temperature	+50°C
	Minimum Set Pressure	0.2MPa
	Maximum Set Pressure	1MPa
	Minimum Operating Temperature	+2°C

	Select all
	Brand SMC
	Pressure Increase Ratio 1:2
	Maximum Input Pressure 20bar
	Port Connection G 3/8
	Manufacturer Series VBA
	Pressure Gauge Yes
	Weight 3.9kg
	Maximum Operating Temperature +50°C
	Minimum Set Pressure 0.2MPa
	Maximum Set Pressure 1MPa
	Minimum Operating Temperature +2°C
