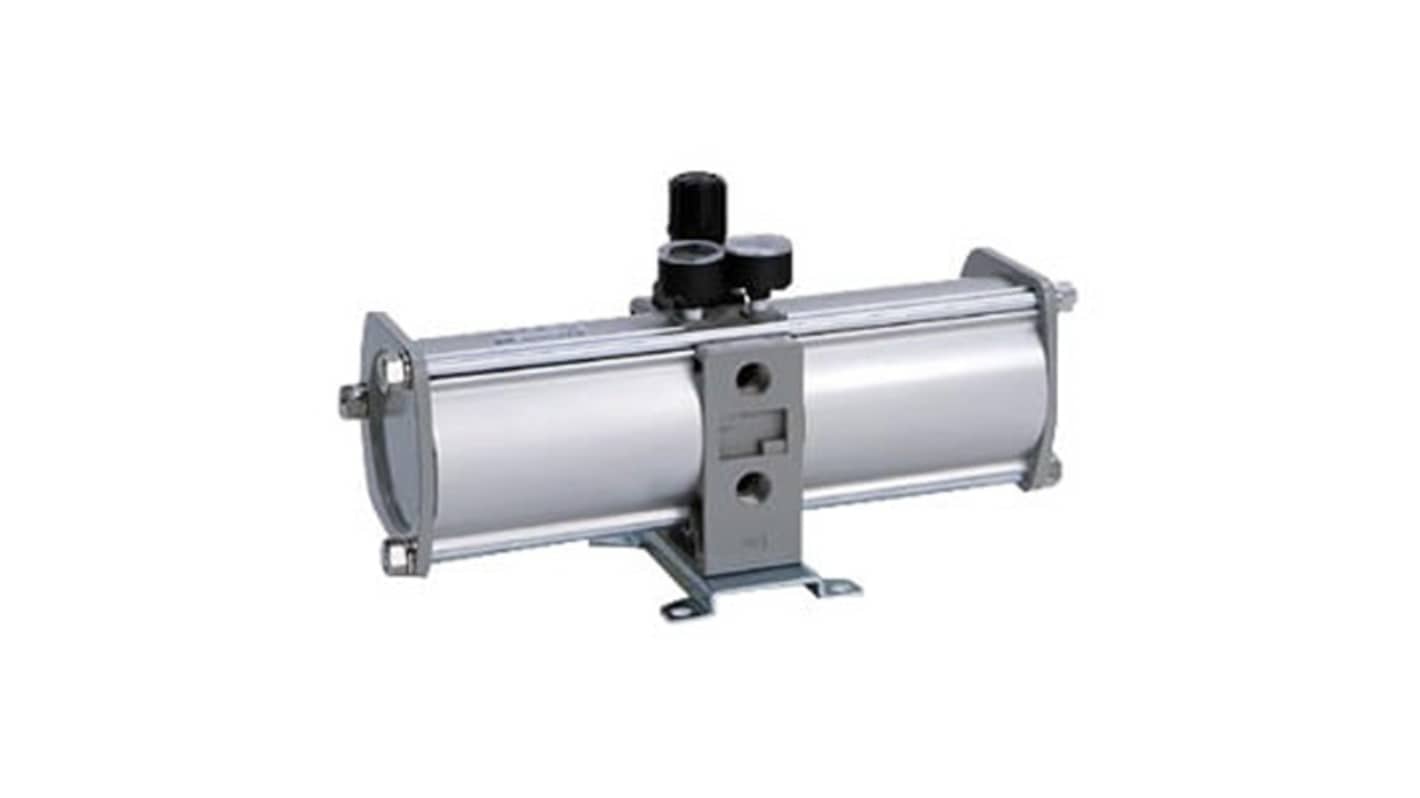

SMC VBA Pneumatic Booster Regulator, 1/2 in G
- RS Stock No.:
- 395-343
- Mfr. Part No.:
- VBA42A-F04GN
- Brand:
- SMC
Subtotal (1 unit)*
£933.48
(exc. VAT)
£1,120.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £933.48 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 395-343
- Mfr. Part No.:
- VBA42A-F04GN
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Booster Regulator | |
| Pressure Increase Ratio | 2:1 | |
| Maximum Flow Rate | 1900L/min | |
| Maximum Input Pressure | 1.6kPa | |
| Connection Thread Standard | G | |
| Port Size | 1/2 in G | |
| Series | VBA | |
| Pressure Gauge | Yes | |
| Minimum Set Pressure | 0.2MPa | |
| Maximum Set Pressure | 2.0MPa | |
| Minimum Operating Temperature | 2°C | |
| Maximum Operating Temperature | 50°C | |
| Weight | 8.6kg | |
| Standards/Approvals | RoHS | |
| Better World Claim | Saves Energy | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Booster Regulator | ||
Pressure Increase Ratio 2:1 | ||
Maximum Flow Rate 1900L/min | ||
Maximum Input Pressure 1.6kPa | ||
Connection Thread Standard G | ||
Port Size 1/2 in G | ||
Series VBA | ||
Pressure Gauge Yes | ||
Minimum Set Pressure 0.2MPa | ||
Maximum Set Pressure 2.0MPa | ||
Minimum Operating Temperature 2°C | ||
Maximum Operating Temperature 50°C | ||
Weight 8.6kg | ||
Standards/Approvals RoHS | ||
Better World Claim Saves Energy | ||
Better World Product Yes | ||
The SMC Booster regulator designed to increase local line pressure without requiring additional power. It operates efficiently with compressed air and features a floating piston structure for reliable performance.
Compact design
Built-in filter
