SMC Thermo Chiller Thermo Chiller, HRSE018-A-23

RS Stock No.:: 196-4433
Mfr. Part No.:: HRSE018-A-23
Brand:: SMC

SMC Thermo Chiller Thermo Chiller, HRSE018-A-23

View all Pneumatic Air Dryers

Subtotal (1 unit)*

£4,330.07

(exc. VAT)

£5,196.08

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

1 unit(s) shipping from 14 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4,330.07

*price indicative

RS Stock No.:: 196-4433
Mfr. Part No.:: HRSE018-A-23
Brand:: SMC

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Sub Type	Thermo Chiller
	Product Type	Thermo Chiller
	Inlet Port Size	1/2 in
	Maximum Flow Rate	7L/min
	Series	HRSE
	Outlet Port Size	1/2 in Rc
	Overall Length	377mm
	Inlet Thread Standard	Rc
	Outlet Thread Standard	Rc
	Maximum Inlet Pressure	0.11MPa
	Minimum Inlet Pressure	0.08MPa
	Minimum Operating Temperature	5°C
	Maximum Operating Temperature	40°C
	Overall Height	615mm
	Standards/Approvals	CE, ISO 10218-1, ISO 4414, RoHS, IEC 60204-1
	Overall Width	456mm

	Select all
	Brand SMC
	Sub Type Thermo Chiller
	Product Type Thermo Chiller
	Inlet Port Size 1/2 in
	Maximum Flow Rate 7L/min
	Series HRSE
	Outlet Port Size 1/2 in Rc
	Overall Length 377mm
	Inlet Thread Standard Rc
	Outlet Thread Standard Rc
	Maximum Inlet Pressure 0.11MPa
	Minimum Inlet Pressure 0.08MPa
	Minimum Operating Temperature 5°C
	Maximum Operating Temperature 40°C
	Overall Height 615mm
	Standards/Approvals CE, ISO 10218-1, ISO 4414, RoHS, IEC 60204-1
	Overall Width 456mm

COO (Country of Origin):: FR

SMC HRSE Series Thermo Chiller, 7L/min Maximum Flow Rate, 0.11MPa Maximum Inlet Pressure - HRSE018-A-23

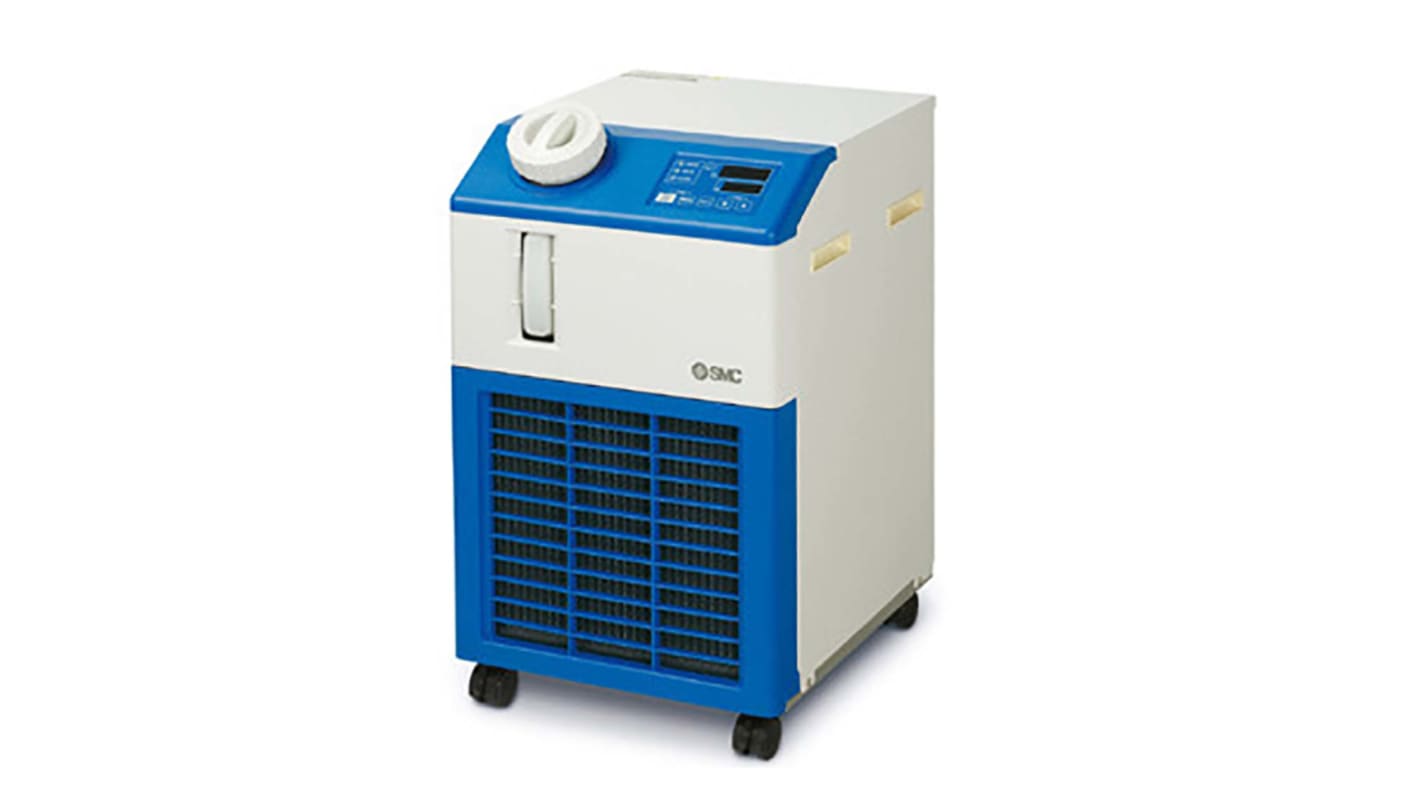

This thermo chiller is a compact circulating-fluid temperature controller designed for precision cooling in industrial settings. It uses air-cooled refrigeration and an ON/OFF compressor control to regulate fluid temperature within a controlled range. The unit accepts tap water or a 15% ethylene glycol mixture as the working fluid and integrates multiple contact materials compatible with common coolant media.

Features and Benefits:

• 1400W cooling capacity provides consistent heat removal
• Temperature stability ±2°C ensures steady process control
• Setpoint range 10-30°C supports varied process requirements
• Pump flow 7L/min permits reliable coolant circulation
• Rc 1/2 inlet and outlet minimise connection complexity
• Rated current 4.2A keeps electrical demand predictable

Applications

• Suitable for temperature control in robotic systems
• Ideal for cooling small industrial chillers and tooling
• Used with benchtop process equipment requiring stable cooling
• Can be used for heat removal in laboratory test rigs
• Employed where compact footprint and moderate flow suffice

What refrigerant is used and how does it affect operation?

The unit uses R407C, an HFC refrigerant suited to the specified air-cooled refrigeration loop and the stated cooling capacity.

What tank volume is provided for the circulating medium?

The internal reservoir holds 5L, allowing short-term buffering and simplified fluid management.

What inlet pressure range is acceptable for the pump?

The pump operates with inlet pressures between 0.08 and 0.11 MPa, suitable for low-pressure supply systems.

Which materials contact the circulating fluid and why is that important?

Contact materials include stainless steel, brass, bronze, ceramics, plastics such as PP, PE, POM, and elastomer EPDM, chosen to maintain compatibility with water and ethylene glycol solutions.
