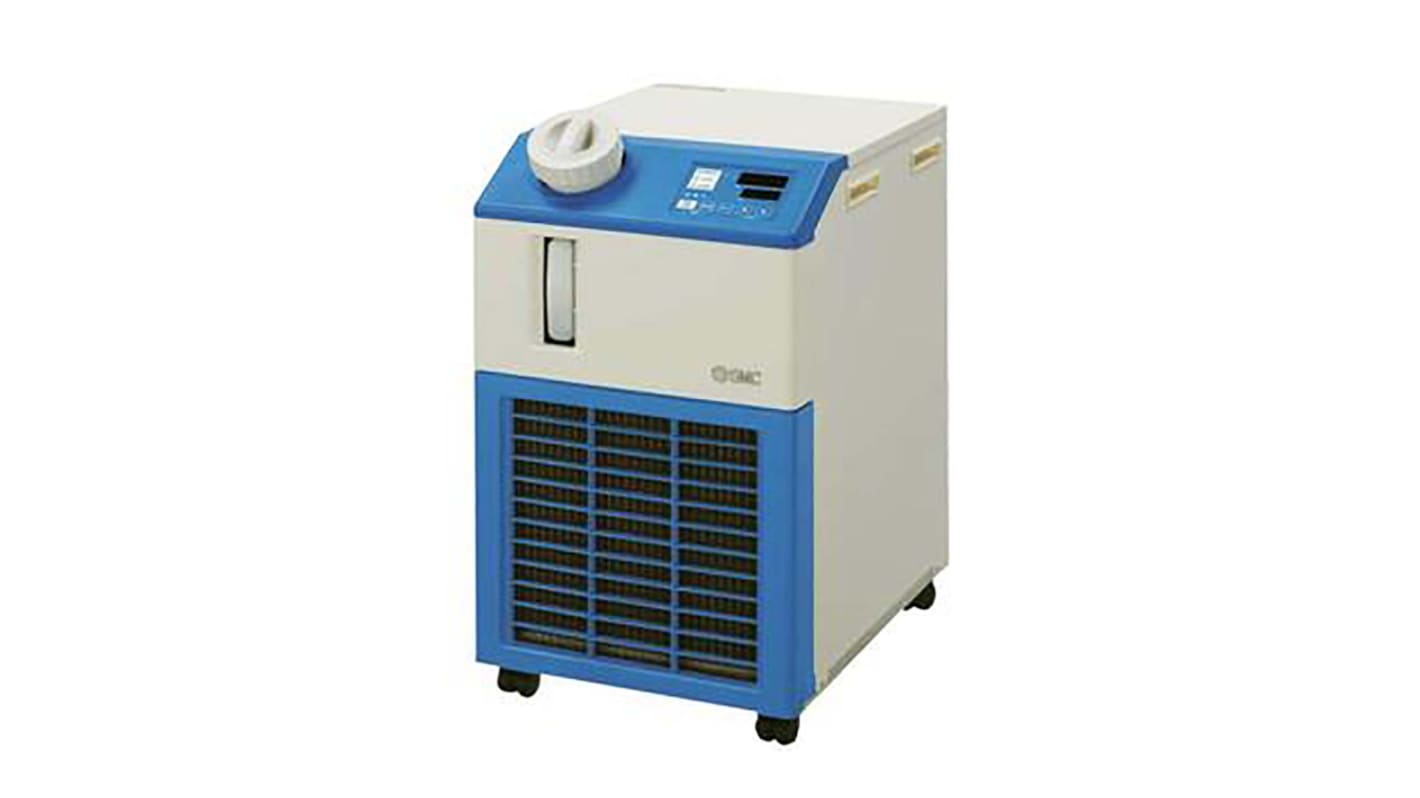

SMC Thermo Chiller Thermo Chiller, HRS012-AF-20

RS Stock No.:: 196-4430
Mfr. Part No.:: HRS012-AF-20
Brand:: SMC

SMC Thermo Chiller Thermo Chiller, HRS012-AF-20

View all Pneumatic Air Dryers

Subtotal (1 unit)*

£4,649.87

(exc. VAT)

£5,579.84

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

4 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4,649.87

*price indicative

RS Stock No.:: 196-4430
Mfr. Part No.:: HRS012-AF-20
Brand:: SMC

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Thermo Chiller
	Sub Type	Thermo Chiller
	Inlet Port Size	1/2 in
	Maximum Flow Rate	27L/min
	Series	HRS
	Outlet Port Size	Rc 1/2
	Overall Length	377mm
	Minimum Operating Temperature	5°C
	Maximum Inlet Pressure	0.18MPa
	Minimum Inlet Pressure	0.13MPa
	Outlet Thread Standard	Rc
	Maximum Operating Temperature	40°C
	Overall Width	521mm
	Overall Height	650mm
	Standards/Approvals	ISO 4414, RoHS, UL, IEC 60204-1, CE, ISO 10218-1

	Select all
	Brand SMC
	Product Type Thermo Chiller
	Sub Type Thermo Chiller
	Inlet Port Size 1/2 in
	Maximum Flow Rate 27L/min
	Series HRS
	Outlet Port Size Rc 1/2
	Overall Length 377mm
	Minimum Operating Temperature 5°C
	Maximum Inlet Pressure 0.18MPa
	Minimum Inlet Pressure 0.13MPa
	Outlet Thread Standard Rc
	Maximum Operating Temperature 40°C
	Overall Width 521mm
	Overall Height 650mm
	Standards/Approvals ISO 4414, RoHS, UL, IEC 60204-1, CE, ISO 10218-1

COO (Country of Origin):: JP

SMC HRS Series Thermo chiller, 27 Maximum Flow Rate, 1/2 in Outlet Port Thread Size - HRS012-AF-20

This thermo chiller is a Compact and lightweight cooling system designed for precise temperature control in industrial applications. With a typical flow rate of 7L/min and a maximum flow rate of 27L/min, it effectively maintains ambient temperatures ranging from +5°C to +40°C. The unit operates with a single-phase electrical supply of 200V to 230V AC, featuring a 1/2 inch outlet port.

Features & Benefits

• Temperature stability of ±0.1°C for accuracy
• Air-cooled refrigeration method ensures reliable cooling
• PID control regulates temperature efficiently
• Cooling capacity of up to 1300W suitable for demanding tasks
• Stainless steel and copper components enhance durability
• Minimal noise level at 60dB providing quieter operation

Applications

• Used for precision cooling in electronics manufacturing
• Suitable for temperature control in automation systems
• Designed for requiring stable cooling in mechanical processes
• Ideal for maintaining optimal operating conditions in laboratory environments

What is the rated power consumption during operation?

The rated power consumption is 0.9kVA at 50Hz, ensuring energy efficiency while operating effectively.

How does the design accommodate high ambient temperatures?

This unit functions within an ambient temperature range of +5°C to +40°C, providing versatility in various environments.

What circulating fluids can be utilised with this unit?

The chiller supports tap water and a 15% ethylene glycol aqueous solution, broadening its operational versatility.

What are the implications of the maximum pump head specifications?

With a maximum pump head of 14m, it can efficiently circulate fluids across substantial distances, enhancing system integration.

What maintenance considerations should be taken into account?

Regular checks on the circulating fluid and outlet port for blockages will ensure optimal performance and longevity of the unit.
