SMC Thermo Chiller Thermo chiller, HRS050-AF-20
- RS Stock No.:
- 196-4431
- Mfr. Part No.:
- HRS050-AF-20
- Brand:
- SMC
Subtotal (1 unit)*
£7,995.25
(exc. VAT)
£9,594.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £7,995.25 |
*price indicative
- RS Stock No.:
- 196-4431
- Mfr. Part No.:
- HRS050-AF-20
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Type | Thermo Chiller | |
Maximum Flow Rate | 42L/min | |
Manufacturer Series | HRS | |
Outlet Port Size | Rc 1/2 | |
Typical Flow Rate | 28L/min | |
Electrical Supply | 200 → 230V ac | |
Outlet Port - Thread Size | 1/2in | |
Maximum Ambient Operating Temperature | +40°C | |
Minimum Ambient Operating Temperature | +5°C | |
Ambient Operating Temperature Range | +5 → +40°C | |
Overall Dimensions | 377 x 592 x 976mm | |
Overall Width | 592mm | |
Overall Length | 377mm | |
Overall Height | 976mm | |
Select all | ||
---|---|---|
Brand SMC | ||
Type Thermo Chiller | ||
Maximum Flow Rate 42L/min | ||
Manufacturer Series HRS | ||
Outlet Port Size Rc 1/2 | ||
Typical Flow Rate 28L/min | ||
Electrical Supply 200 → 230V ac | ||
Outlet Port - Thread Size 1/2in | ||
Maximum Ambient Operating Temperature +40°C | ||
Minimum Ambient Operating Temperature +5°C | ||
Ambient Operating Temperature Range +5 → +40°C | ||
Overall Dimensions 377 x 592 x 976mm | ||
Overall Width 592mm | ||
Overall Length 377mm | ||
Overall Height 976mm | ||

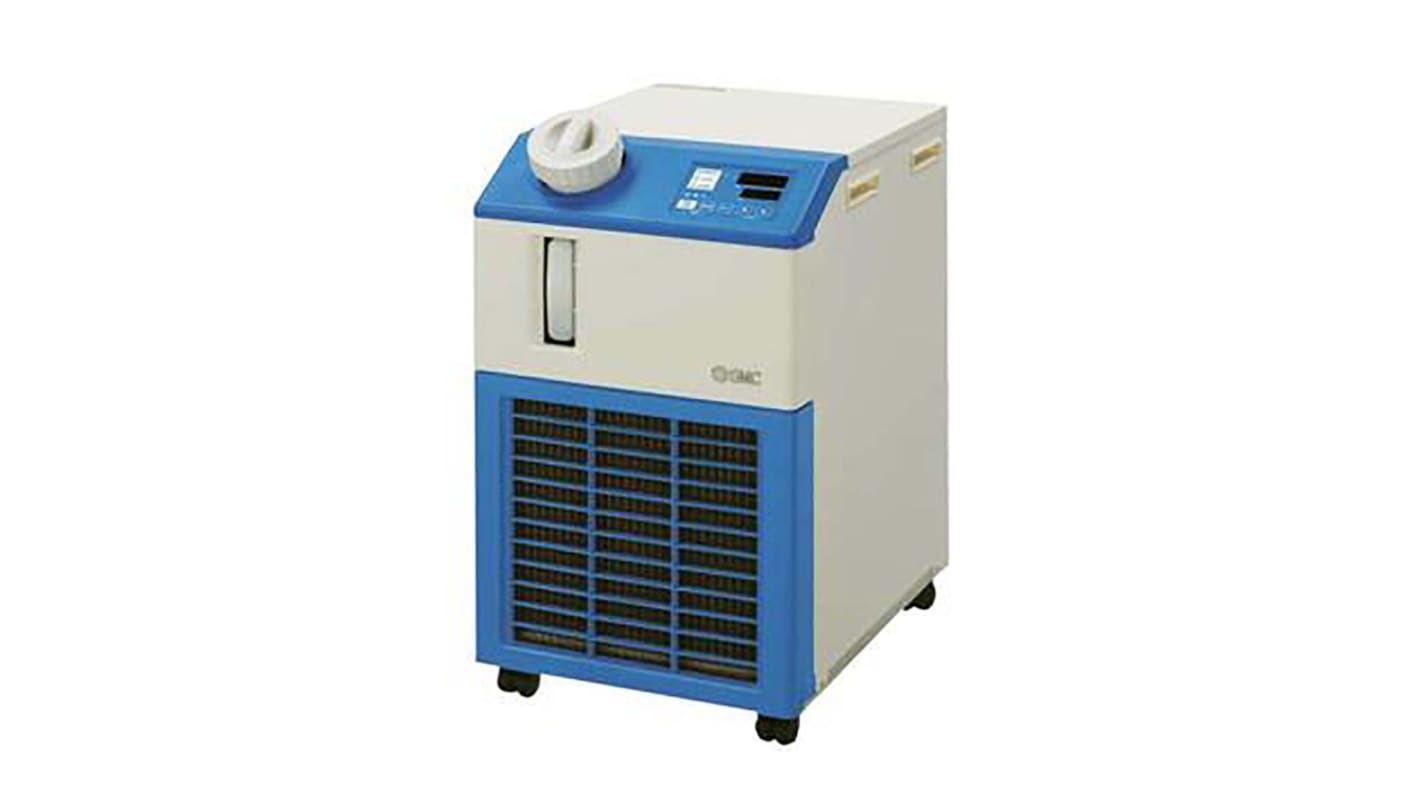

SMC HRS Series Thermo chiller, 42 L/min Maximum Flow Rate, 200 to 230V AC Electrical Supply - HRS050-AF-20
This thermo chiller is designed for precise temperature control in various industrial applications. As a compact type, it features a maximum flow rate of 42 L/min and operates effectively in ambient conditions ranging from +5°C to +40°C. Its dimensions are 377mm in length, 592mm in width, and 976mm in height, making it suitable for limited spaces while delivering high-performance cooling.
Features & Benefits
• PID control ensures accurate temperature regulation
• Set temperature range between 5°C and 40°C
• Temperature stability maintained within ±0.1°C
• Air-cooled refrigeration method enhances performance
• Compact design allows easy integration into existing setups
• Circulating fluid can be tap water or a glycol solution
• Set temperature range between 5°C and 40°C
• Temperature stability maintained within ±0.1°C
• Air-cooled refrigeration method enhances performance
• Compact design allows easy integration into existing setups
• Circulating fluid can be tap water or a glycol solution
Applications
• Used in automation systems for precise thermoregulation
• Effective in electronics cooling
• Utilised in mechanical engineering for component cooling
• Suitable for laboratory environments requiring stable conditions
• Effective in electronics cooling
• Utilised in mechanical engineering for component cooling
• Suitable for laboratory environments requiring stable conditions
What is the cooling capacity of this unit?
The cooling capacity ranges from 4700 W at 50 Hz to 5100 W at 60 Hz, providing reliable performance for various cooling needs.
How does it maintain temperature stability?
The system employs advanced PID control, which continuously adjusts the cooling output to ensure minimal fluctuations in temperature, leading to enhanced stability.
Is it suitable for outdoor use?
It is designed for operation within a specified ambient temperature range and should not exceed +40°C
hence, it is best suited for controlled environments rather than outdoor settings.
What type of refrigerant does it use?
This chilling unit utilises R410A as its refrigerant, which is an environmentally friendly option compliant with modern industry standards.
