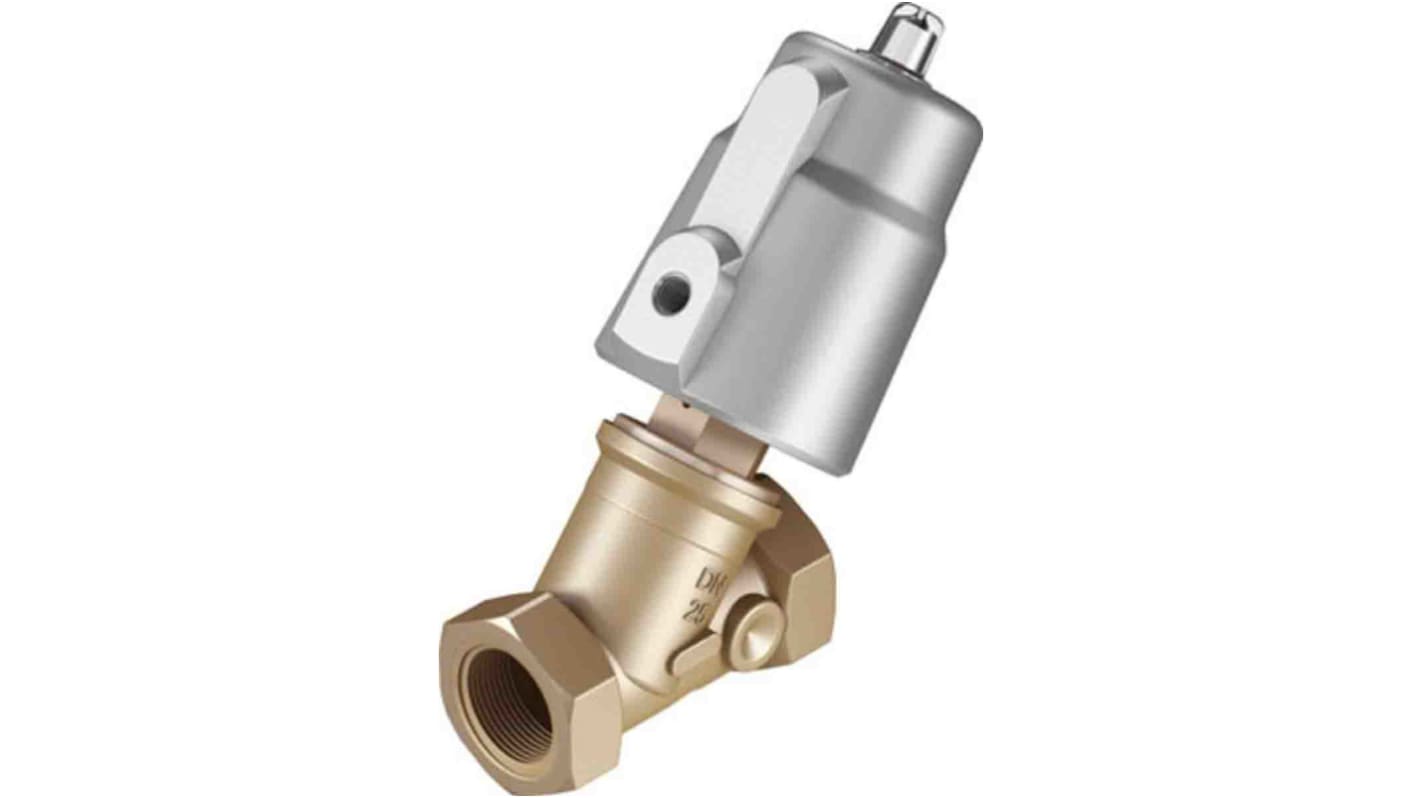

Festo Angle Seat type Pneumatic Actuated Valve, 12 bar, DIN ISO 228, Female 29 mm
- RS Stock No.:
- 203-7112
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G114-290-M1-H3ALT-80-12
- Brand:
- Festo
Subtotal (1 unit)*
£432.54
(exc. VAT)
£519.05
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £432.54 |
*price indicative
- RS Stock No.:
- 203-7112
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G114-290-M1-H3ALT-80-12
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Inlet Connection Type | Threaded | |
| Valve Type | Angle Seat | |
| Inlet Port Size | 29 mm | |
| Default Valve Position | NC | |
| Outlet Connection Type | Threaded | |
| Return Type | Spring | |
| Outlet Port Size | 1 to 1/4 in | |
| Inlet Thread Standard | DIN ISO 228 | |
| Maximum Operating Pressure | 12 bar | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Outlet Thread Standard | G | |
| Minimum Operating Temperature | -40°C | |
| Valve Material | Gunmetal (Red Brass) | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | EU Directive pressure devices | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Inlet Connection Type Threaded | ||
Valve Type Angle Seat | ||
Inlet Port Size 29 mm | ||
Default Valve Position NC | ||
Outlet Connection Type Threaded | ||
Return Type Spring | ||
Outlet Port Size 1 to 1/4 in | ||
Inlet Thread Standard DIN ISO 228 | ||
Maximum Operating Pressure 12 bar | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Outlet Thread Standard G | ||
Minimum Operating Temperature -40°C | ||
Valve Material Gunmetal (Red Brass) | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals EU Directive pressure devices | ||
The Festo VZXF series modular pneumatically actuated angle seat valve is made of red brass. It has poppet valve structure with piston actuator and closed position NPT thread. The maximum medium pressure is 16 bar.
Line connection = NPT 1/2
Type of actuation = pneumatic
Assembly position = any
Mounting type = line installation
