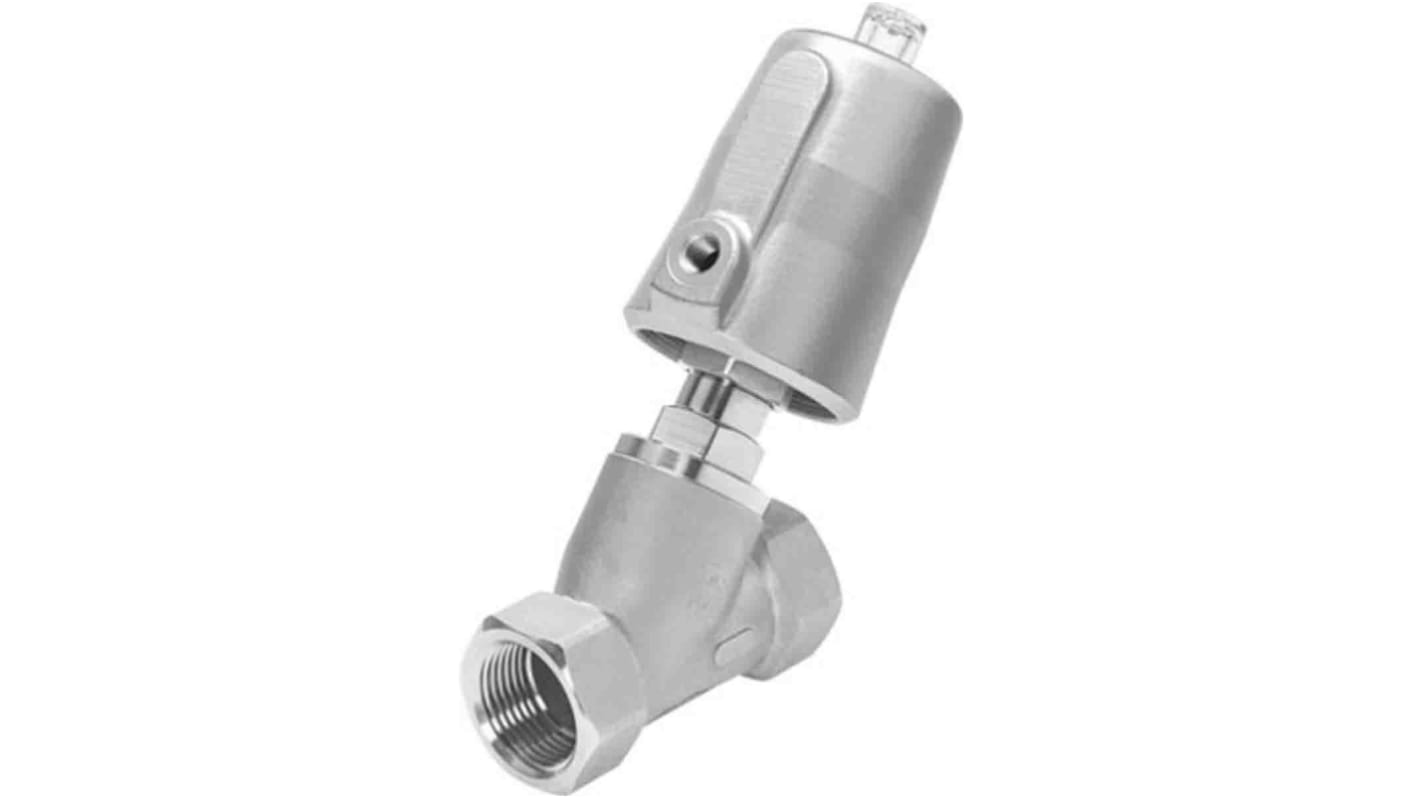

Festo Angle Seat type Pneumatic Actuated Valve, 12 bar, DIN ISO 228, Female 1/8 in
- RS Stock No.:
- 203-7014
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G2-450-M1-V4V4T-80-12
- Brand:
- Festo
Subtotal (1 unit)*
£843.31
(exc. VAT)
£1,011.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £843.31 |
*price indicative
- RS Stock No.:
- 203-7014
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G2-450-M1-V4V4T-80-12
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Valve Type | Angle Seat | |
| Inlet Connection Type | Threaded | |
| Inlet Port Size | 1/8 in | |
| Default Valve Position | NC | |
| Outlet Connection Type | Threaded | |
| Return Type | Spring | |
| Outlet Port Size | 2 in | |
| Maximum Operating Pressure | 12 bar | |
| Inlet Thread Standard | DIN ISO 228 | |
| Inlet Port Gender | Female | |
| Outlet Thread Standard | G | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -40°C | |
| Valve Material | Stainless Steel Casting | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | Conforms to RoHS, EU Directive pressure devices | |
| Model Number | 1002531 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Valve Type Angle Seat | ||
Inlet Connection Type Threaded | ||
Inlet Port Size 1/8 in | ||
Default Valve Position NC | ||
Outlet Connection Type Threaded | ||
Return Type Spring | ||
Outlet Port Size 2 in | ||
Maximum Operating Pressure 12 bar | ||
Inlet Thread Standard DIN ISO 228 | ||
Inlet Port Gender Female | ||
Outlet Thread Standard G | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -40°C | ||
Valve Material Stainless Steel Casting | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals Conforms to RoHS, EU Directive pressure devices | ||
Model Number 1002531 | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Actuated Valve, 12 bar Maximum Operating Pressure, Stainless Steel Casting Valve - VZXF-L-M22C-M-A-G2-450-M1-V4V4T-80-12, Numeric Part Number: 1002531
This pneumatic-actuated valve controls fluid flow in automated systems using a spring-return actuator and a normally closed seating arrangement. It is designed for threaded pipe connections and performs in demanding process environments where elevated temperatures and moderate operating pressures are present.
Features and Benefits:
• Spring return ensures valve reverts to closed position under loss of actuation
• Maximum working pressure 12 bar supports pressurised system operation
• Rated for continuous service up to 200°C enabling high-temperature medium use
• Angle seat design reduces flow restriction for improved media passage
• Stainless steel casting body provides corrosion-resistant structural durability
• Female threaded G-port outlet with DIN ISO 228 female inlet for secure connections
• Maximum working pressure 12 bar supports pressurised system operation
• Rated for continuous service up to 200°C enabling high-temperature medium use
• Angle seat design reduces flow restriction for improved media passage
• Stainless steel casting body provides corrosion-resistant structural durability
• Female threaded G-port outlet with DIN ISO 228 female inlet for secure connections
Applications
• Suitable for steam and hot fluid control in process lines
• Ideal for industrial automation requiring Compact actuated valves
• Used with plant pipework needing threaded G-port connections
• Can be used for high-temperature shut-off in manufacturing systems
• Used for pneumatic control where spring-return NC behaviour is required
• Ideal for industrial automation requiring Compact actuated valves
• Used with plant pipework needing threaded G-port connections
• Can be used for high-temperature shut-off in manufacturing systems
• Used for pneumatic control where spring-return NC behaviour is required
What connection types are provided for pipeline integration?
It offers female threaded connections on both inlet and outlet, with the inlet conforming to DIN ISO 228 and the outlet to G threading standards.
How does the valve body material influence compatibility with process fluids?
The valve body is a stainless steel casting, which improves resistance to corrosion and supports use with a wide range of industrial media.
What is the actuator return mechanism and its operational implication?
A spring-return arrangement drives the valve to its default closed state, providing fail-safe shut-off when pneumatic supply is removed.
What port sizes are available for connecting to existing systems?
The unit provides a 1/8 in inlet and a 2 in outlet to accommodate differing supply and delivery pipework.
