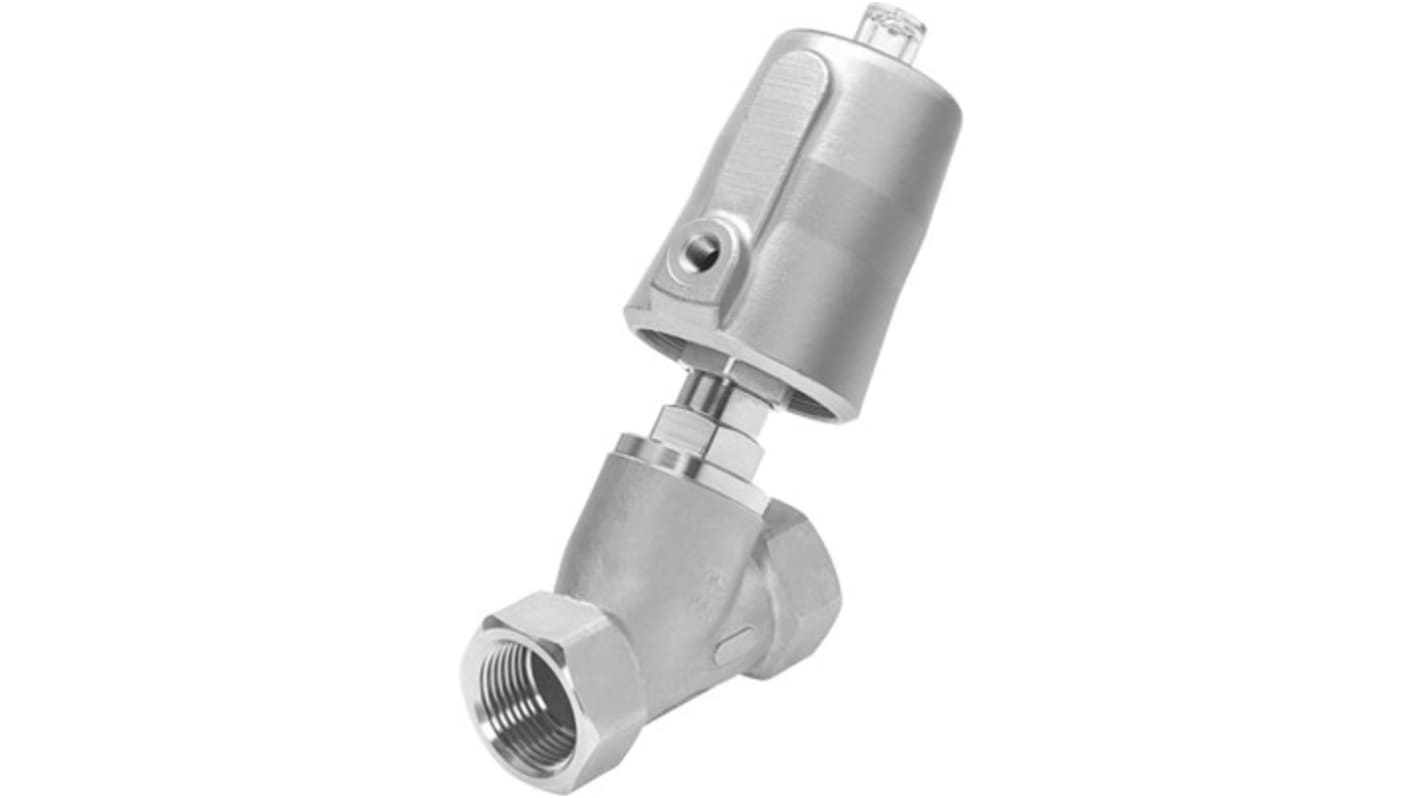

Festo Angle Seat type Pneumatic Actuated Valve, 40 bar 1.25 in
- RS Stock No.:
- 163-7376
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G114-290-M1-H3B1T-50-7
- Brand:
- Festo
Subtotal (1 unit)*
£219.33
(exc. VAT)
£263.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £219.33 |
*price indicative
- RS Stock No.:
- 163-7376
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G114-290-M1-H3B1T-50-7
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Valve Type | Angle Seat | |
| Inlet Connection Type | Threaded | |
| Inlet Port Size | 1.25 in | |
| Default Valve Position | NC | |
| Outlet Connection Type | Threaded | |
| Return Type | Spring | |
| Outlet Port Size | 1.25 in | |
| Maximum Operating Pressure | 40 bar | |
| Valve Material | Gunmetal (Red Brass) | |
| Outlet Thread Standard | G | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Valve Type Angle Seat | ||
Inlet Connection Type Threaded | ||
Inlet Port Size 1.25 in | ||
Default Valve Position NC | ||
Outlet Connection Type Threaded | ||
Return Type Spring | ||
Outlet Port Size 1.25 in | ||
Maximum Operating Pressure 40 bar | ||
Valve Material Gunmetal (Red Brass) | ||
Outlet Thread Standard G | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Sturdy design
Stainless steel and gunmetal process valves with stainless steel, brass or aluminium actuators
For operating pressures up to 40 bar
Safety position “closing”
Different actuator sizes and housing materials
Selection of different seat and shaft seals
Flow direction is freely selectable
For liquids, gases and other easily contaminated media
Easy-to-clean design
