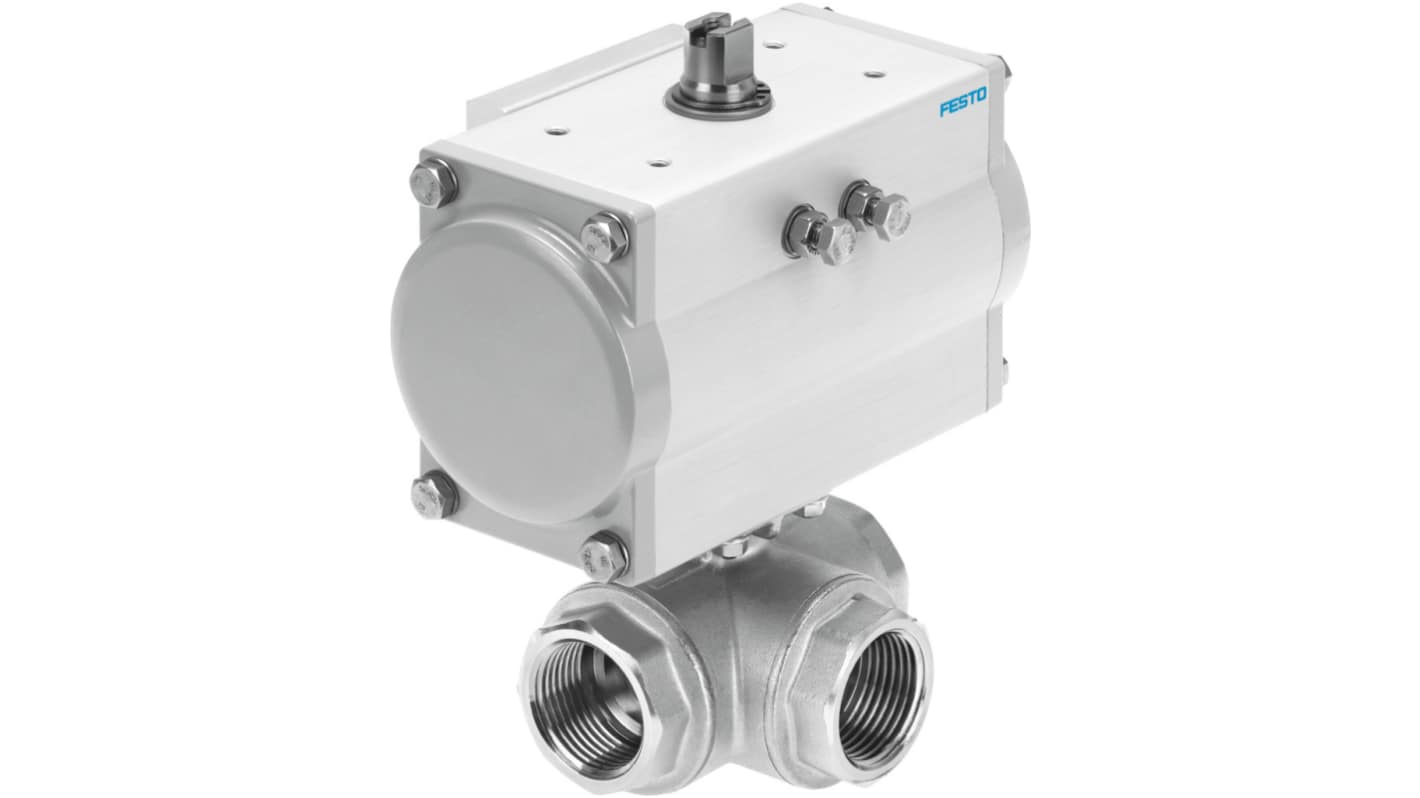

Festo Ball type Pneumatic Actuated Valve, Rp 1/2in, 25 bar
- RS Stock No.:
- 203-6036
- Mfr. Part No.:
- VZBM-A-1/2"-RP-25-F-3L-B2-PB20
- Brand:
- Festo
Subtotal (1 unit)*
£219.86
(exc. VAT)
£263.83
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £219.86 |
*price indicative
- RS Stock No.:
- 203-6036
- Mfr. Part No.:
- VZBM-A-1/2"-RP-25-F-3L-B2-PB20
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Thread Size | 1/2in | |
Valve Type | Ball | |
Default Valve Position | NC | |
Return Type | Spring | |
Thread Standard | Rp | |
Maximum Working Pressure | 25 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Thread Size 1/2in | ||
Valve Type Ball | ||
Default Valve Position NC | ||
Return Type Spring | ||
Thread Standard Rp | ||
Maximum Working Pressure 25 bar | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Actuated Valve, 1/2 in Thread size, 25 bar Maximum Pressure - VZBM-A-1/2-RP-25-F-3L-B2-PB20, Numeric Part Number: 8070268
This pneumatic actuated valve is a 3-way ball valve designed to facilitate precise control in various applications. Featuring a nominal diameter of DN 15 and a refined Rp1/2 thread size, it meets a maximum working pressure of 25 bar. Constructed from durable nickel-plated brass, this valve offers reliable performance even in demanding environments, ensuring longevity and efficiency in automation tasks.
Features & Benefits
• Effectively directs flow with a unique swivel drive design
• Operates efficiently under a pressure range of 5.5 to 8 bar
• Easy installation in any assembly position for flexibility
• Constructed with corrosion-resistant materials for enhanced durability
• Operates efficiently under a pressure range of 5.5 to 8 bar
• Easy installation in any assembly position for flexibility
• Constructed with corrosion-resistant materials for enhanced durability
Applications
• Utilised in automated control systems for fluid management
• Effective in pneumatic circuits to regulate airflow
• Suitable for industries handling neutral fluids and compressed air
• Ideal for requiring low maintenance, lubricated operation
• Effective in pneumatic circuits to regulate airflow
• Suitable for industries handling neutral fluids and compressed air
• Ideal for requiring low maintenance, lubricated operation
What is the expected medium temperature range for operation?
The valve operates effectively within a medium temperature range of -20 to 130 °C, catering to various industrial requirements.
How does the actuator enhance control in pneumatic applications?
The spring return feature ensures that the valve returns to a default closed position, enhancing safety and control in critical pneumatic systems.
What materials are used in the construction?
The valve features a housing made of nickel-plated brass, while the seals incorporate HNBR and PTFE. The ball and shaft are crafted from chrome-plated brass, ensuring resistance to wear and durability.
Can this valve be used for both gases and liquids?
Yes, it is compatible with compressed air, inert gases, and neutral fluids, making it versatile for diverse applications in industrial settings.
