Festo Ball type Pneumatic Actuated Valve, 25 bar, EN 10226-1 1.25 in

View all Pneumatic Actuated Valves

Subtotal (1 unit)*

£425.22

(exc. VAT)

£510.26

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£425.22

*price indicative

RS Stock No.:
203-5969
Mfr. Part No.:
VZBM-A-11/4"-RP-25-F-3L-B2-PB80
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Actuated Valve

Valve Type

Ball

Inlet Port Size

1.25 in

Default Valve Position

NC

Outlet Connection Type

Threaded

Return Type

Spring

Outlet Port Size

1.25 in

Maximum Operating Pressure

25 bar

Inlet Thread Standard

EN 10226-1

Minimum Operating Temperature

-20°C

Outlet Thread Standard

R

Valve Material

Nickel Plated Chrome Plated

Maximum Operating Temperature

130°C

Standards/Approvals

RoHS, ISO8573-1:2010

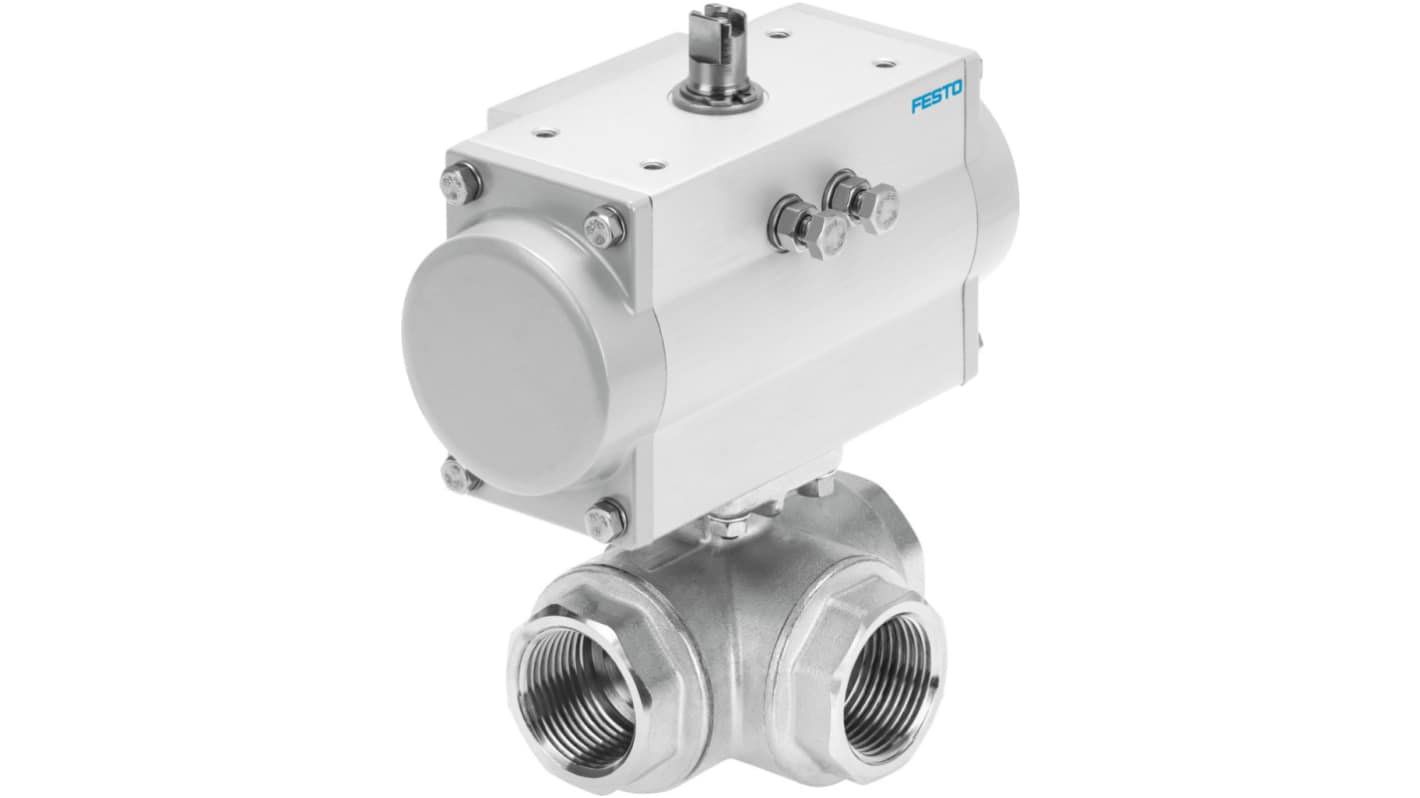

Festo Pneumatic Actuated Valve, 1-1/4 in Thread size, Ball Valve Type - VZBM-A-11/4-RP-25-F-3L-B2-PB80, Numeric Part Number: 8070271


This pneumatic actuated valve is a 3-way ball valve designed for efficient flow control in industrial applications. Constructed from nickel-plated brass, it features a nominal width of 1-1/4 in with an Rp thread for pneumatic actuation. The valve operates under a maximum pressure of 25 bar, suitable for a range of gaseous and fluid media.

Features & Benefits


• Pneumatic actuation provides precise and reliable operation

• Designed for various mounting positions for flexibility

• Spring return mechanism ensures fail-safe operation

• Notably low weight at 6.953kg aids in installation

• Corrosion resistance classification CRC 1 for durability

Applications


• Utilised in automated control systems for fluid handling

• Suitable for involving compressed air and neutral fluids

• Ideal for tasks requiring spring return for safety

• Used with industrial equipment that operates under high pressure

What is the operating temperature range for this valve?


The valve can operate effectively in temperatures between -20°C and 130°C, ensuring it can handle a wide variety of environments.

Can it be used with lubricated operation?


Yes, lubricated operation is possible but may be required for further use, making it adaptable for different operation preferences.

What materials are used in the construction of the valve?


The housing is made from nickel-plated brass, and the seals are composed of HNBR and PTFE, providing durability and ensuring compatibility with various media.

What type of fluids can this valve handle?


It is designed for use with compressed air, inert gases, water (without water vapour), and neutral fluids, offering versatility in applications.
