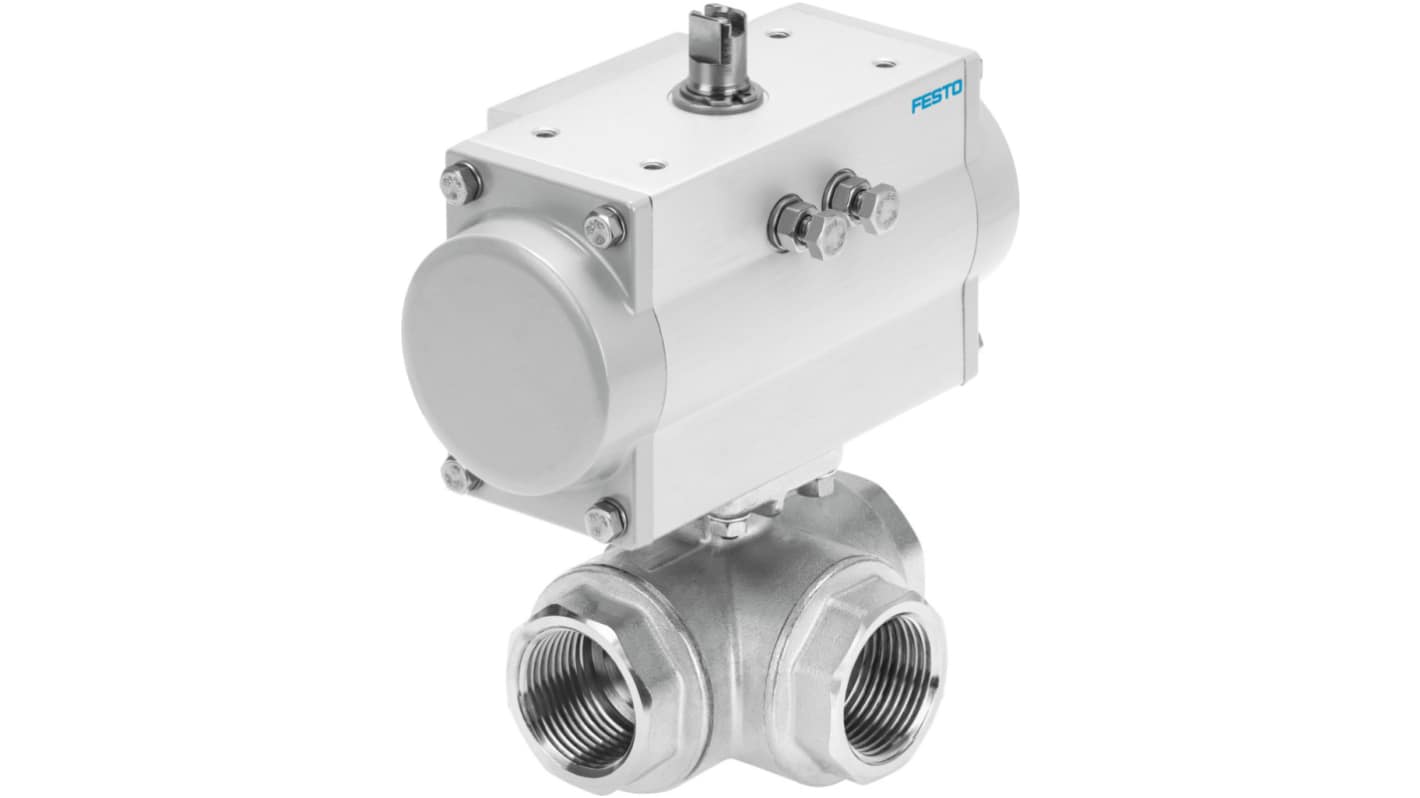

Festo Ball type Pneumatic Actuated Valve, Rp 1/4in, 25 bar
- RS Stock No.:
- 203-6057
- Mfr. Part No.:
- VZBM-A-1/4"-RP-25-F-3T-B2-PB20
- Brand:
- Festo
Subtotal (1 unit)*
£211.83
(exc. VAT)
£254.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £211.83 |
*price indicative
- RS Stock No.:
- 203-6057
- Mfr. Part No.:
- VZBM-A-1/4"-RP-25-F-3T-B2-PB20
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Thread Size | 1/4in | |
Valve Type | Ball | |
Default Valve Position | NC | |
Return Type | Spring | |
Thread Standard | Rp | |
Maximum Working Pressure | 25 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Thread Size 1/4in | ||
Valve Type Ball | ||
Default Valve Position NC | ||
Return Type Spring | ||
Thread Standard Rp | ||
Maximum Working Pressure 25 bar | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Actuated Valve, 1/4 in Thread size, 25 bar Maximum Working Pressure - VZBM-A-1/4-RP-25-F-3T-B2-PB20, Numeric Part Number: 8070274
This pneumatic actuated valve is a robust 3-way ball valve designed for optimal performance in industrial applications. Featuring a 1/4 inch thread size according to the Rp standard, this valve offers a default normally closed (NC) position, ensuring reliability in automated systems. It can be assembled in any position, making it flexible for various installation requirements.
Features & Benefits
• Ideal for pneumatic automation with spring return actuation
• Compatible with compressed air and neutral fluids
• Rated for a maximum working pressure of 25 bar
• Constructed from durable nickel-plated brass for longevity
• Designed for line installation with a nominal diameter of DN 8
• Compatible with compressed air and neutral fluids
• Rated for a maximum working pressure of 25 bar
• Constructed from durable nickel-plated brass for longevity
• Designed for line installation with a nominal diameter of DN 8
Applications
• Used in automation and control systems for fluid regulation
• Effective in managing compressed air flows in machinery
• Suitable for use with inert gases in diverse industrial settings
• Used in water systems where vapour levels are controlled
• Effective in managing compressed air flows in machinery
• Suitable for use with inert gases in diverse industrial settings
• Used in water systems where vapour levels are controlled
What pressure range can be effectively handled by this valve?
This valve operates efficiently within a pressure range of 5.5 to 8 bar, suitable for various industrial applications.
What types of media can be used with this valve?
It is designed for compressed air in accordance with ISO 8573-1:2010, inert gases, and water without vapour, making it versatile for multiple uses.
Is lubrication required for operation?
Lubricated operation is possible but generally required for ongoing performance beyond initial use, ensuring smooth functionality over time.
How does temperature affect the operation of this valve?
With a medium temperature tolerance from -20 to 130 °C, it is reliable for varying operational conditions without compromising performance.
