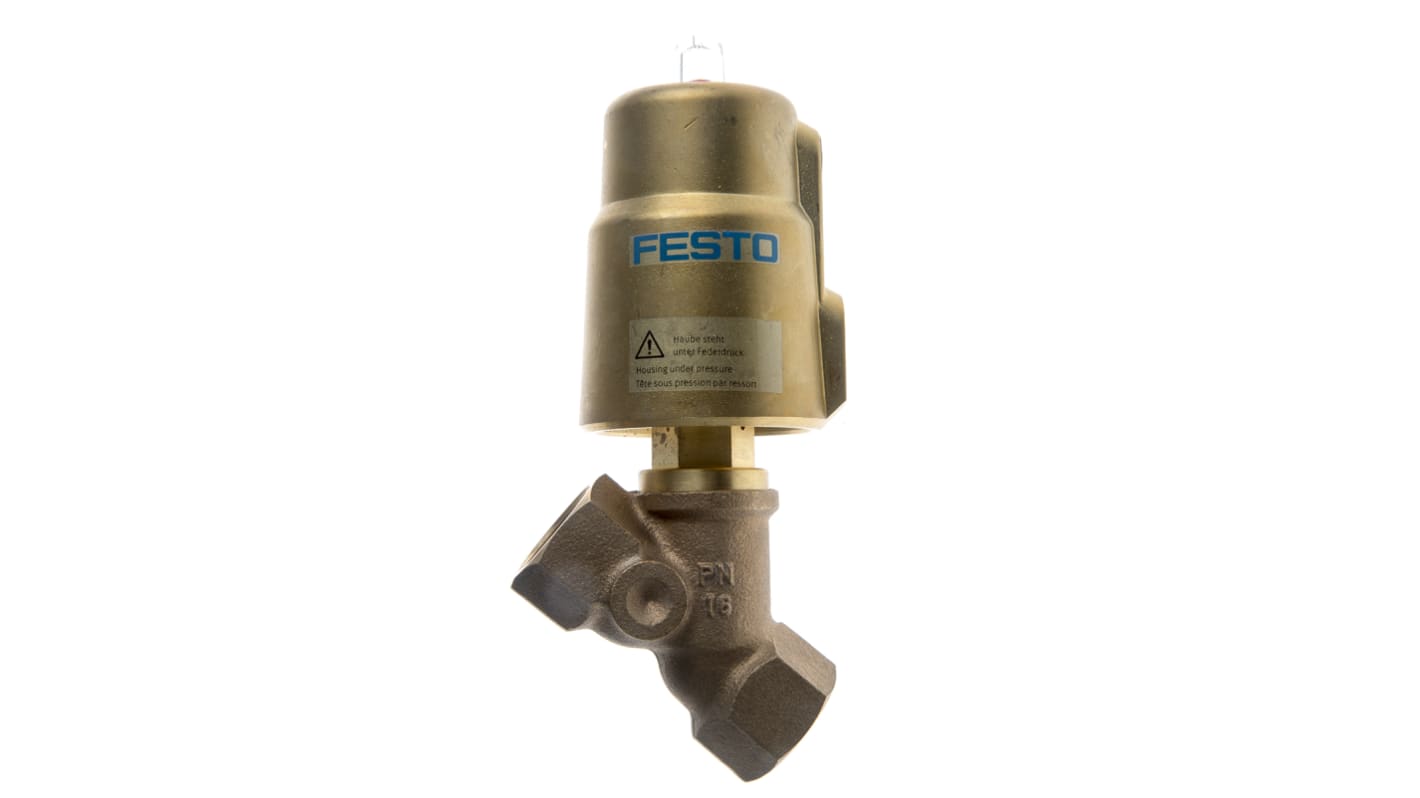

Festo Angle Seat type Pneumatic Actuated Valve, BSP 3/4in, 116 bar
- RS Stock No.:
- 121-5818
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G34-160-H3B1-50-16
- Brand:
- Festo
Subtotal (1 unit)*
£146.23
(exc. VAT)
£175.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £146.23 |
*price indicative
- RS Stock No.:
- 121-5818
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G34-160-H3B1-50-16
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Thread Size | 3/4in | |
Valve Type | Angle Seat | |
Default Valve Position | NC | |
Return Type | Spring | |
Thread Standard | BSP | |
Maximum Working Pressure | 116 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Thread Size 3/4in | ||
Valve Type Angle Seat | ||
Default Valve Position NC | ||
Return Type Spring | ||
Thread Standard BSP | ||
Maximum Working Pressure 116 bar | ||
- COO (Country of Origin):
- DE
Festo Angle Seat Pneumatic Valve, 16 Bar, G3/4 - VZXF-L-M22C-M-B-G34-160-H3B1-50-16
This Festo angle seat valve offers a high flow rate when regulating the discharge of contaminated or highly viscous media and hot steam. It's externally actuated by a direct supply of compressed air, which raises the piston at the same time as the valve disc opens the valve. The unit's sturdy construction provides a 50° valve seat angle to control the flow of media, such as vapour, inert gases and mineral-oil-based hydraulic lubricant. You can rely on smooth and efficient flow through your system as there's no pressure differential or flow resistance.
• Can be assembled in any position for versatile use
• Durable brass construction ensures low maintenance needs
• Can handle harsh industrial environments with a maximum working pressure of 116 bar and maximum operating temperature of +80°C
• Durable brass construction ensures low maintenance needs
• Can handle harsh industrial environments with a maximum working pressure of 116 bar and maximum operating temperature of +80°C
Applications
• Food and beverage processing
• Oil and gas industry
• Water and sewage industries
• Oil and gas industry
• Water and sewage industries
Does this valve improve safety?
This Festo valve features a normally closed (NC) valve position, which means it will only open when actuated. That means if there's a pressure loss in the system, the valve stays closed and ensures there's no leakage.
