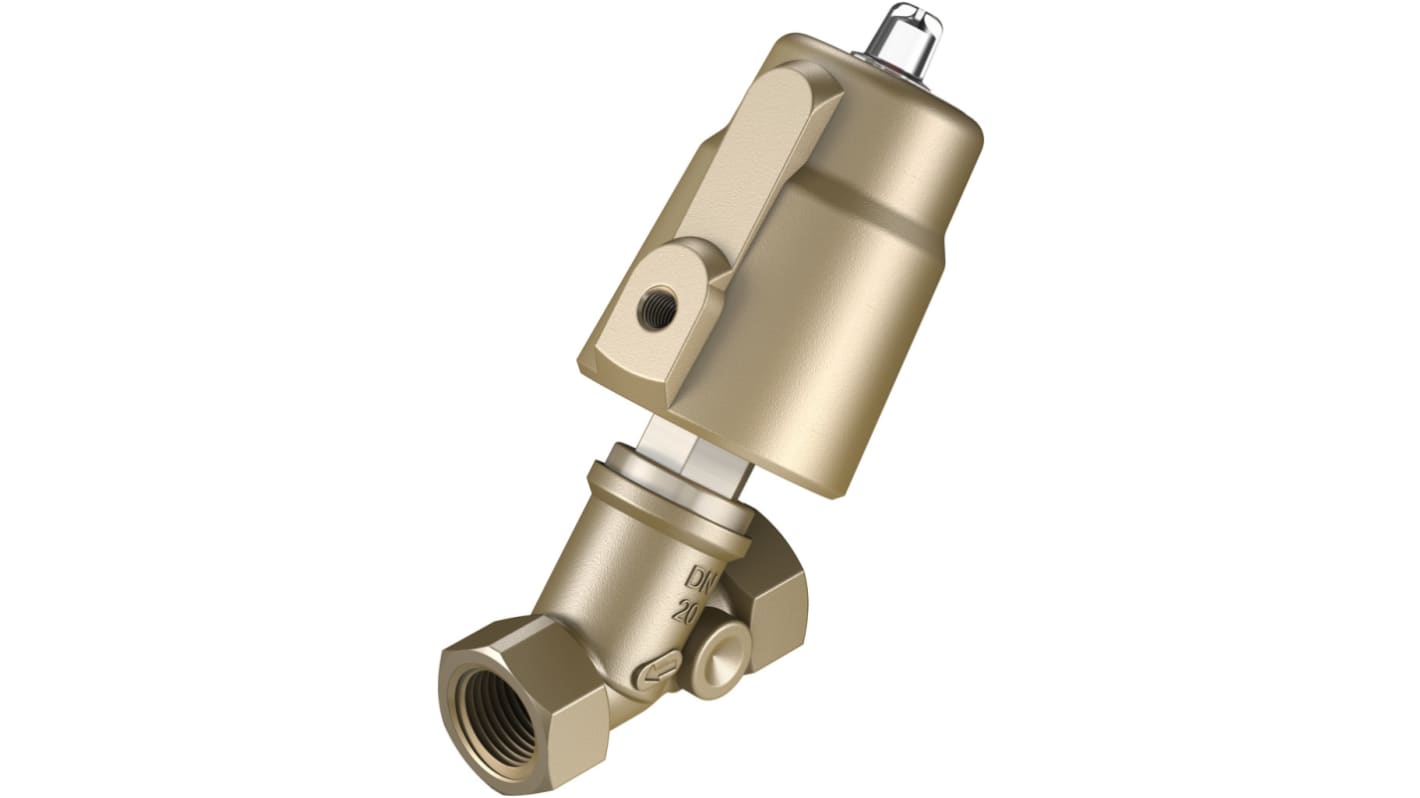

Festo Angle Seat type Pneumatic Actuated Valve, 16 bar, DIN ISO 228, Female 16 mm
- RS Stock No.:
- 203-7145
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G34-160-H3B1-50-16
- Brand:
- Festo
Subtotal (1 unit)*
£125.79
(exc. VAT)
£150.95
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £125.79 |
*price indicative
- RS Stock No.:
- 203-7145
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G34-160-H3B1-50-16
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Inlet Connection Type | Threaded | |
| Valve Type | Angle Seat | |
| Inlet Port Size | 16 mm | |
| Default Valve Position | NC | |
| Outlet Connection Type | Threaded | |
| Return Type | Spring | |
| Outlet Port Size | 3/4 in | |
| Maximum Operating Pressure | 16 bar | |
| Inlet Thread Standard | DIN ISO 228 | |
| Inlet Port Gender | Female | |
| Valve Material | Gunmetal (Red Brass) | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -10°C | |
| Outlet Thread Standard | G | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Inlet Connection Type Threaded | ||
Valve Type Angle Seat | ||
Inlet Port Size 16 mm | ||
Default Valve Position NC | ||
Outlet Connection Type Threaded | ||
Return Type Spring | ||
Outlet Port Size 3/4 in | ||
Maximum Operating Pressure 16 bar | ||
Inlet Thread Standard DIN ISO 228 | ||
Inlet Port Gender Female | ||
Valve Material Gunmetal (Red Brass) | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -10°C | ||
Outlet Thread Standard G | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Festo Pneumatic Actuated Valve, 16 Bar Maximum Working Pressure, 1/8 in Thread Size - VZXF-L-M22C-M-A-G34-160-H3B1-50-16, Numeric Part Number: 1002502
This pneumatic actuated valve by Festo is an angle seat valve designed for industrial applications, with a maximum working pressure of 16 Bar. The valve features a spring return mechanism and is ideal for use in high-pressure environments.
Features & Benefits
• Pneumatically actuated valve with angle seat design for efficient flow control
• Soft sealing principle for reliable performance and leak-proof operation
• Suitable for a wide range of mediums including vapour, inert gases, and filtered compressed air
• Flexible assembly position and mounting type for easy installation in various setups
• High corrosion resistance classification for durability in industrial settings
Applications
• Ideal for use in pneumatic systems requiring precise flow control
• Suitable for applications requiring high-pressure valves with spring return functionality
• Essential for use in industries such as automation, electronics, and mechanical engineering
Can it be used for controlling the flow of inert gases?
Yes, this pneumatic actuated valve is suitable for controlling the flow of inert gases.
Will it work in environments with high levels of corrosion stress?
Yes, the valve has a low corrosion resistance classification, making it suitable for such environments.
Is it compatible with compressed air systems?
Yes, the valve is designed for use with compressed air systems according to ISO8573-1:2010 standards.
