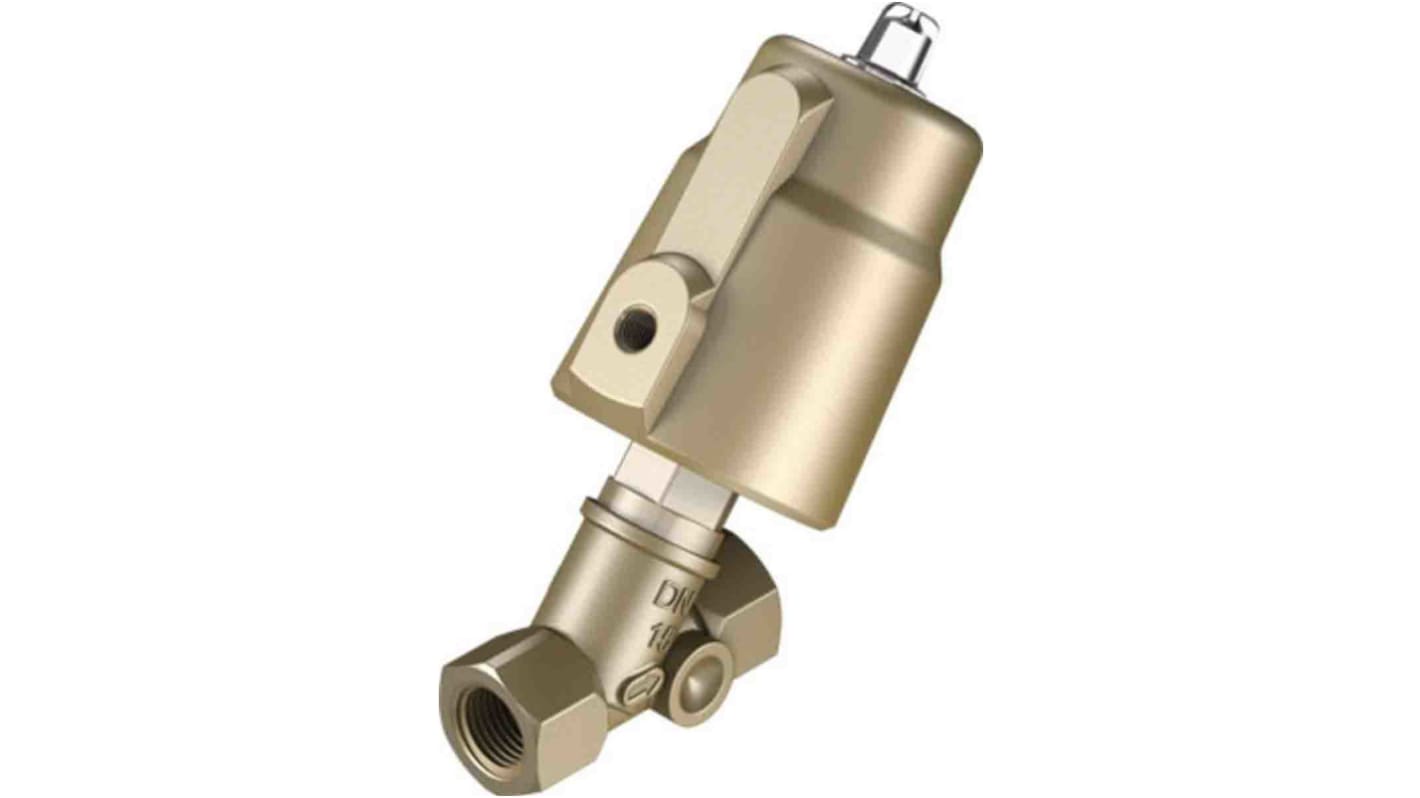

Festo Angle Seat type Pneumatic Actuated Valve, 16 bar, DIN ISO 228, Female 12 mm
- RS Stock No.:
- 203-7017
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
- Brand:
- Festo
Subtotal (1 unit)*
£409.53
(exc. VAT)
£491.44
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £409.53 |
*price indicative
- RS Stock No.:
- 203-7017
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Inlet Connection Type | Threaded | |
| Valve Type | Angle Seat | |
| Default Valve Position | NC | |
| Inlet Port Size | 12 mm | |
| Return Type | Spring | |
| Outlet Connection Type | Threaded | |
| Outlet Port Size | 1/2 in | |
| Inlet Thread Standard | DIN ISO 228 | |
| Maximum Operating Pressure | 16 bar | |
| Inlet Port Gender | Female | |
| Outlet Thread Standard | G | |
| Minimum Operating Temperature | -10°C | |
| Valve Material | Gunmetal (Red Brass) | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Compressed air in accordance with ISO8573-1:2010 (7:4:4), Conforms to RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Inlet Connection Type Threaded | ||
Valve Type Angle Seat | ||
Default Valve Position NC | ||
Inlet Port Size 12 mm | ||
Return Type Spring | ||
Outlet Connection Type Threaded | ||
Outlet Port Size 1/2 in | ||
Inlet Thread Standard DIN ISO 228 | ||
Maximum Operating Pressure 16 bar | ||
Inlet Port Gender Female | ||
Outlet Thread Standard G | ||
Minimum Operating Temperature -10°C | ||
Valve Material Gunmetal (Red Brass) | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Compressed air in accordance with ISO8573-1:2010 (7:4:4), Conforms to RoHS | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Actuated Valve, 12mm Inlet Port size, 1/2 inch Outlet Port size - VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C, Numeric Part Number: 3539036
This pneumatic-actuated valve is a threaded angle-seat valve designed to control fluid flow in compressed Air systems. Operated pneumatically with a spring return, it defaults to the closed position and is intended for industrial automation environments where robust threaded connections and elevated pressure handling are required.
Features and Benefits:
• Spring return ensures valve returns to closed position on Air loss
• 12mm inlet provides Compact connection for tight installations
• 1/2 in female G-thread outlet enables common pipework joining
• Rated to 16 bar for high-pressure pneumatic systems
• Operates from -10°C to 80°C for varied ambient conditions
• Gunmetal body resists wear while maintaining port integrity
• 12mm inlet provides Compact connection for tight installations
• 1/2 in female G-thread outlet enables common pipework joining
• Rated to 16 bar for high-pressure pneumatic systems
• Operates from -10°C to 80°C for varied ambient conditions
• Gunmetal body resists wear while maintaining port integrity
Applications
• Suitable for pneumatic process control in automation plants
• Ideal for valve banks in Electronic Assembly tooling
• Used for shut-off duties in mechanical manufacturing lines
• Can be used for compressed Air distribution systems
• Suitable for integration with DIN ISO 228 threaded manifolds
• Ideal for valve banks in Electronic Assembly tooling
• Used for shut-off duties in mechanical manufacturing lines
• Can be used for compressed Air distribution systems
• Suitable for integration with DIN ISO 228 threaded manifolds
How is the valve positioned when there is no actuation air?
The internal spring forces the valve to its normally closed position so the flow is blocked without supply pressure.
What thread standards are provided for inlet and outlet connections?
The inlet uses a DIN ISO 228 threaded female connection while the outlet is a female G-thread compatible with parallel G fittings.
What fluid quality is the valve intended for in operation?
It is specified for use with compressed Air meeting ISO 8573-1:2010 particulate and contaminant classes.
What material composes the main valve body and why is it suitable?
The valve body is MADE from gunmetal (red brass), providing Durable corrosion-resistant port surfaces for industrial pneumatic media.
