Festo Directional Control Valve type Pneumatic Actuated Valve, NPT 0.25in to NPT 0.25in, 10 bar
- RS Stock No.:
- 647-248
- Mfr. Part No.:
- VMEF-SCZ-M52-M-N14
- Brand:
- Festo
Subtotal (1 unit)*
£113.95
(exc. VAT)
£136.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £113.95 |
*price indicative
- RS Stock No.:
- 647-248
- Mfr. Part No.:
- VMEF-SCZ-M52-M-N14
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Thread Size | 0.25in | |
Valve Type | Directional Control Valve | |
Thread Standard | NPT | |
Thread Standard 2 | NPT | |
Thread Size 2 | 0.25in | |
Maximum Working Pressure | 10 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Thread Size 0.25in | ||
Valve Type Directional Control Valve | ||
Thread Standard NPT | ||
Thread Standard 2 NPT | ||
Thread Size 2 0.25in | ||
Maximum Working Pressure 10 bar | ||
- COO (Country of Origin):
- HU

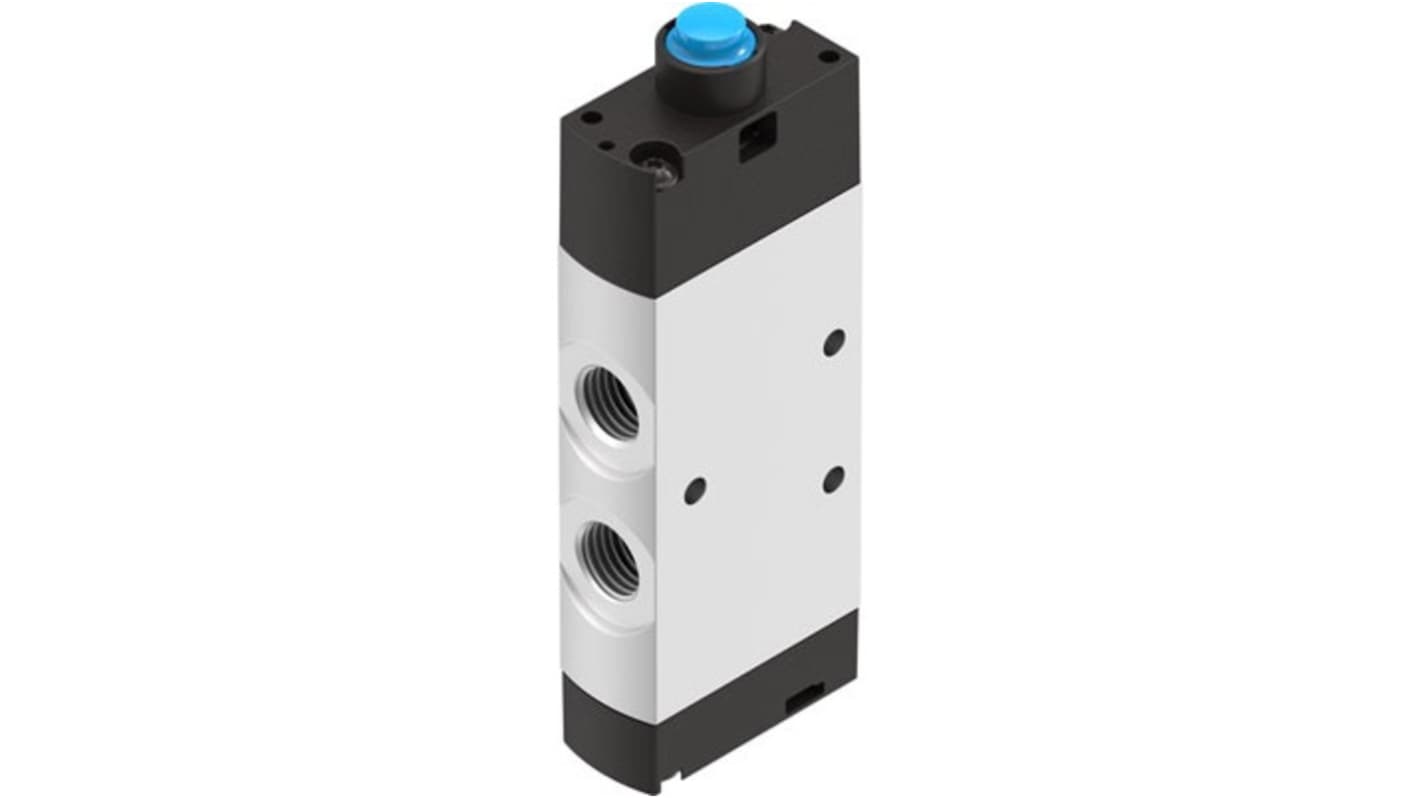

The Festo stem actuated valve is designed for efficient control in pneumatic applications, featuring a 5/2-way monostable valve function. This mechanical valve excels in various operating conditions with a robust construction width of 20 mm, ensuring reliable performance across a pressure range from -0.095 MPa to 1 MPa. With its soft sealing principle and pilot actuation, it offers flexible installation options, making it ideal for a variety of industrial settings. The valve operates effectively with an external pilot air supply and is compatible with lubricated operation, enhancing its versatility in handling different media temperatures from -10 °C to 60 °C. With a maximum switching frequency of 3 Hz and durable materials, this valve serves as a dependable component in complex pneumatic systems.
Sealing principle offers a soft seal for reduced leakage
Corrosion resistance class CRC 2 suitable for moderate stress environments
RoHS-compliant materials ensure environmental safety
Wide media temperature range supports diverse applications
Corrosion resistance class CRC 2 suitable for moderate stress environments
RoHS-compliant materials ensure environmental safety
Wide media temperature range supports diverse applications
