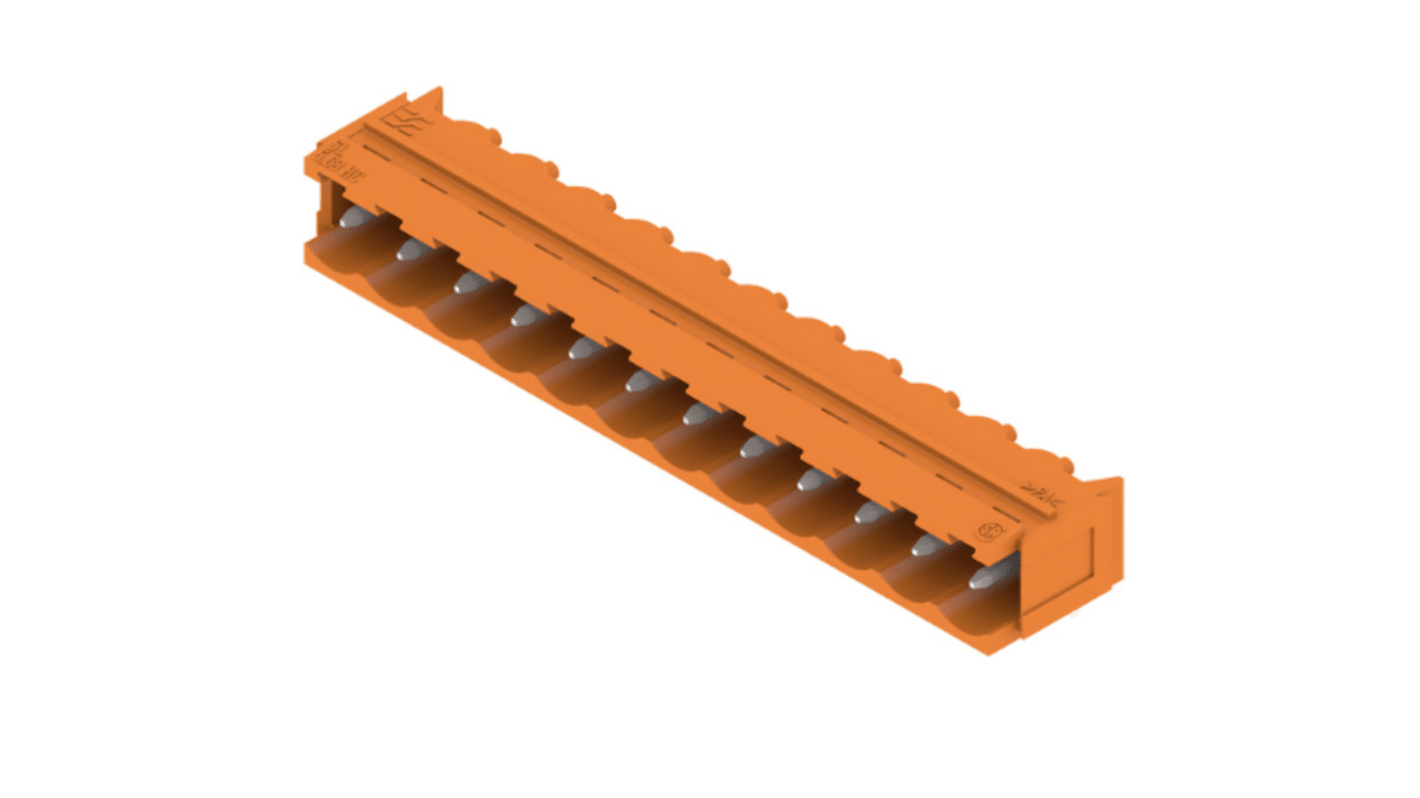

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 12 Way, Right Angle, Pluggable Terminal Block, Header, Through Hole, Solder

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 pack of 5 units)*

£11.83

(exc. VAT)

£14.195

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 110 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 120£2.366£11.83
125 - 370£1.896£9.48
375 - 995£1.54£7.70
1000 - 1995£1.36£6.80
2000 +£1.184£5.92

*price indicative

RS Stock No.:
733-0724
Mfr. Part No.:
1154880000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Pluggable Terminal Block Type

Header

Number of Contacts

12

Pitch

5.08mm

Series

OMNIMATE SL

Number of Rows

1

Body Orientation

Right Angle

Mounting Type

Through Hole

Termination Method

Solder

Current Rating

18.0A

Voltage Rating

400.0 V

Colour

Orange

Contact Material

Copper Alloy

COO (Country of Origin):
DE

Weidmuller OMNIMATE SL Series Pluggable Terminal Block, 18A Current Rating, 400V Voltage Rating - 1154880000


This pluggable terminal block features a right-angle body orientation and a solder termination method, providing a compact solution for efficient connections. With a pitch of 5.08mm, it accommodates 12 contacts, making it ideal for diverse wiring configurations. This through-hole terminal block is designed for environments that require stable electrical connections.

Features & Benefits


• 12 contact design allows for multiple connections
• Right-angle orientation optimises panel space
• Solder termination ensures stable connections
• 18A current rating accommodates substantial loads
• 400V voltage rating is suitable for a variety of applications
• 5.08mm pitch connector enables compact layouts

Applications


• Used in automation equipment for dependable connections
• Suitable for control cabinets in industrial settings
• Selected for use in electrical panels to enhance efficiency
• Ideal for interconnecting various components in machinery

Can it handle high electrical loads?


Yes, it supports up to 18A.

Will it fit into standard PCB layouts?


Yes, it has a compact 5.08mm pitch.

Is it suitable for harsh environments?


Yes, it is designed for consistent performance in challenging conditions.

Can it be soldered directly to a PCB?


Yes, it employs a solder termination method.


5.08mm Pitch -Weidmüller Omnimate Range


Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.


• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
