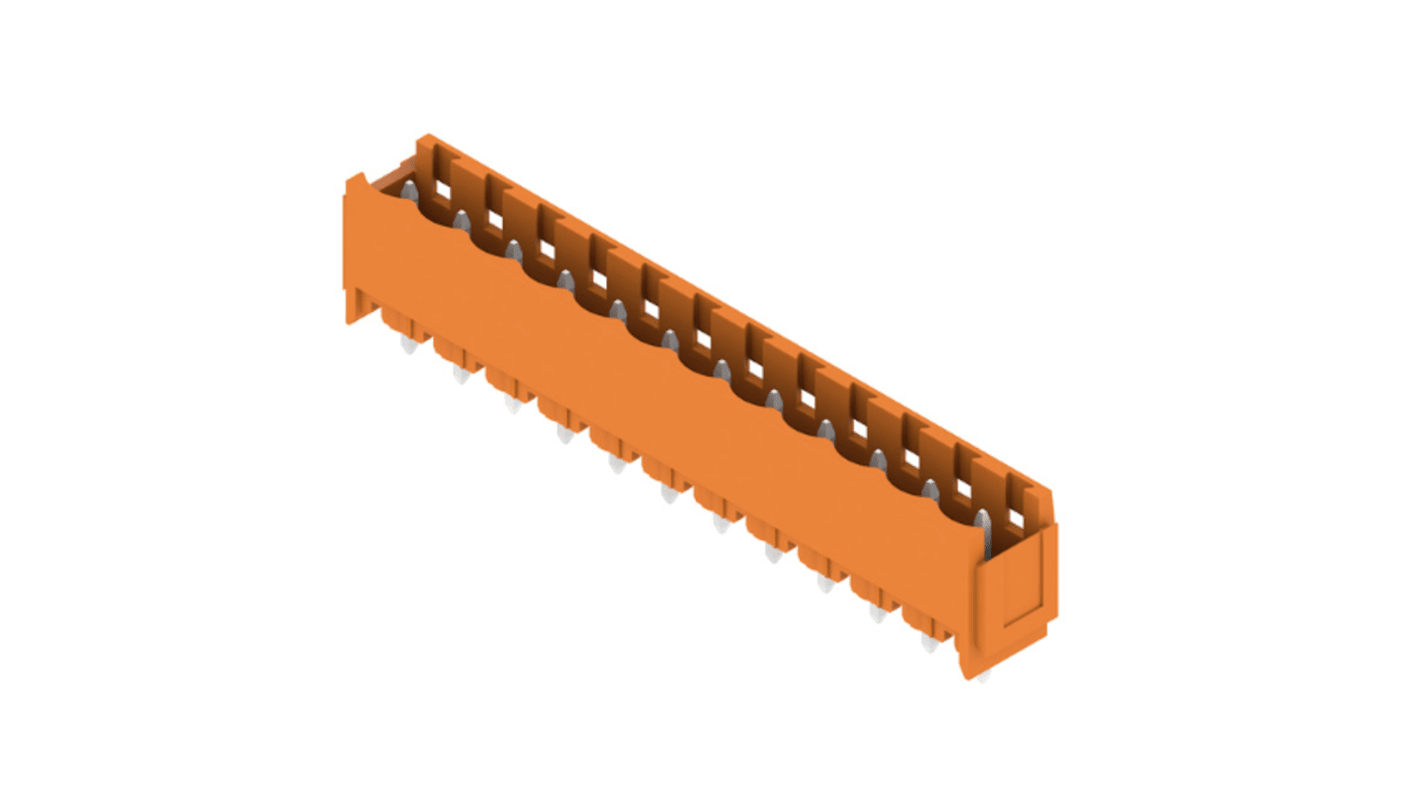

Weidmüller 5.08mm Pitch 12 Way Pluggable Terminal Block, Header, Through Hole, Solder Termination
- RS Stock No.:
- 176-7843
- Mfr. Part No.:
- 1147640000
- Brand:
- Weidmüller
Available to back order for despatch 10/06/2024
Added
Price Each (In a Pack of 5)
£3.262
(exc. VAT)
£3.914
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £3.262 | £16.31 |
| 10 - 20 | £3.11 | £15.55 |
| 25 - 45 | £2.968 | £14.84 |
| 50 - 95 | £2.84 | £14.20 |
| 100 + | £2.718 | £13.59 |
| *price indicative | ||
- RS Stock No.:
- 176-7843
- Mfr. Part No.:
- 1147640000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Male headers made from glass-fibre-reinforced plastic with 180° wire outlet, optimised for wave soldering, absolute dimension stable. The male headers can be manually coded or ordered as pre-coded headers.
Available in open, closed (G), with screw flange (F) or with solder Flange (LF).
The solder flange makes an additional screw-fixation to the PCB unnecessary and protects the solder joints against mechanical stress.
The solder flange makes an additional screw-fixation to the PCB unnecessary and protects the solder joints against mechanical stress.
Specifications
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Header |
| Number of Contacts | 12 |
| Pitch | 5.08mm |
| Series | SL |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Current Rating | 18.5A |
| Voltage Rating | 400 V, 300 (CSA, UL 1059) V |
| Colour | Orange |
| Material | CuMg (Contact), PAGF (Insulation) |
