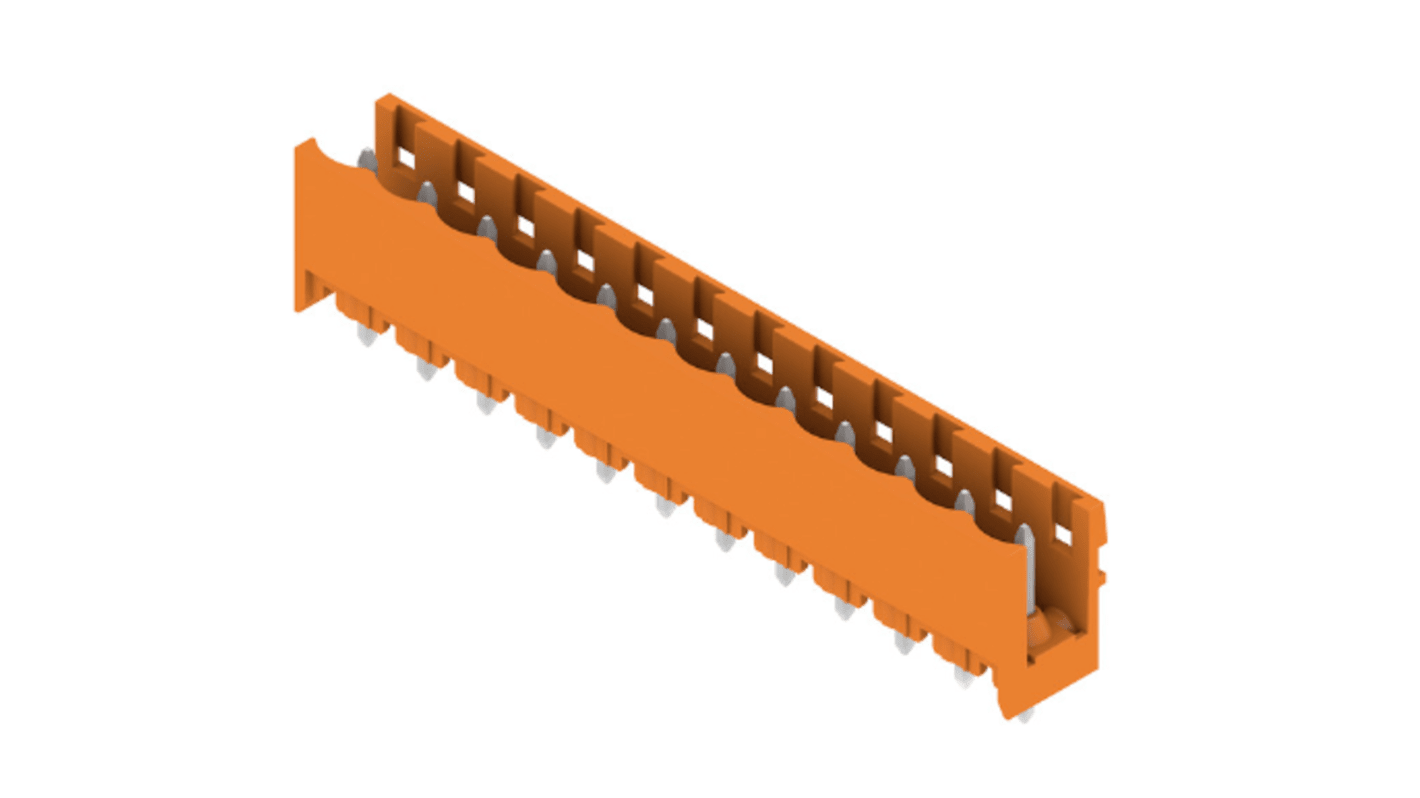

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 12 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,
- RS Stock No.:
- 172-2690
- Mfr. Part No.:
- 1146570000
- Brand:
- Weidmüller
Subtotal (1 box of 50 units)*
£112.35
(exc. VAT)
£134.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 100 unit(s) shipping from 14 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 + | £2.247 | £112.35 |
*price indicative
- RS Stock No.:
- 172-2690
- Mfr. Part No.:
- 1146570000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Pluggable Terminal Block Type | Header | |
Number of Contacts | 12 | |
Pitch | 5.08mm | |
Series | OMNIMATE SL | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Mounting Type | Through Hole | |
Termination Method | Solder | |
Current Rating | 18.0A | |
Voltage Rating | 400.0 V | |
Colour | Orange | |
Contact Material | Copper Alloy | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Pluggable Terminal Block Type Header | ||
Number of Contacts 12 | ||
Pitch 5.08mm | ||
Series OMNIMATE SL | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Current Rating 18.0A | ||
Voltage Rating 400.0 V | ||
Colour Orange | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- DE
Weidmuller OMNIMATE SL Series Pluggable Terminal Block, 18A Current Rating, 400V Voltage Rating - 1146570000
This pluggable terminal block is designed for efficient electrical connections in various applications. Featuring a 5.08mm pitch, this header terminal block has a single row configuration for easy integration in compact spaces. The through hole mounting type ensures a stable installation, while the straight body orientation simplifies layout arrangements. This terminal block also adheres to IEC standards and is RoHS compliant.
Features & Benefits
• High current rating of 18A for effective power transfer
• Voltage rating of 400V ensures compatibility with standard applications
• Constructed from copper alloy for enhanced conductivity
• Solder termination method offers secure connections
• 12 contacts provide multiple connectivity options
• Designed for ease of use in automation and electronics
• Voltage rating of 400V ensures compatibility with standard applications
• Constructed from copper alloy for enhanced conductivity
• Solder termination method offers secure connections
• 12 contacts provide multiple connectivity options
• Designed for ease of use in automation and electronics
Applications
• Connecting a range of electrical devices
• Ideal for modular assembly systems
• Used in control panels and industrial automation
• Suitable for interconnecting circuits in machinery
• Ideal for modular assembly systems
• Used in control panels and industrial automation
• Suitable for interconnecting circuits in machinery
Can it handle high current applications?
Yes, it supports a current rating of 18.0A.
Will it fit in compact spaces?
Its 5.08mm pitch enables straightforward installation in tight areas.
Is it suitable for solder connections?
Yes, it utilises a reliable solder termination method.
What is the insulation material of this connector?
The connector features a PA GF insulating material+E90.
5.08mm Pitch -Weidmüller Omnimate Range
Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.
• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
