Phoenix Contact, 5mm Pitch, 5/ 4-ST BK, MSTBT 2, 4 Way, Pluggable Terminal Block, Plug, Through Hole, 1893313
- RS Stock No.:
- 241-5981
- Mfr. Part No.:
- 1893313
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£301.20
(exc. VAT)
£361.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,900 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 + | £3.012 | £301.20 |
*price indicative
- RS Stock No.:
- 241-5981
- Mfr. Part No.:
- 1893313
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Plug | |
Number of Contacts | 4 | |
Pitch | 5mm | |
Series | 5/ 4-ST BK, MSTBT 2 | |
Number of Rows | 1 | |
Mounting Type | Through Hole | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 4 | ||
Pitch 5mm | ||
Series 5/ 4-ST BK, MSTBT 2 | ||
Number of Rows 1 | ||
Mounting Type Through Hole | ||
- COO (Country of Origin):
- DE

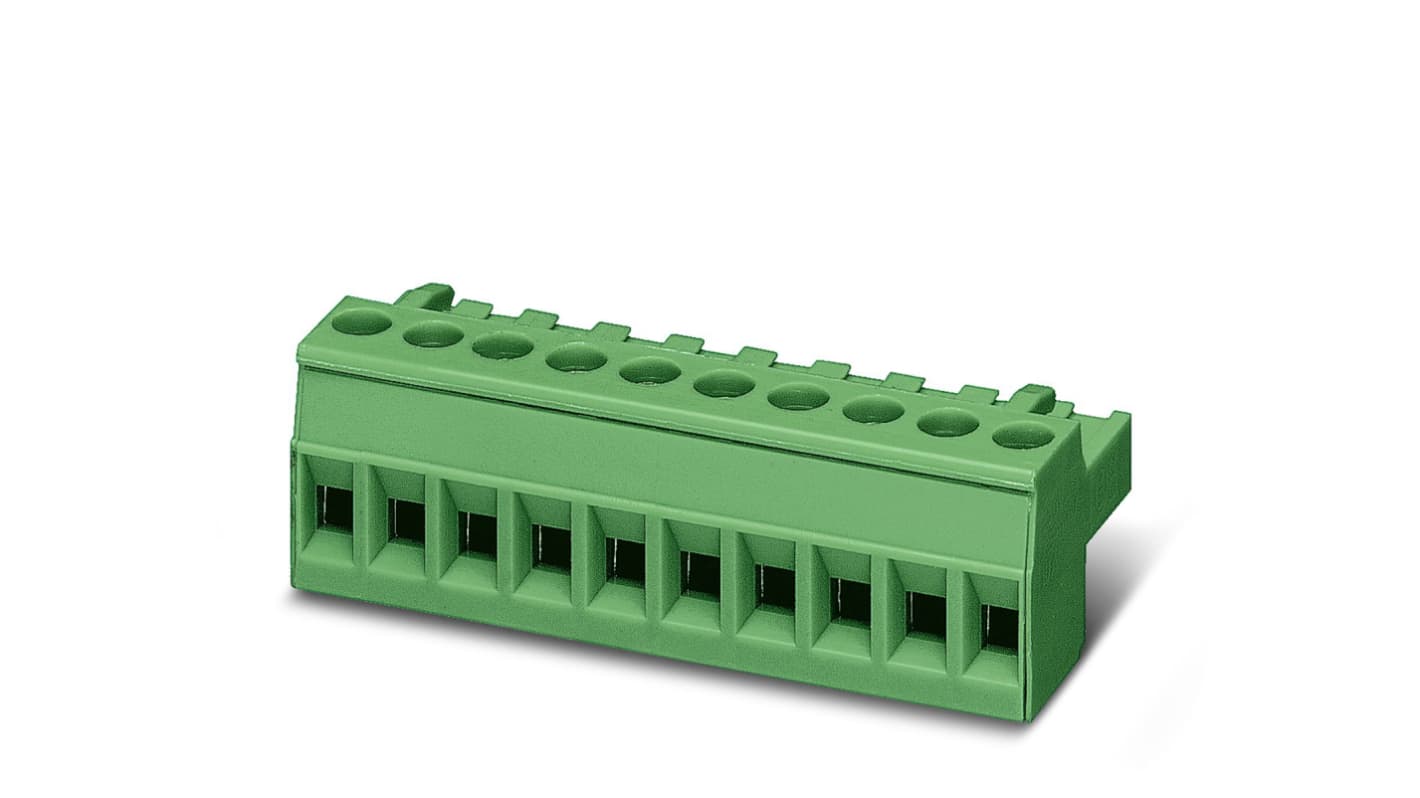

Phoenix Contact CLASSIC COMBICON MSTBT 5.0mm Terminal Block Plug Connectors
CLASSIC COMBICON MSTB 2,5 5.0mm pitch plug-in cable mount terminal block connectors with a 0.2 to 2.5mm2 screw connection
For screwdriver see stock number 390-9641
for insertion bridges see stock numbers 802-0686 and 802-0683 typically
For cable housings see stock number 292-9420 (3 way) and 292-9436 (4 way)
For screwdriver see stock number 390-9641
for insertion bridges see stock numbers 802-0686 and 802-0683 typically
For cable housings see stock number 292-9420 (3 way) and 292-9436 (4 way)
Various positions available
5.0 mm pitch
Colour: Green
Screw connection
24-12 Wire Gauge Range
5.0 mm pitch
Colour: Green
Screw connection
24-12 Wire Gauge Range
The Phoenix Contact's PCB connector has 2.5 mm² cross section and is black in colour. It has nominal current of 12 A and rated voltage (III/2) 320 V.
Connector system CLASSIC COMBICON
Type of contact Female connector
Pitch 5 mm
Number of positions 4
Drive form screw head Slotted (L)
Screw thread M3
Pin layout linear pinning
Locking no
Number of rows 1
Number of connections 4
Number of potentials 4
Type of contact Female connector
Pitch 5 mm
Number of positions 4
Drive form screw head Slotted (L)
Screw thread M3
Pin layout linear pinning
Locking no
Number of rows 1
Number of connections 4
Number of potentials 4
Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks
