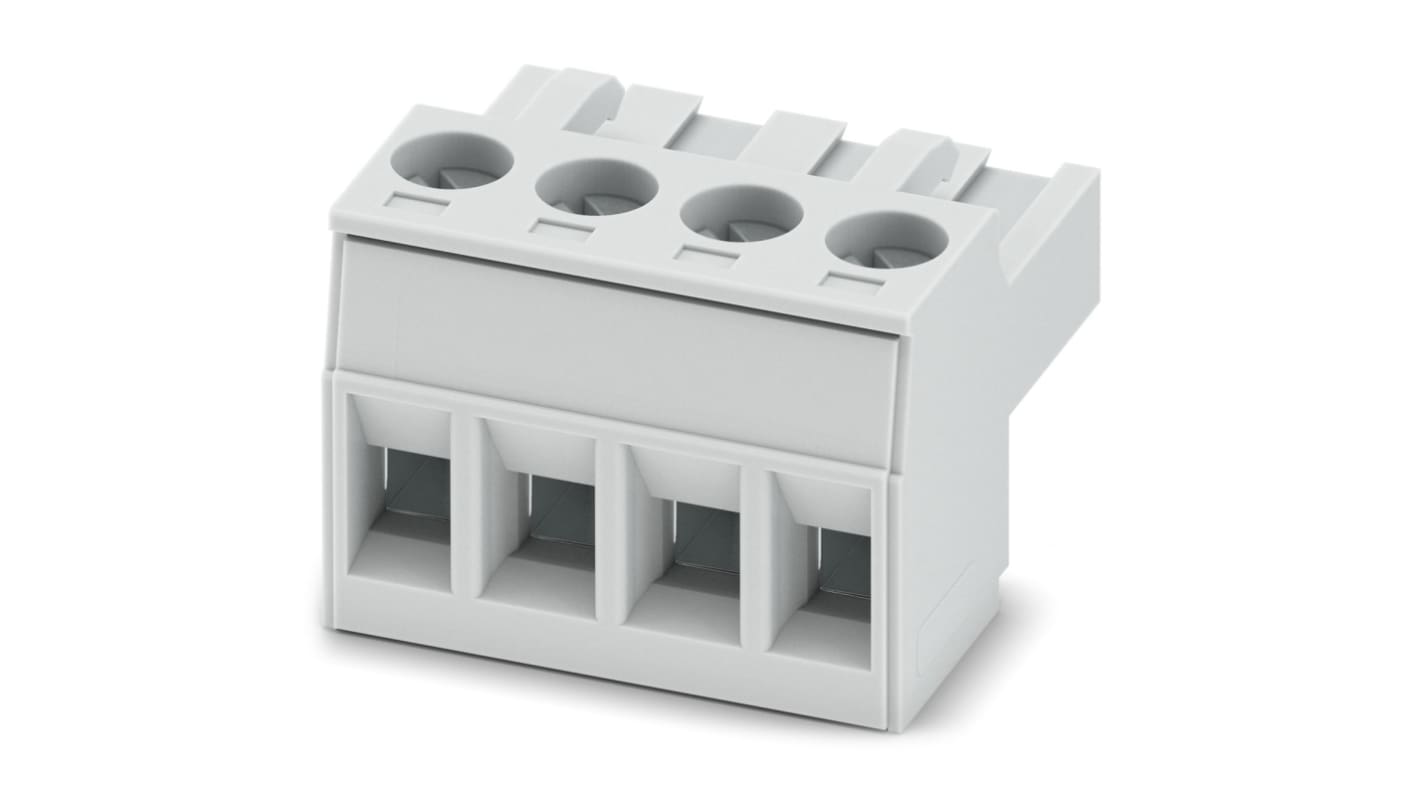

Phoenix Contact 5/4-ST KMGY, MSTBT 2 Series Pluggable Terminal Block, 4-Contact, 5 mm Pitch, Surface, 1 Row
- RS Stock No.:
- 241-5978
- Mfr. Part No.:
- 1878037
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£159.60
(exc. VAT)
£191.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 100 unit(s) shipping from 20 April 2026
- Plus 150 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £3.192 | £159.60 |
*price indicative
- RS Stock No.:
- 241-5978
- Mfr. Part No.:
- 1878037
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Mount Type | Surface | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 320V | |
| Length | 18.1mm | |
| Series | 5/4-ST KMGY, MSTBT 2 | |
| Standards/Approvals | IEC | |
| Depth | 15mm | |
| Width | 20mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 12A | ||
Mount Type Surface | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 320V | ||
Length 18.1mm | ||
Series 5/4-ST KMGY, MSTBT 2 | ||
Standards/Approvals IEC | ||
Depth 15mm | ||
Width 20mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact's PCB connector has nominal cross section of 2.5 mm² and is light grey in colour. It has nominal current of 12 A with rated voltage (III/2) 320 V.
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
