TE Connectivity Buchanan Series Pluggable Terminal Block, 4-Contact, 5 mm Pitch, 1 Row, 282811-4
- RS Stock No.:
- 476-323
- Distrelec Article No.:
- 304-59-597
- Mfr. Part No.:
- 282811-4
- Brand:
- TE Connectivity
Subtotal (1 box of 300 units)*
£218.87
(exc. VAT)
£262.64
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £218.87 | £0.73 |
*price indicative
- RS Stock No.:
- 476-323
- Distrelec Article No.:
- 304-59-597
- Mfr. Part No.:
- 282811-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 4 | |
| Pitch | 5mm | |
| Current | 15A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.05mm² | |
| Housing Material | Polyamide 66 Fibreglass | |
| Maximum Wire Size mm² | 3mm² | |
| Minimum Wire Size AWG | 30AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Right Angle | |
| Colour | Green | |
| Voltage | 30V | |
| Series | Buchanan | |
| Standards/Approvals | EU RoHS Directive 2011/65/EU Compliant, EU REACH Regulation (EC) No. 1907/2006, EU ELV Directive 2000/53/EC Out of Scope, China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 4 | ||
Pitch 5mm | ||
Current 15A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.05mm² | ||
Housing Material Polyamide 66 Fibreglass | ||
Maximum Wire Size mm² 3mm² | ||
Minimum Wire Size AWG 30AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Right Angle | ||
Colour Green | ||
Voltage 30V | ||
Series Buchanan | ||
Standards/Approvals EU RoHS Directive 2011/65/EU Compliant, EU REACH Regulation (EC) No. 1907/2006, EU ELV Directive 2000/53/EC Out of Scope, China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold | ||
- COO (Country of Origin):
- IT

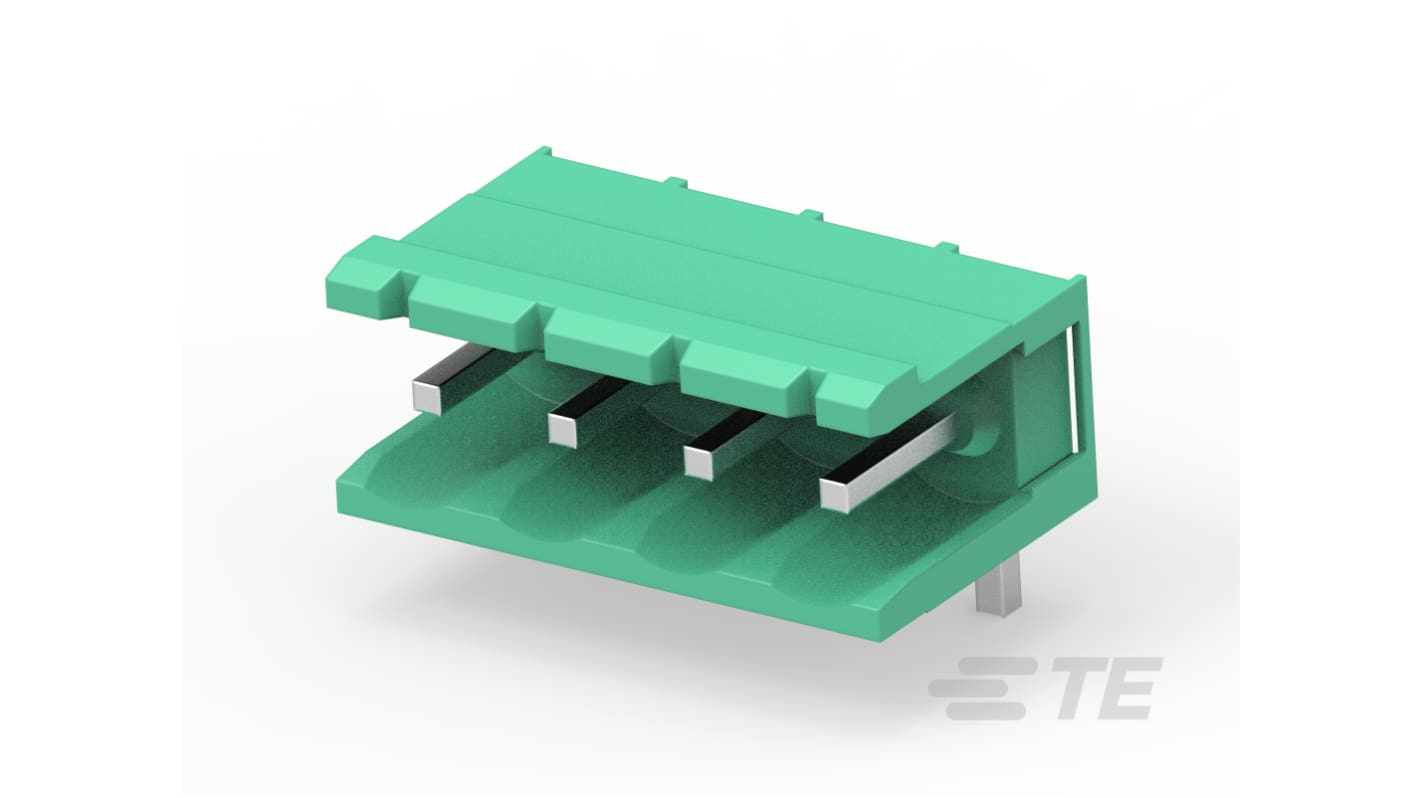

The TE Connectivity 4 Position PCB Terminal Block is expertly designed for wire-to-board applications, ensuring a dependable connection with a 5 mm centerline. This terminal block features a partially shrouded header type, accommodating diverse wire gauges from 30 to 12 AWG. Utilizing robust polyamide 6.6 GF housing material, it operates effectively under rigorous conditions, maintaining integrity in an operating temperature range of -40 to 110 °C. With a rated voltage of 300 VAC and 15 A current capacity, it suits a wide array of power and signal circuit applications. Its versatile configuration simplifies integration into printed circuit boards, making it a reliable choice for professionals seeking efficient and durable connectivity solutions.
Partially shrouded header design enhances safety
Compatible with a variety of wire sizes for flexible applicability
Right-angle orientation allows for efficient space utilization on PCB
Conductors are well-protected thanks to the robust housing material
Wave solder capability simplifies manufacturing processes
