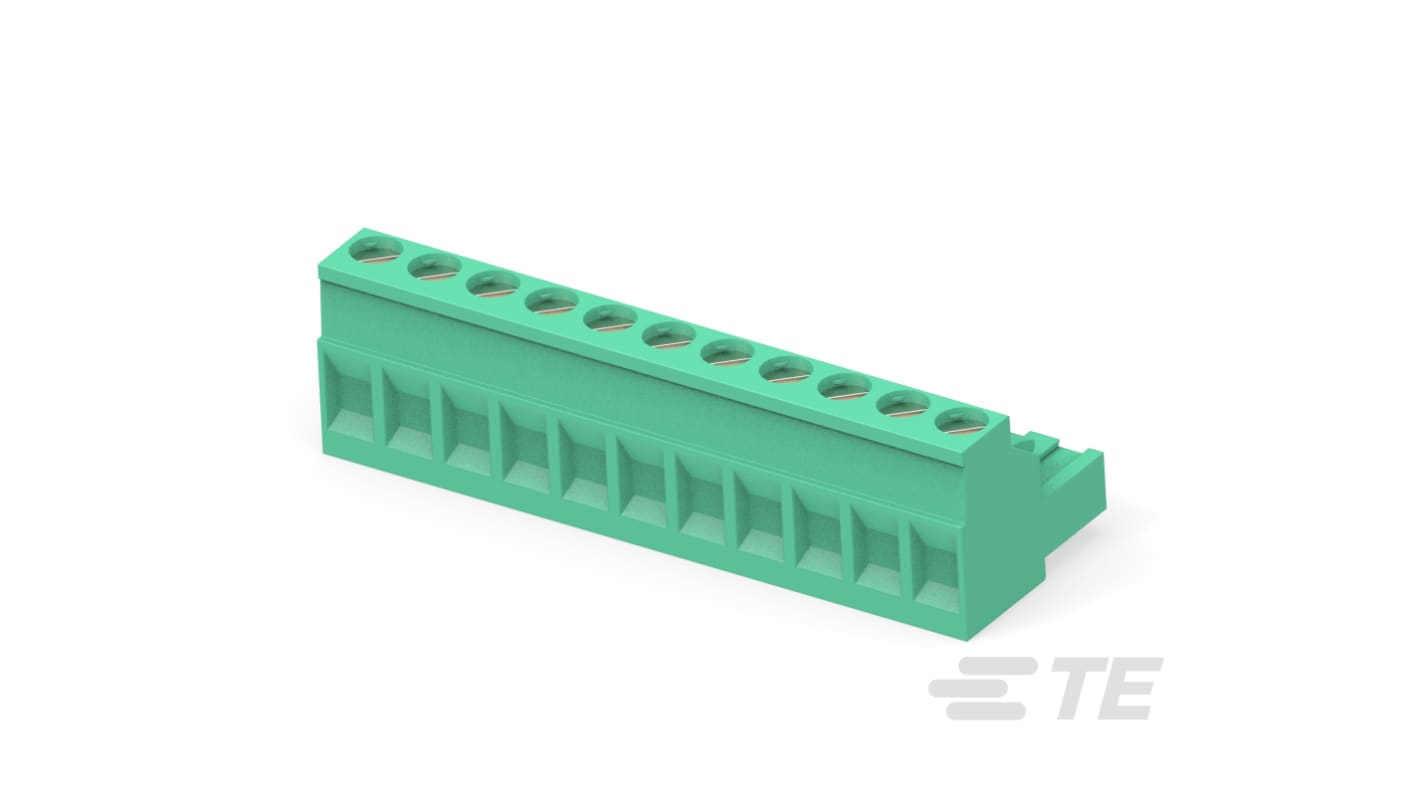

TE Connectivity Buchanan Series Pluggable Terminal Block, 11-Contact, 5.08 mm Pitch, 1 Row, 1-796634-1
- RS Stock No.:
- 471-303
- Distrelec Article No.:
- 304-59-014
- Mfr. Part No.:
- 1-796634-1
- Brand:
- TE Connectivity
Subtotal (1 box of 25 units)*
£167.58
(exc. VAT)
£201.10
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £167.58 | £6.703 |
*price indicative
- RS Stock No.:
- 471-303
- Distrelec Article No.:
- 304-59-014
- Mfr. Part No.:
- 1-796634-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 11 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Current | 15A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 2mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 3mm² | |
| Minimum Wire Size AWG | 30AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Right Angle | |
| Colour | Green | |
| Voltage | 30V | |
| Series | Buchanan | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 11 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Current 15A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 2mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 3mm² | ||
Minimum Wire Size AWG 30AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Right Angle | ||
Colour Green | ||
Voltage 30V | ||
Series Buchanan | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- IT
The TE Connectivity 11 Position PCB Terminal Block is designed for seamless wire-to-board connections, offering reliable performance in a compact 5.08 mm centreline configuration. Suitable for a diverse range of applications, this connector excels in environments requiring a 180° wire entry angle and accommodates wire sizes from 30 to 12 AWG. Its robust design ensures optimum current handling capabilities, making it an ideal choice for both power and signal circuit applications. Enhanced by a straightforward side stackable configuration, this terminal block streamlines assembly processes while providing flexibility in wiring arrangements. Built to withstand challenging conditions, it operates effectively within a temperature range of -40 to 105 °C, ensuring durability and reliability beyond standard expectations.
Constructed from low halogen materials for environmental compliance
Features nickel-plated screws for enhanced corrosion resistance
Designed with a right-angle orientation to maximise space efficiency
Offers an easy-to-use plug connector type for quick assembly and disassembly
Provides multiple positions within a single compact housing for versatile applications
Incorporates a screw attachment for secure mechanical stability
Compatible with various TE parts, enabling flexibility in design
Simplifies wiring through its user-friendly side entry configuration
