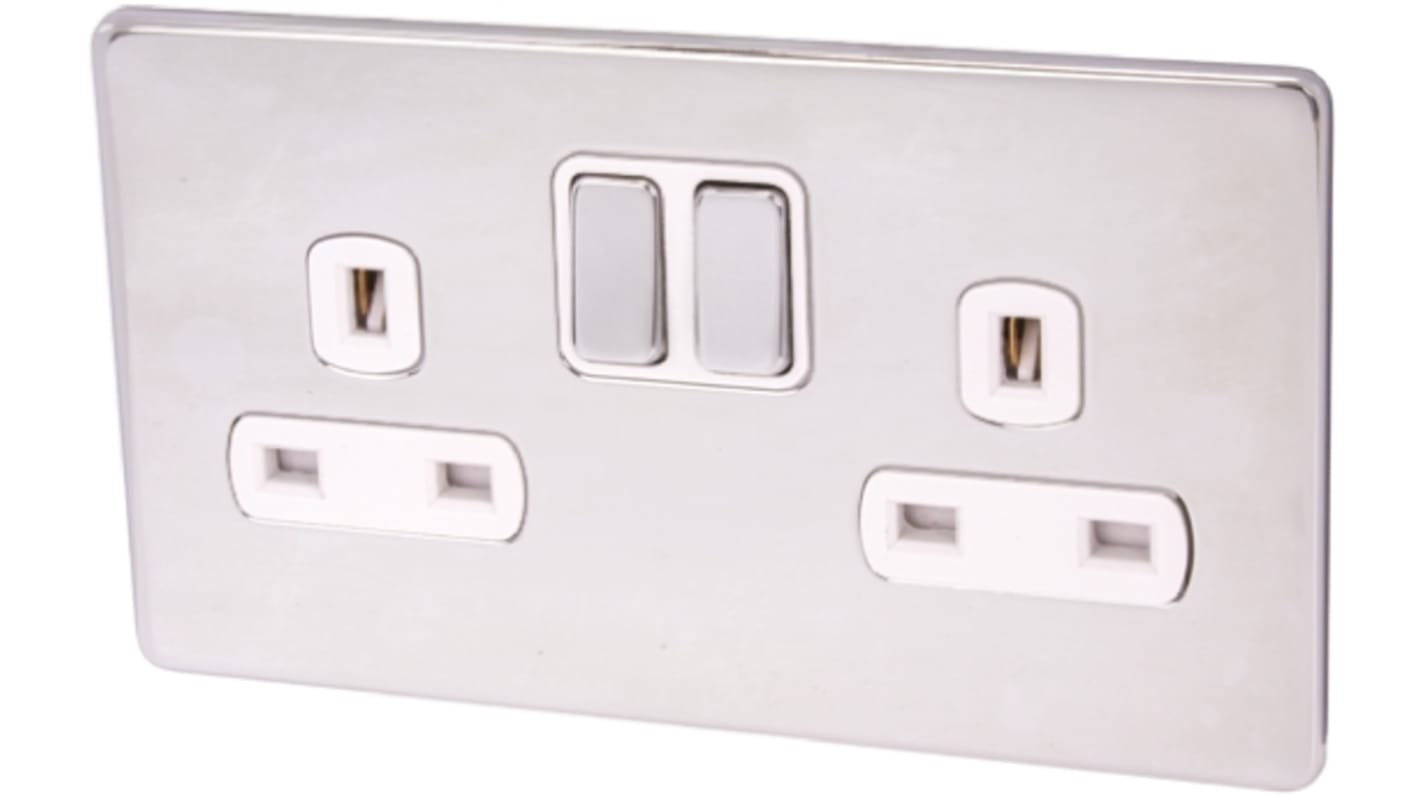

Deta Screwless Metal 2 Gang Electrical Socket, 2 Poles, 13A, Type G - British, Indoor Use
- RS Stock No.:
- 777-0135
- Mfr. Part No.:
- 8532CH
- Brand:
- Deta
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 777-0135
- Mfr. Part No.:
- 8532CH
- Brand:
- Deta
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Deta | |
Number of Gangs | 2 | |
Switched | Yes | |
Socket Type | Type G - British | |
Indoor or Outdoor Use | Indoor | |
Mounting Style | Flush Mount | |
Current Rating | 13A | |
Voltage Rating | 230 V | |
Material | Steel | |
Minimum Box Depth | 35mm | |
Overall Height | 86mm | |
Overall Width | 146mm | |
International Protection Rating | IP2X | |
Series | Screwless Metal | |
Colour Family | Chrome | |
Faceplate Mounting Type | Screwless | |
Faceplate Depth | 5mm | |
Earth Terminal | Yes | |
Number of Poles | 2 | |
Switch Style | Rocker - Metal | |
Fixing Standard | BS | |
Select all | ||
---|---|---|
Brand Deta | ||
Number of Gangs 2 | ||
Switched Yes | ||
Socket Type Type G - British | ||
Indoor or Outdoor Use Indoor | ||
Mounting Style Flush Mount | ||
Current Rating 13A | ||
Voltage Rating 230 V | ||
Material Steel | ||
Minimum Box Depth 35mm | ||
Overall Height 86mm | ||
Overall Width 146mm | ||
International Protection Rating IP2X | ||
Series Screwless Metal | ||
Colour Family Chrome | ||
Faceplate Mounting Type Screwless | ||
Faceplate Depth 5mm | ||
Earth Terminal Yes | ||
Number of Poles 2 | ||
Switch Style Rocker - Metal | ||
Fixing Standard BS | ||
- COO (Country of Origin):
- CN
Metal Switched Screwless Sockets
Part of the Deta Screwless range, these Metal Socket Outlets come in either one or two Gang. These Screwless Sockets are elegantly styled and have a unique shape, with concealed screws. These Switched Sockets can be fully installed and tested before the addition of the screwless frontplates, which simply but securely clip onto the mounting system, making them a practical solution when decorating. The Deta Sockets have clear white terminal markings and colour coded terminals for easy identification. This Metal, screwless Sockets also feature Funnel Terminals, making cable insertion extremely easy.
Top facing terminal screws
Clear white markings and Colour coded terminals for easy identification
Funnel terminal for easy cable insertion
Recessed earth bar
2 earth terminals on 2 gang sockets
Captive and backed out terminals
Only one size 4mm Screwdriver needed
25 year guarantee
Clear white markings and Colour coded terminals for easy identification
Funnel terminal for easy cable insertion
Recessed earth bar
2 earth terminals on 2 gang sockets
Captive and backed out terminals
Only one size 4mm Screwdriver needed
25 year guarantee
Standards
BS 1363:Part 2
Deta Decorative Screwless
