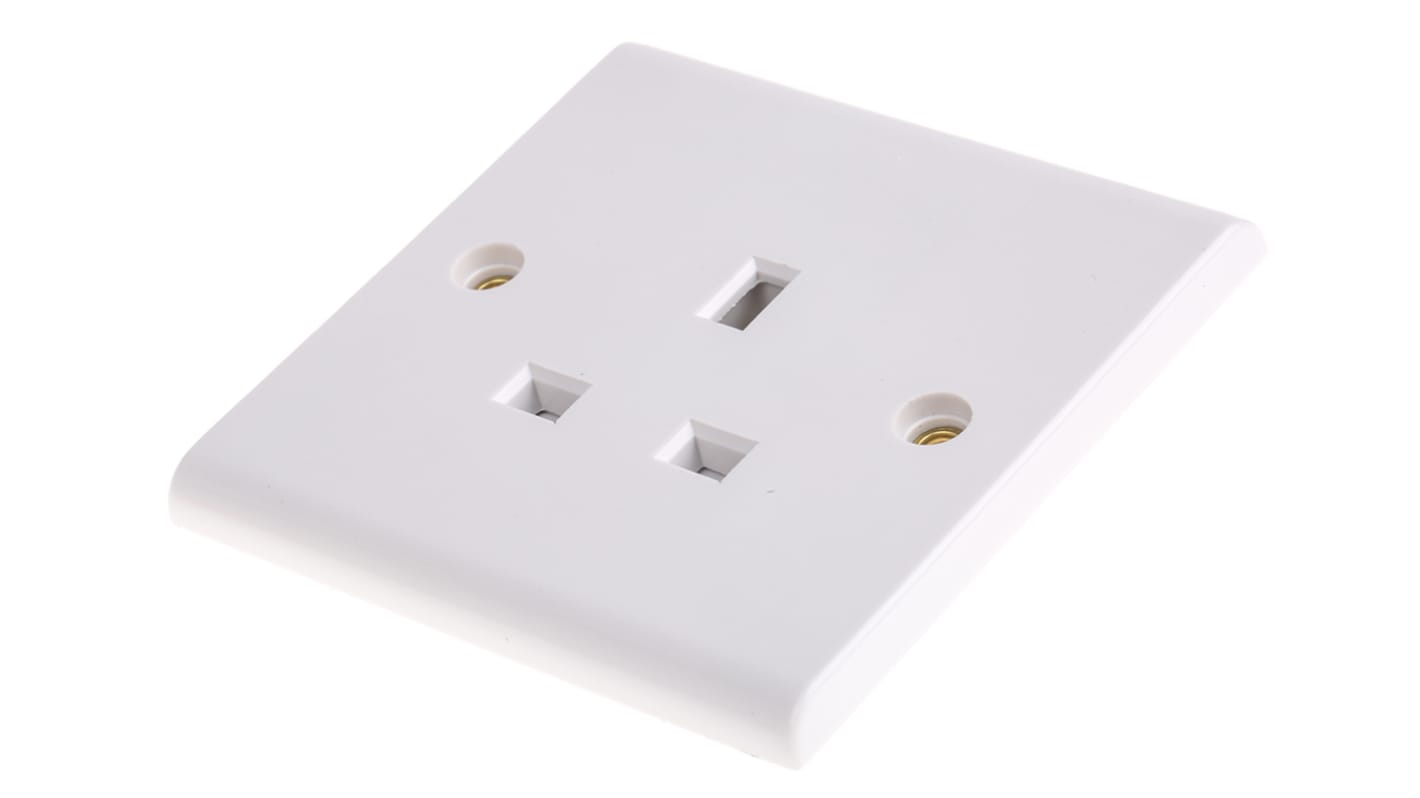

Deta Slimline 1 Gang Electrical Socket, 0 Poles, 13A, Type G - British, Indoor Use
- RS Stock No.:
- 776-7735
- Mfr. Part No.:
- S1206
- Brand:
- Deta
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 776-7735
- Mfr. Part No.:
- S1206
- Brand:
- Deta
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Deta | |
Number of Gangs | 1 | |
Switched | No | |
Socket Type | Type G - British | |
Indoor or Outdoor Use | Indoor | |
Mounting Style | Flush Mount | |
Current Rating | 13A | |
Voltage Rating | 230 V | |
Minimum Box Depth | 25mm | |
Overall Height | 86mm | |
Overall Width | 86mm | |
International Protection Rating | IP2X | |
Series | Slimline | |
Faceplate Mounting Type | Screwed | |
Faceplate Depth | 7mm | |
Fixing Standard | BS | |
Earth Terminal | Yes | |
Colour Family | White | |
Number of Poles | 0 | |
Select all | ||
---|---|---|
Brand Deta | ||
Number of Gangs 1 | ||
Switched No | ||
Socket Type Type G - British | ||
Indoor or Outdoor Use Indoor | ||
Mounting Style Flush Mount | ||
Current Rating 13A | ||
Voltage Rating 230 V | ||
Minimum Box Depth 25mm | ||
Overall Height 86mm | ||
Overall Width 86mm | ||
International Protection Rating IP2X | ||
Series Slimline | ||
Faceplate Mounting Type Screwed | ||
Faceplate Depth 7mm | ||
Fixing Standard BS | ||
Earth Terminal Yes | ||
Colour Family White | ||
Number of Poles 0 | ||
- COO (Country of Origin):
- CN
BS 13A Socket White
Part of the Deta Slimline range, these Socket Outlets come with 1 gang and 2 gang, with either single or double Switches, or Unswitched. These sockets have a unique shape, with clear white terminal markings and colour coded terminals for easy identification. These White Sockets also feature Funnel Terminals, making cable insertion extremely easy.
Unique Slim Profile with curved top and bottom edges
Concave Rockers
Only one size 4mm Screwdriver needed
Clear white markings and Colour coded terminals for easy identification
Funnel terminal for easy cable insertion
Top facing terminal screws
DP Switch Version
2 earth terminals on DP sockets
25 year guarantee
Concave Rockers
Only one size 4mm Screwdriver needed
Clear white markings and Colour coded terminals for easy identification
Funnel terminal for easy cable insertion
Top facing terminal screws
DP Switch Version
2 earth terminals on DP sockets
25 year guarantee
Standards
BS 1363 Part 2 : 1995
Deta White Plastic Moulded
