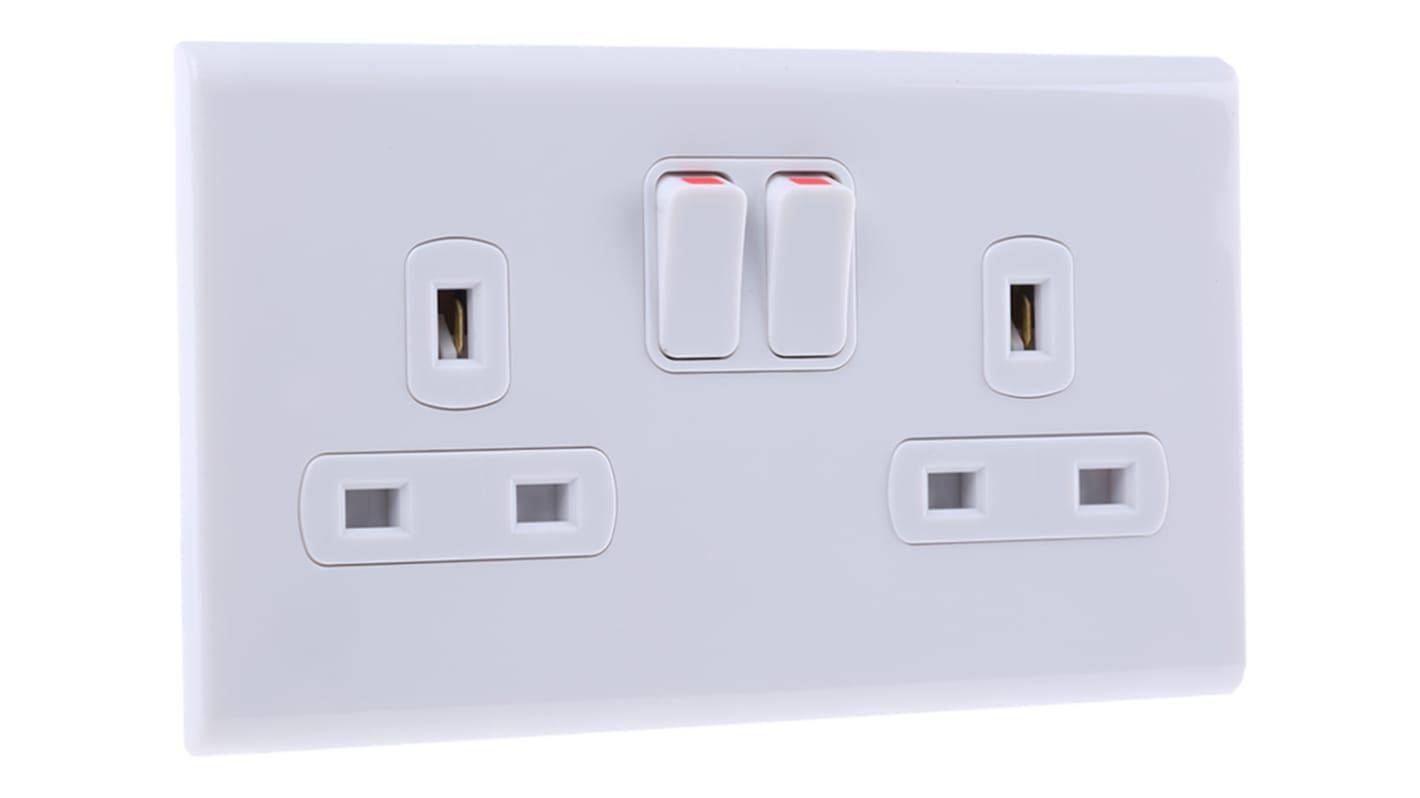

Deta Screwless Polycarbonate 2 Gang Plug Socket, 2 Poles, 13A, Type G - British, Indoor Use
- RS Stock No.:
- 777-0078
- Mfr. Part No.:
- 8632WH
- Brand:
- Deta
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 777-0078
- Mfr. Part No.:
- 8632WH
- Brand:
- Deta
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Deta | |
Number of Gangs | 2 | |
Switched | Yes | |
Indoor or Outdoor Use | Indoor | |
Socket Type | Type G - British | |
Mounting Style | Flush Mount | |
Current Rating | 13A | |
Voltage Rating | 230 V | |
Material | Polycarbonate | |
Minimum Box Depth | 35mm | |
Overall Height | 86mm | |
Overall Width | 146mm | |
International Protection Rating | IP2X | |
Series | Screwless Polycarbonate | |
Faceplate Depth | 7mm | |
Number of Poles | 2 | |
Colour Family | White | |
Fixing Standard | BS | |
Earth Terminal | Yes | |
Switch Style | Rocker | |
Faceplate Mounting Type | Screwless | |
Select all | ||
---|---|---|
Brand Deta | ||
Number of Gangs 2 | ||
Switched Yes | ||
Indoor or Outdoor Use Indoor | ||
Socket Type Type G - British | ||
Mounting Style Flush Mount | ||
Current Rating 13A | ||
Voltage Rating 230 V | ||
Material Polycarbonate | ||
Minimum Box Depth 35mm | ||
Overall Height 86mm | ||
Overall Width 146mm | ||
International Protection Rating IP2X | ||
Series Screwless Polycarbonate | ||
Faceplate Depth 7mm | ||
Number of Poles 2 | ||
Colour Family White | ||
Fixing Standard BS | ||
Earth Terminal Yes | ||
Switch Style Rocker | ||
Faceplate Mounting Type Screwless | ||
- COO (Country of Origin):
- CN
Polycarbonate Switched Screwless Sockets
Part of the Deta Screwless range, these Polycarbonate Sockets come in either one or two Gang. These Screwless Sockets are elegantly styled and have a unique shape, with concealed screws. These Sockets can be fully installed and tested before the addition of the screwless frontplates, which simply but securely clip onto the mounting system. The Deta Sockets have clear white terminal markings and colour coded terminals for easy identification. This Polycarbonate, screwless Sockets also feature Funnel Terminals, making cable insertion extremely easy.
Top facing terminal screws
Clear white markings and Colour coded terminals for easy identification
2 earth terminals on 2 gang Socket
Recessed earth bar
Funnel terminal for easy cable insertion
Captive and backed out terminals
Only one size 4mm Screwdriver needed
25 year guarantee
Clear white markings and Colour coded terminals for easy identification
2 earth terminals on 2 gang Socket
Recessed earth bar
Funnel terminal for easy cable insertion
Captive and backed out terminals
Only one size 4mm Screwdriver needed
25 year guarantee
Standards
BS 1363:Part 2
