Wachendorff HD67xxx Series Gateway Server for Use with EtherCAT and PROFINET, Digital, Digital
- RS Stock No.:
- 267-5608
- Mfr. Part No.:
- HD67E23-A1
- Brand:
- Wachendorff
Subtotal (1 unit)*
£526.15
(exc. VAT)
£631.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £526.15 |
*price indicative
- RS Stock No.:
- 267-5608
- Mfr. Part No.:
- HD67E23-A1
- Brand:
- Wachendorff
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wachendorff | |
Accessory Type | GateWay Unit | |
Range | Gateway | |
Series | HD67xxx | |
Input Type | Digital | |
Output Type | Digital | |
For Use With | EtherCAT and PROFINET | |
Dimensions | 23 x 107 x 120 mm | |
Select all | ||
---|---|---|
Brand Wachendorff | ||
Accessory Type GateWay Unit | ||
Range Gateway | ||
Series HD67xxx | ||
Input Type Digital | ||
Output Type Digital | ||
For Use With EtherCAT and PROFINET | ||
Dimensions 23 x 107 x 120 mm | ||
- COO (Country of Origin):
- IT

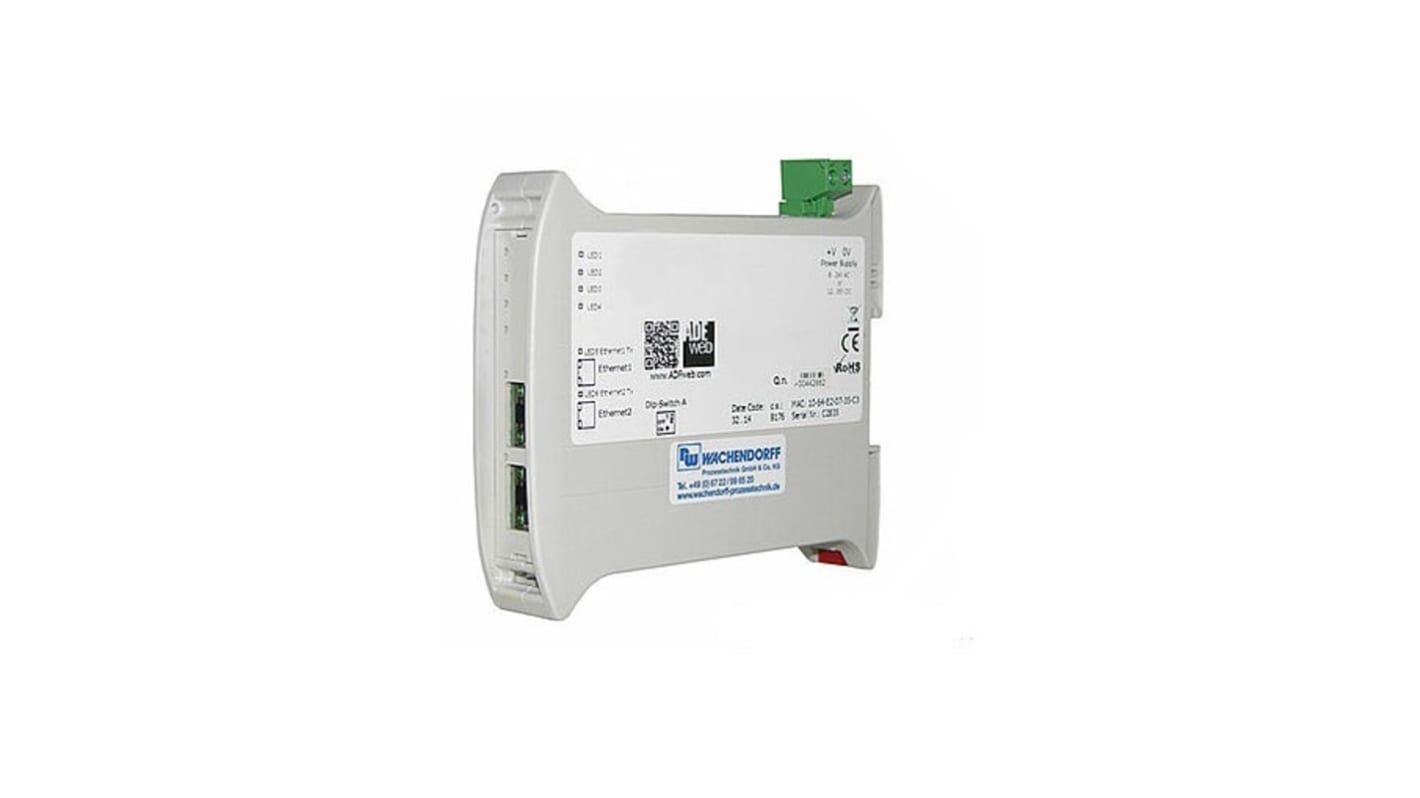

The Wachendorff EtherCAT Server (Slave) / Profinet Slave Gateway that makes it possible to connect an EtherCAT client (master) such as a Beckhoff PLC, OMRON PLC to a Profinet master example PLC, SCADA system in order to exchange information between the networks. On the EtherCAT side there are two Ethernet ports for EtherCAT IN and OUT connections they enable line and ring topologies for simple redundant communication. Simple and fast integration of the EtherCAT server gateways in the master configuration thanks to the ESI file created with the software SW67E23.
Bidirectional data exchange between EtherCAT and Profinet
Easy integration by creating an ESI file
Galvanic isolation
Transmission of the configuration via Ethernet
Easy integration by creating an ESI file
Galvanic isolation
Transmission of the configuration via Ethernet
